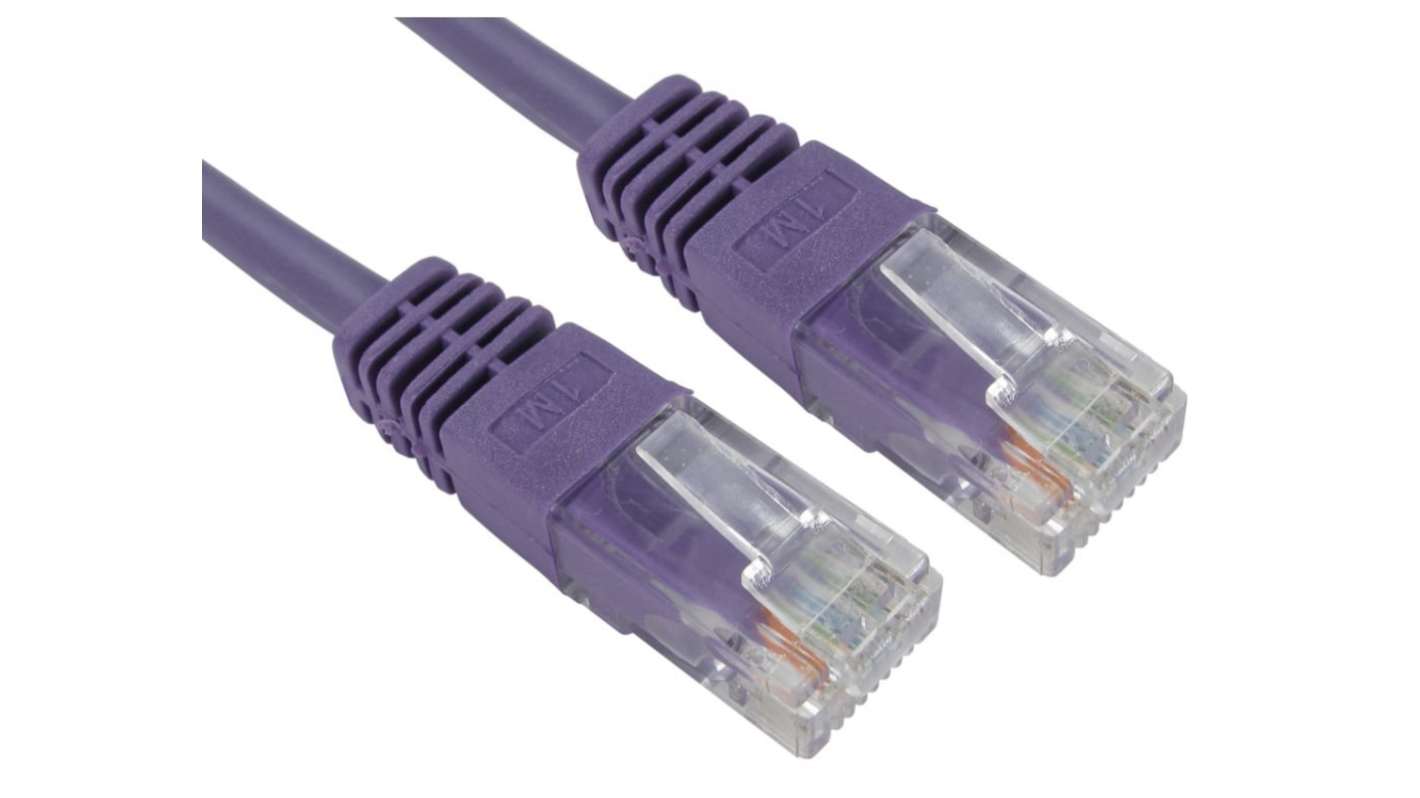

RS PRO, 10m Cat5e, Violet RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 286-3660
- Brand:
- RS PRO
Subtotal (1 unit)*
£7.69
(exc. VAT)
£9.23
(inc. VAT)
FREE delivery for orders over £50.00
- 29 unit(s) ready to ship
Units | Per unit |
---|---|
1 + | £7.69 |
*price indicative
- RS Stock No.:
- 286-3660
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
LAN Category | Cat5e | |
Length | 10m | |
Terminated/Unterminated | Terminated | |
Shield Type | UTP | |
Connector 1 Orientation | Straight | |
Connector 1 Gender | Male | |
Connector 1 | RJ45 | |
Connector 1 Number of Contacts | 8 | |
Connector 2 Number of Contacts | 8 | |
Connector 2 | RJ45 | |
Connector 2 Gender | Male | |
Shielded/Unshielded | Unshielded | |
Connector 2 Orientation | Straight | |
Sheath Colour | Violet | |
Outer Sheath Material | PVC | |
Wiring Configuration | Straight Through | |
Fire Behaviour | CM Rated | |
Core Strands | 7/0.15 | |
Standards Met | C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | |
American Wire Gauge | 26AWG | |
Outer Diameter | 4.6mm | |
Voltage Rating | 80V | |
Number of Strands | 8 | |
Cross Sectional Area | 0.126 to 0.158mm² | |
Capacitance | 5.6nF/100m | |
Conductor Strand Type | Stranded | |
Cable Shape | Round | |
Current Rating | 960mA | |
Select all | ||
---|---|---|
Brand RS PRO | ||
LAN Category Cat5e | ||
Length 10m | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Male | ||
Connector 1 RJ45 | ||
Connector 1 Number of Contacts 8 | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 RJ45 | ||
Connector 2 Gender Male | ||
Shielded/Unshielded Unshielded | ||
Connector 2 Orientation Straight | ||
Sheath Colour Violet | ||
Outer Sheath Material PVC | ||
Wiring Configuration Straight Through | ||
Fire Behaviour CM Rated | ||
Core Strands 7/0.15 | ||
Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | ||
American Wire Gauge 26AWG | ||
Outer Diameter 4.6mm | ||
Voltage Rating 80V | ||
Number of Strands 8 | ||
Cross Sectional Area 0.126 to 0.158mm² | ||
Capacitance 5.6nF/100m | ||
Conductor Strand Type Stranded | ||
Cable Shape Round | ||
Current Rating 960mA | ||
- COO (Country of Origin):
- CN
RS PRO Ethernet Cable, Cat5e Patch Cable
Features and Benefits
Cat5e standard supports data transfer speeds up to 1 Gbps, making it suitable for most network requirements
Moulded connectors provide durability and strain relief, extending the cable's lifespan
26 AWG bare copper cores offer robust performance and conductivity
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 standards met for assured quality and compatibility
PoE compatible, allowing power and data transmission over a single cable
Applications
Ethernet connections
Residential and commercial networking
Data centres
Additional Information
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Fire Behaviour: CM Rated
Voltage Rating: 80 V
Length: 10 m
Connector Type: RJ45 Male to Male
