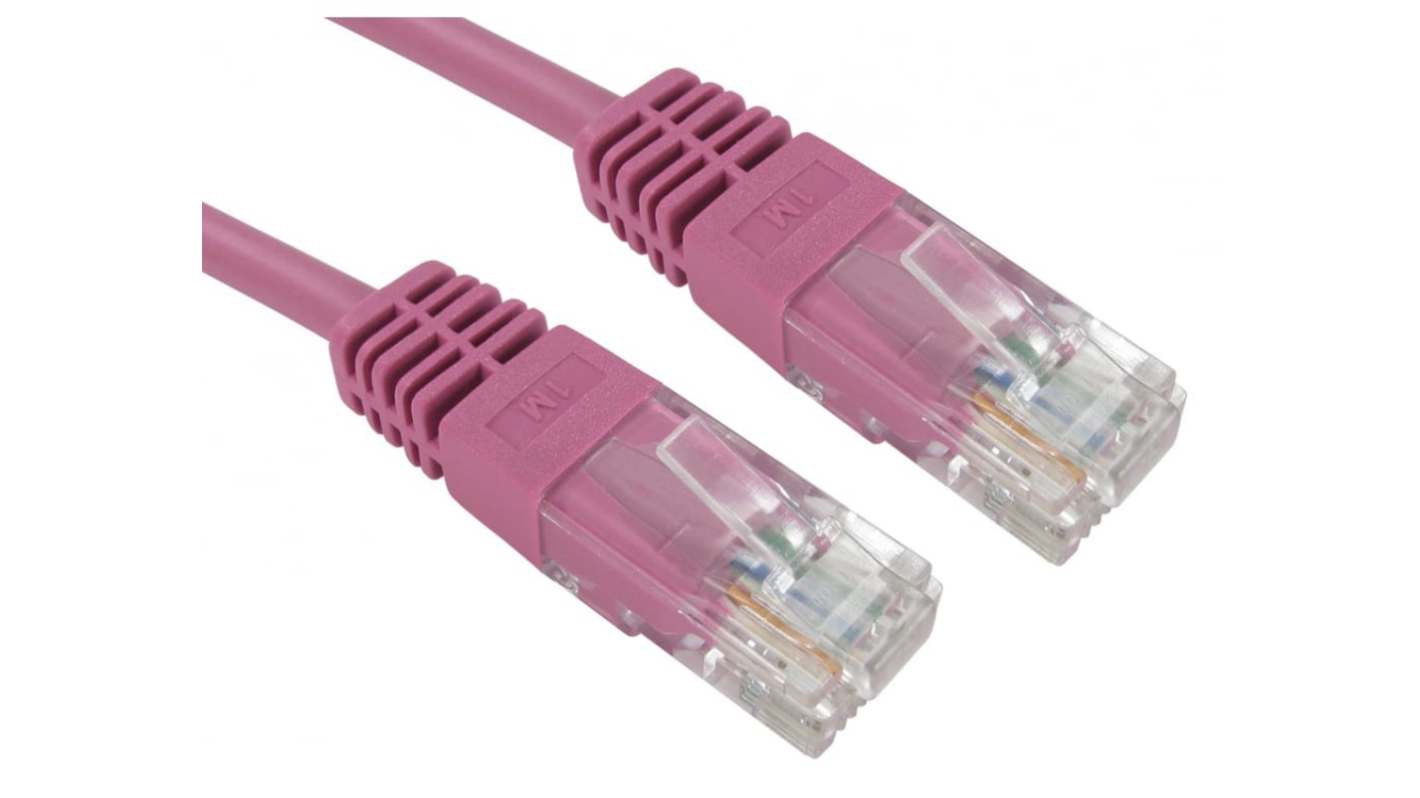

RS PRO, 5m Cat5e, Pink RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3627
Brand:: RS PRO

RS PRO, 5m Cat5e, Pink RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£5.02

(exc. VAT)

£6.02

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 28 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£5.02

*price indicative

RS Stock No.:: 286-3627
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat5e
	Length	5m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Number of Contacts	8
	Connector 1 Gender	Male
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Shielded/Unshielded	Unshielded
	Connector 2 Orientation	Straight
	Outer Sheath Material	PVC
	Sheath Colour	Pink
	Wiring Configuration	Straight Through
	Core Strands	7/0.15
	Fire Behaviour	CM Rated
	Conductor Strand Type	Stranded
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.126 to 0.158mm²
	Current Rating	960mA
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Cable Shape	Round
	Number of Strands	8
	Voltage Rating	80V
	Outer Diameter	4.6mm
	American Wire Gauge	26AWG

	Select all
	Brand RS PRO
	LAN Category Cat5e
	Length 5m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Number of Contacts 8
	Connector 1 Gender Male
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Shielded/Unshielded Unshielded
	Connector 2 Orientation Straight
	Outer Sheath Material PVC
	Sheath Colour Pink
	Wiring Configuration Straight Through
	Core Strands 7/0.15
	Fire Behaviour CM Rated
	Conductor Strand Type Stranded
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.126 to 0.158mm²
	Current Rating 960mA
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Cable Shape Round
	Number of Strands 8
	Voltage Rating 80V
	Outer Diameter 4.6mm
	American Wire Gauge 26AWG

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Patch Cable

This Ethernet cable is designed for high signal integrity and is commonly used in computer networks such as Ethernet. The Cat5e patch cable offers reliable performance with its twisted pair design, providing noise rejection without the need for shielding.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures effective noise rejection
Cat5e standard supports high-speed data transfer
Moulded connectors provide durability and strain relief
26 AWG bare copper cores enhance conductivity and performance
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 standards guarantee compatibility and reliability
PoE compatible for powering devices over Ethernet

Applications

Ideal for use in computer networks, including Ethernet connections in offices, data centres, and home networks

Additional Information

Meets ISO/IEC 11801 and TIA/EIA 568B.2 standards for assured quality and performance
CM rated for fire safety compliance
