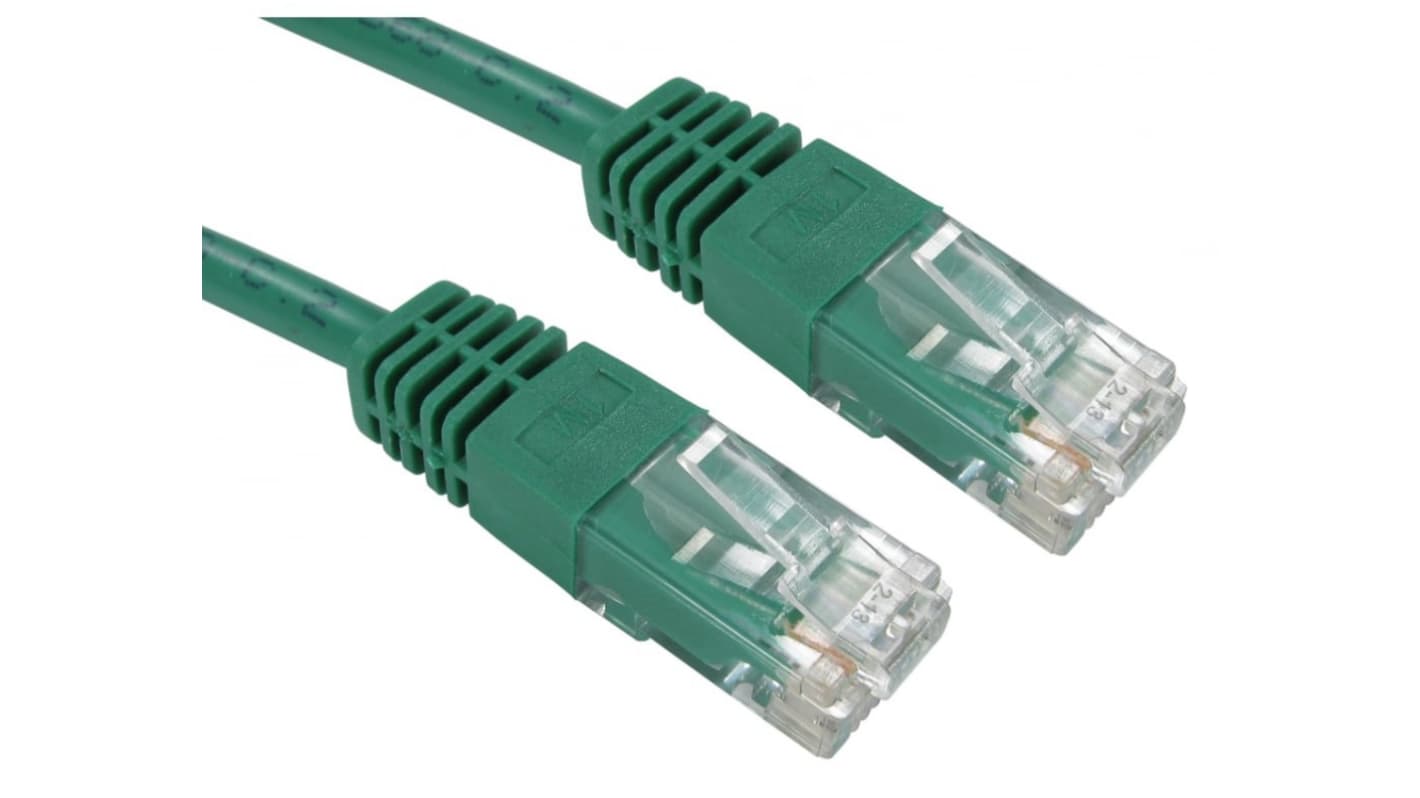

RS PRO, 5m Cat5e, Green RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 286-3625
- Brand:
- RS PRO
Subtotal (1 unit)*
£4.77
(exc. VAT)
£5.72
(inc. VAT)
FREE delivery for orders over £50.00
- 96 unit(s) ready to ship
- Plus 69 unit(s) ready to ship from another location
- Plus 45 unit(s) shipping from 13 November 2025
Units | Per unit |
---|---|
1 + | £4.77 |
*price indicative
- RS Stock No.:
- 286-3625
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
LAN Category | Cat5e | |
Length | 5m | |
Terminated/Unterminated | Terminated | |
Shield Type | UTP | |
Connector 1 Gender | Male | |
Connector 1 Number of Contacts | 8 | |
Connector 1 Orientation | Straight | |
Connector 1 | RJ45 | |
Connector 2 | RJ45 | |
Connector 2 Number of Contacts | 8 | |
Connector 2 Gender | Male | |
Shielded/Unshielded | Unshielded | |
Connector 2 Orientation | Straight | |
Outer Sheath Material | PVC | |
Sheath Colour | Green | |
Wiring Configuration | Straight Through | |
Core Strands | 7/0.15 | |
Fire Behaviour | CM Rated | |
Current Rating | 960mA | |
Standards Met | C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | |
Cable Shape | Round | |
Conductor Strand Type | Stranded | |
Capacitance | 5.6nF/100m | |
Cross Sectional Area | 0.126 to 0.158mm² | |
Voltage Rating | 80V | |
Number of Strands | 8 | |
Outer Diameter | 4.6mm | |
American Wire Gauge | 26AWG | |
Select all | ||
---|---|---|
Brand RS PRO | ||
LAN Category Cat5e | ||
Length 5m | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Straight | ||
Connector 1 RJ45 | ||
Connector 2 RJ45 | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 Gender Male | ||
Shielded/Unshielded Unshielded | ||
Connector 2 Orientation Straight | ||
Outer Sheath Material PVC | ||
Sheath Colour Green | ||
Wiring Configuration Straight Through | ||
Core Strands 7/0.15 | ||
Fire Behaviour CM Rated | ||
Current Rating 960mA | ||
Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | ||
Cable Shape Round | ||
Conductor Strand Type Stranded | ||
Capacitance 5.6nF/100m | ||
Cross Sectional Area 0.126 to 0.158mm² | ||
Voltage Rating 80V | ||
Number of Strands 8 | ||
Outer Diameter 4.6mm | ||
American Wire Gauge 26AWG | ||
- COO (Country of Origin):
- CN
RS PRO Ethernet Cable, Cat5e Patch Cable
Features and Benefits
Cat5e standard supports fast data transfer rates, enhancing network performance
Moulded connectors provide durability and secure connections
26 AWG bare copper cores offer robust conductivity and flexibility
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 compliance guarantees compatibility with industry standards
PoE compatible, allowing power and data transmission over a single cable
Applications
Ethernet connections
Home and office networking
Additional Information
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Length: 5 m
Connector Type: RJ45 Male to Male
