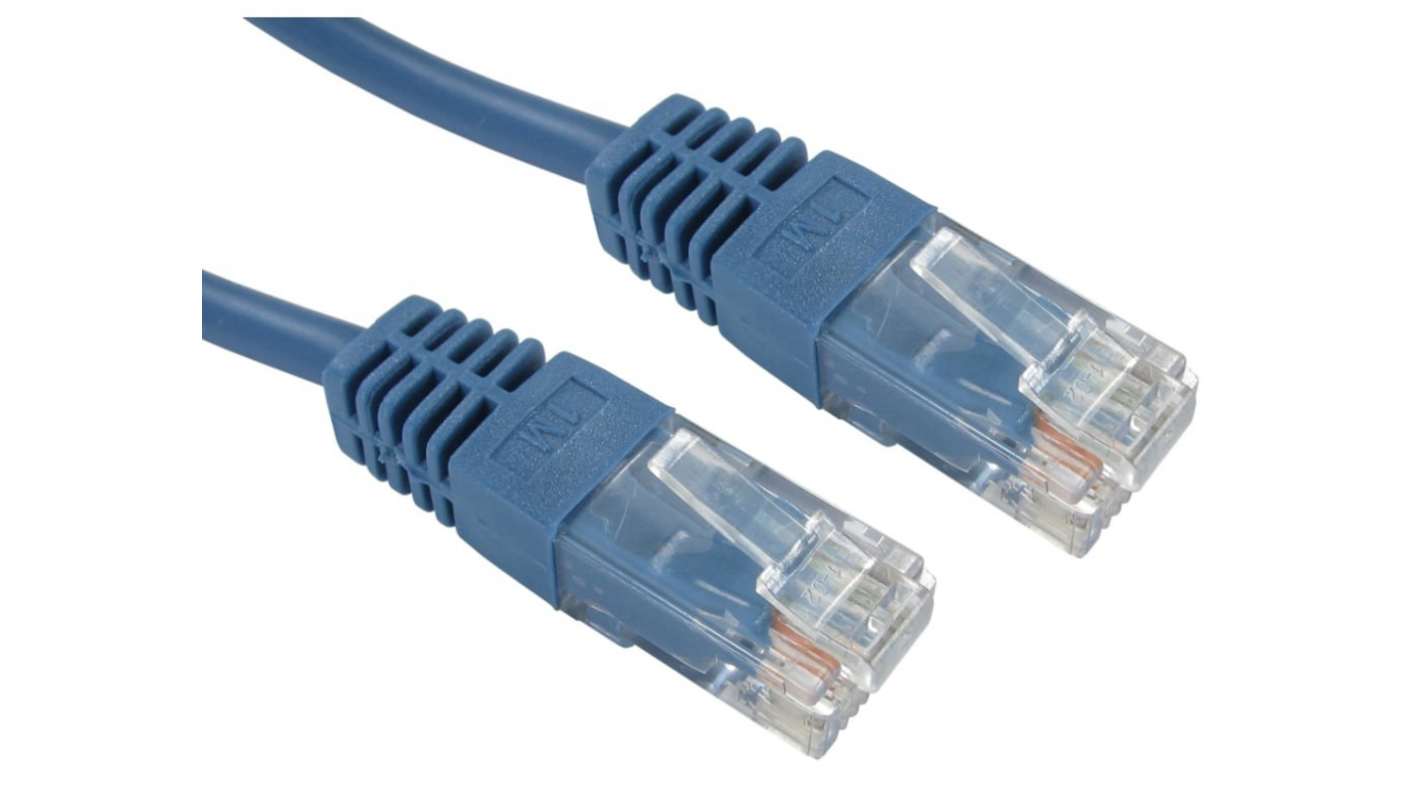

RS PRO, 1m Cat5e, Blue RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3578
Brand:: RS PRO

RS PRO, 1m Cat5e, Blue RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£4.84

(exc. VAT)

£5.81

(inc. VAT)

Stock information currently inaccessible

Units	Per unit
1 +	£4.84

*price indicative

RS PRO Cable Ties

From electrical to industrial applications, RS Pro offers a wide selection of cable ties to suit every need. Durable, reliable, and available in multiple sizes and materials, trusted by professionals across industries.

Shop here

RS Stock No.:: 286-3578
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat5e
	Length	1m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 1 Number of Contacts	8
	Connector 1 Gender	Male
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Sheath Colour	Blue
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Core Strands	7/0.15
	Fire Behaviour	CM Rated
	Current Rating	960mA
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Cable Shape	Round
	Number of Strands	8
	Cross Sectional Area	0.126 to 0.158mm²
	Voltage Rating	80V
	Capacitance	5.6nF/100m
	Conductor Strand Type	Stranded
	Outer Diameter	4.6mm
	American Wire Gauge	26AWG

	Select all
	Brand RS PRO
	LAN Category Cat5e
	Length 1m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 1 Number of Contacts 8
	Connector 1 Gender Male
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Sheath Colour Blue
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Core Strands 7/0.15
	Fire Behaviour CM Rated
	Current Rating 960mA
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Cable Shape Round
	Number of Strands 8
	Cross Sectional Area 0.126 to 0.158mm²
	Voltage Rating 80V
	Capacitance 5.6nF/100m
	Conductor Strand Type Stranded
	Outer Diameter 4.6mm
	American Wire Gauge 26AWG

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Patch Cable

This RS PRO Ethernet Cable is a high-quality Cat5e patch cable designed for reliable and efficient data transmission in computer networks. Ideal for Ethernet applications, it offers excellent noise rejection and is suitable for both home and office environments.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures minimal interference and high signal integrity
Cat5e standard supports data transfer speeds up to 1 Gbps, making it suitable for most network applications
Moulded connectors provide durability and strain relief, extending the cable's lifespan
26 AWG bare copper cores offer excellent conductivity and performance
CM (UL) and ISO/IEC 11801 compliance ensures adherence to international standards
PoE compatible, allowing for power and data transmission over a single cable

Applications

Computer networks
Ethernet connections
Home and office networking

Additional Information

Sheath Colour: Blue
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Standards Met: C (UL)

CM (UL)

ISO/IEC 11801

TIA/EIA 568B.2
Length: 1 m
Connector Type: RJ45 Male to Male
