RS PRO, 0.2m Cat5e, Green RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3547
Brand:: RS PRO

RS PRO, 0.2m Cat5e, Green RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£3.19

(exc. VAT)

£3.83

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 9 unit(s) shipping from 29 December 2025
Plus 120 unit(s) shipping from 29 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£3.19

*price indicative

RS PRO Cable Ties

From electrical to industrial applications, RS Pro offers a wide selection of cable ties to suit every need. Durable, reliable, and available in multiple sizes and materials, trusted by professionals across industries.

Shop here

RS Stock No.:: 286-3547
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat5e
	Length	0.2m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Gender	Male
	Connector 1 Number of Contacts	8
	Connector 1	RJ45
	Connector 1 Orientation	Straight
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	PVC
	Sheath Colour	Green
	Wiring Configuration	Straight Through
	Core Strands	7/0.15
	Fire Behaviour	CM Rated
	Cable Shape	Round
	Capacitance	5.6nF/100m
	Outer Diameter	4.6mm
	American Wire Gauge	26AWG
	Voltage Rating	80V
	Cross Sectional Area	0.126 to 0.158mm²
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Current Rating	960mA
	Conductor Strand Type	Stranded
	Number of Strands	8

	Select all
	Brand RS PRO
	LAN Category Cat5e
	Length 0.2m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Gender Male
	Connector 1 Number of Contacts 8
	Connector 1 RJ45
	Connector 1 Orientation Straight
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Outer Sheath Material PVC
	Sheath Colour Green
	Wiring Configuration Straight Through
	Core Strands 7/0.15
	Fire Behaviour CM Rated
	Cable Shape Round
	Capacitance 5.6nF/100m
	Outer Diameter 4.6mm
	American Wire Gauge 26AWG
	Voltage Rating 80V
	Cross Sectional Area 0.126 to 0.158mm²
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Current Rating 960mA
	Conductor Strand Type Stranded
	Number of Strands 8

COO (Country of Origin):: CN

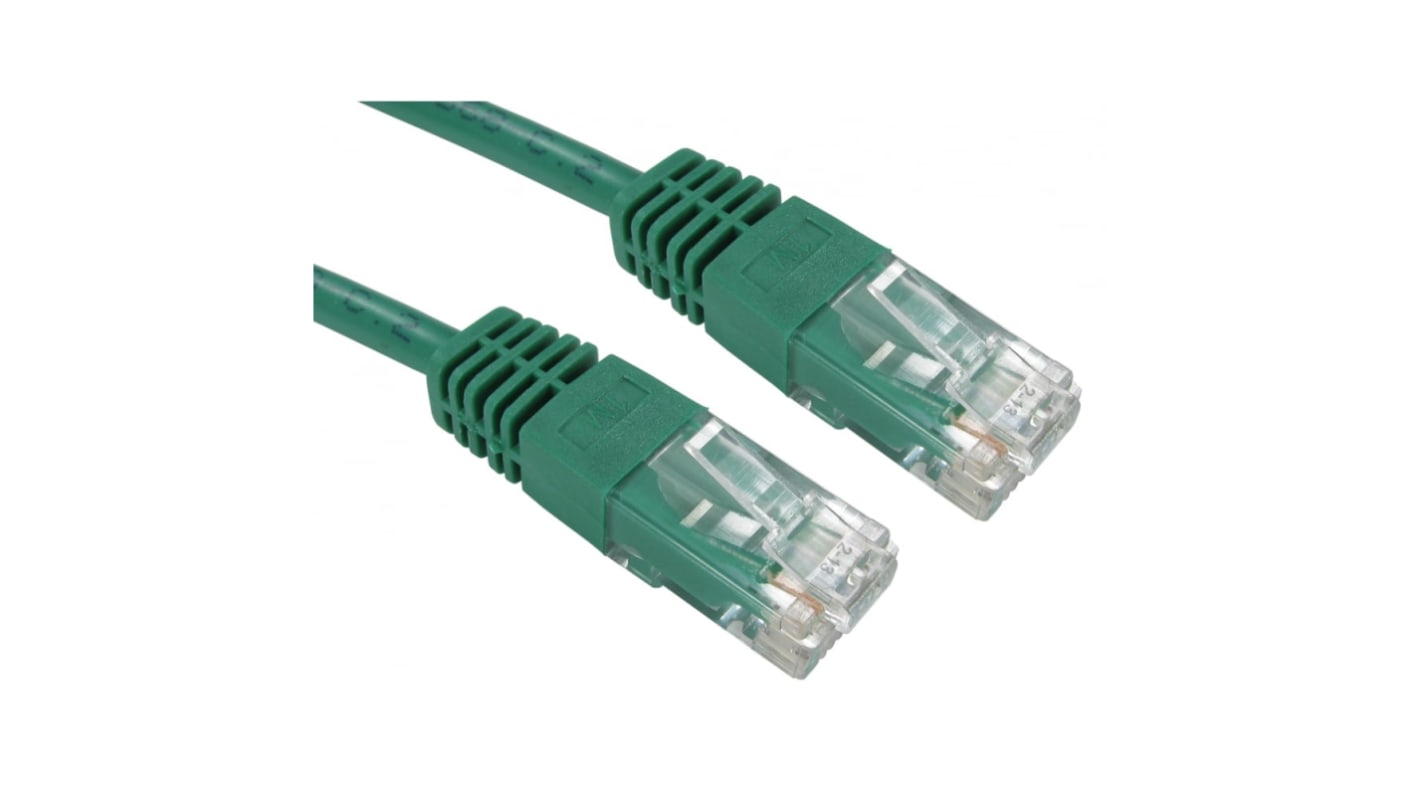

RS PRO Ethernet Cable, Cat5e Patch Cable

This RS PRO Ethernet Cable is a high-quality Cat5e patch cable designed for reliable and efficient data transmission in computer networks. Ideal for Ethernet applications, it offers excellent noise rejection and is suitable for both home and office environments.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures minimal interference and high signal integrity
Cat5e rating supports fast data transfer speeds, making it suitable for most network applications
Moulded connectors provide durability and secure connections
26 AWG bare copper cores enhance conductivity and performance
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 standards compliance guarantees compatibility with industry requirements
PoE compatible, allowing for power and data transmission over a single cable

Applications

Computer networks
Ethernet connections
Home and office networking

Additional Information

Sheath Colour: Green
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Fire Behaviour: CM Rated
Voltage Rating: 80 V
Length: 0.2 m
Connector Type: RJ45, Male to Male
