RS PRO, 1.5m Cat5e, Grey RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3506
Brand:: RS PRO

RS PRO, 1.5m Cat5e, Grey RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£4.26

(exc. VAT)

£5.11

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

108 unit(s) ready to ship
Plus 15 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£4.26

*price indicative

RS Stock No.:: 286-3506
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	1.5m
	LAN Category	Cat5e
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 2	RJ45
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Sheath Colour	Grey
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.10
	Conductor Strand Type	Stranded
	Voltage Rating	60V
	Current Rating	0.8A
	Standards Met	C (UL), CM LSOH, CSA LL2047
	Cable Shape	Round
	Number of Strands	8
	American Wire Gauge	30AWG
	Outer Diameter	5.4mm
	Capacitance	≤5.6nFnF/100m
	Cross Sectional Area	0.0549mm²

	Select all
	Brand RS PRO
	Length 1.5m
	LAN Category Cat5e
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 2 RJ45
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Sheath Colour Grey
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.10
	Conductor Strand Type Stranded
	Voltage Rating 60V
	Current Rating 0.8A
	Standards Met C (UL), CM LSOH, CSA LL2047
	Cable Shape Round
	Number of Strands 8
	American Wire Gauge 30AWG
	Outer Diameter 5.4mm
	Capacitance ≤5.6nFnF/100m
	Cross Sectional Area 0.0549mm²

COO (Country of Origin):: CN

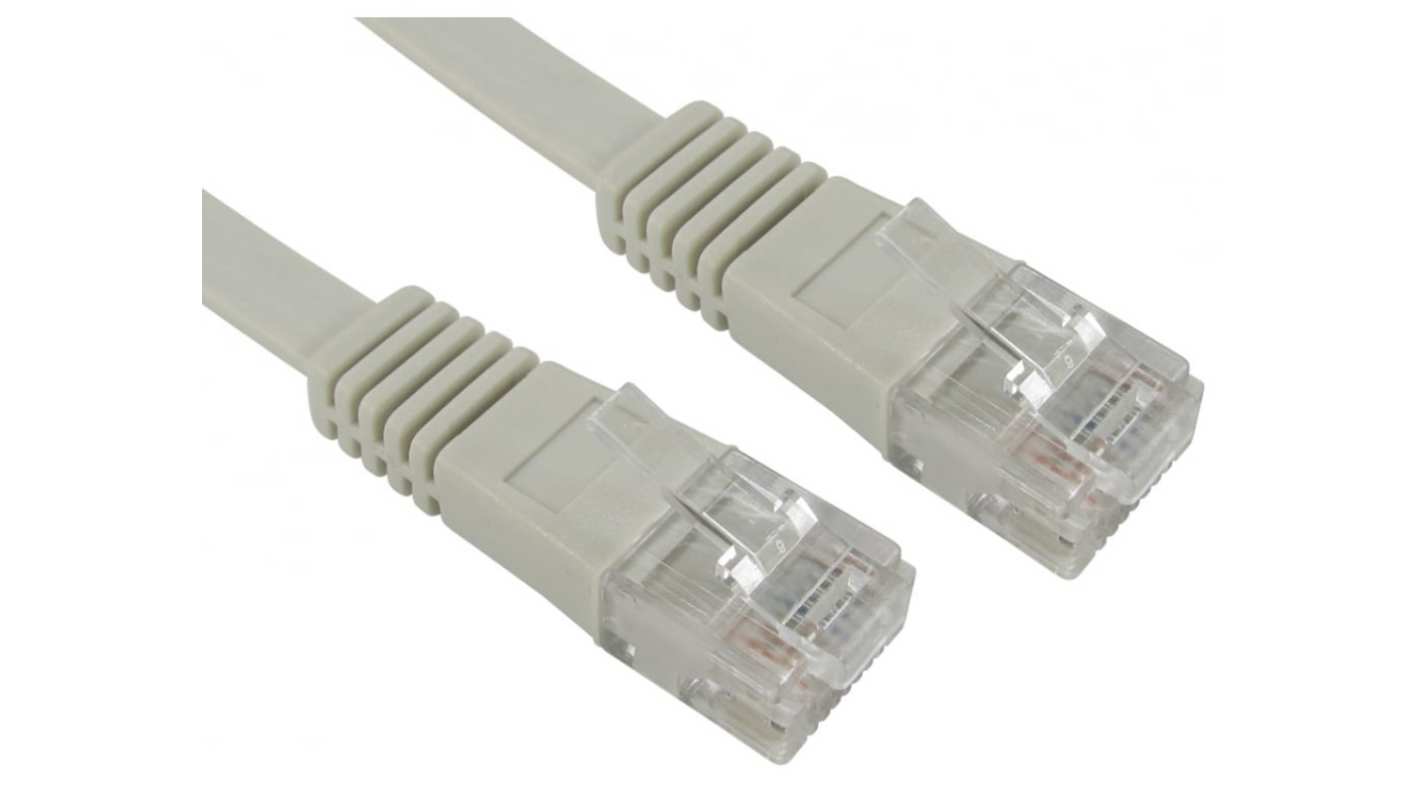

RS PRO Ethernet Cable, Cat5e Flat Patch Cable

This RS PRO Ethernet Cable is a high-quality Cat5e flat patch cable designed for reliable and efficient data transmission. Ideal for computer networks, it offers a practical solution for installations under carpets and flooring, ensuring minimal disruption and maximum performance.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures noise rejection and reliable performance
Cat5e classification supports high-speed data transfer for network efficiency
Moulded construction enhances durability and longevity
30 AWG bare copper cores provide excellent conductivity
C(UL) CM LSOH rating ensures compliance with safety standards

Applications

Computer networks
Ethernet connections
Office and home networking

Additional Information

Standards Met: C (UL)

CM LSOH

CSA LL2047
Connector Type: RJ45, Male to Male
Length: 1.5 m
