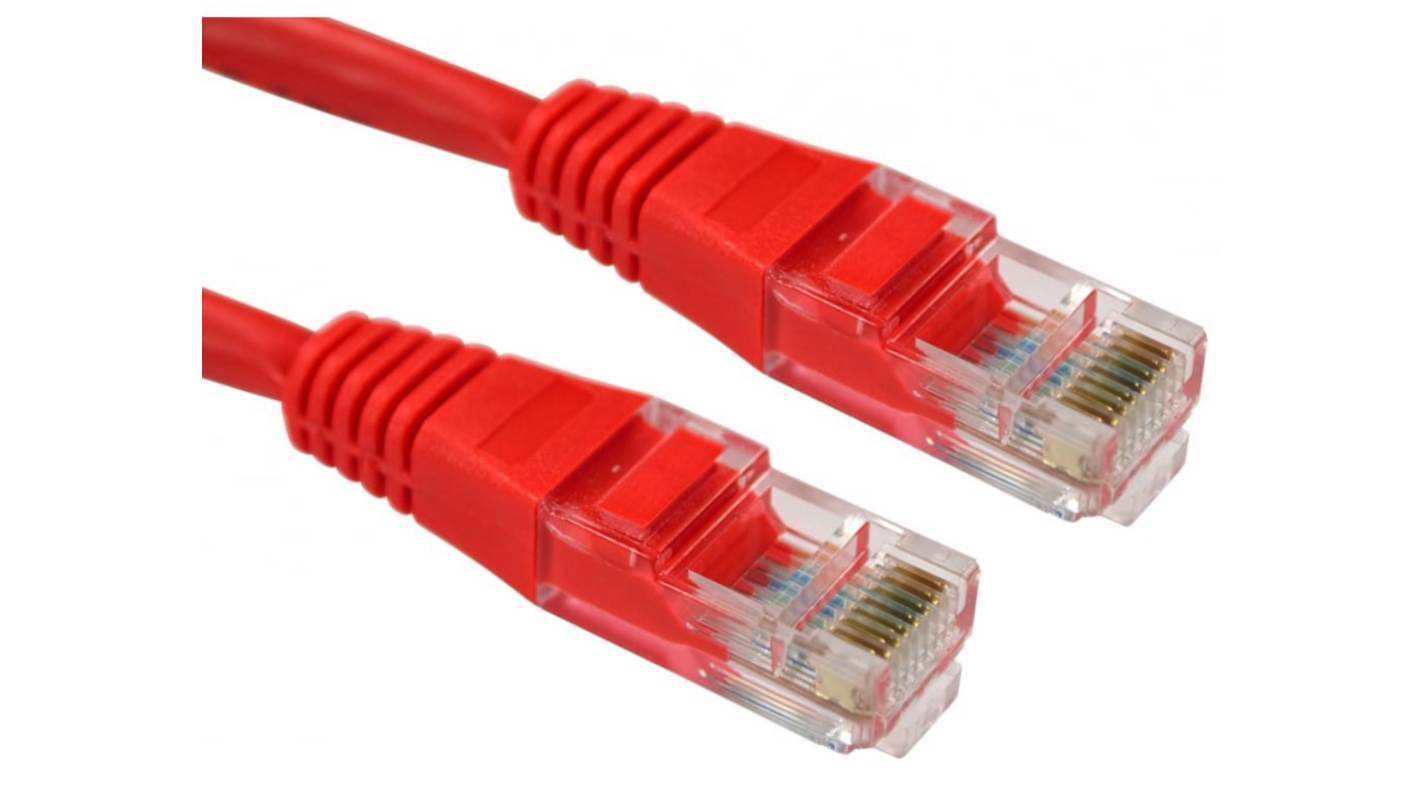

RS PRO, 6m Cat5e, Red RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 286-3469
- Brand:
- RS PRO
Subtotal (1 unit)*
£7.18
(exc. VAT)
£8.62
(inc. VAT)
FREE delivery for orders over £50.00
- 9 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Units | Per unit |
---|---|
1 + | £7.18 |
*price indicative
- RS Stock No.:
- 286-3469
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
LAN Category | Cat5e | |
Length | 6m | |
Terminated/Unterminated | Terminated | |
Shield Type | UTP | |
Connector 1 Number of Contacts | 8 | |
Connector 1 Orientation | Straight | |
Connector 1 | RJ45 | |
Connector 1 Gender | Male | |
Connector 2 Number of Contacts | 8 | |
Connector 2 | RJ45 | |
Connector 2 Gender | Male | |
Connector 2 Orientation | Straight | |
Shielded/Unshielded | Unshielded | |
Outer Sheath Material | PVC | |
Sheath Colour | Red | |
Wiring Configuration | Straight Through | |
Core Strands | 7/0.196 | |
American Wire Gauge | 24AWG | |
Outer Diameter | 5.4mm | |
Cable Shape | Round | |
Standards Met | UL REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2 | |
Number of Strands | 8 | |
Cross Sectional Area | 0.1645mm² | |
Capacitance | ≤5.6nFnF/100m | |
Voltage Rating | 300 | |
Current Rating | 2.8A | |
Select all | ||
---|---|---|
Brand RS PRO | ||
LAN Category Cat5e | ||
Length 6m | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Straight | ||
Connector 1 RJ45 | ||
Connector 1 Gender Male | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 RJ45 | ||
Connector 2 Gender Male | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Outer Sheath Material PVC | ||
Sheath Colour Red | ||
Wiring Configuration Straight Through | ||
Core Strands 7/0.196 | ||
American Wire Gauge 24AWG | ||
Outer Diameter 5.4mm | ||
Cable Shape Round | ||
Standards Met UL REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.2 | ||
Number of Strands 8 | ||
Cross Sectional Area 0.1645mm² | ||
Capacitance ≤5.6nFnF/100m | ||
Voltage Rating 300 | ||
Current Rating 2.8A | ||
- COO (Country of Origin):
- CN
RS PRO CAT 5E UTP PVC Patch Lead Ethernet Cable
Features and Benefits:
Designed with 100% full copper conductors and gold plated contacts, these cables ensure excellent conductivity, minimising signal loss and offering superior data transmission speeds to ensure stable and fast connections and reducing the chance of signal interruption or degradation
In addition to this, the UTP (Unshielded Twisted Pair) construction provides a reduction in electromagnetic interference while still offering a flexible and lightweight cable thats ideal for high-density installations and tight spaces
The durable injection moulded PVC jacket makes the cable easy to install, protecting the cable inner against physical damage and helping it withstand everyday wear and tear including protection from shock and vibration
This CAT 5E cable is perfect for everyday networking tasks like data transfer, video streaming and online gaming, supporting speeds up to 10/100 Mbps
These cables are available in a wide variety of colours and lengths so that they are versatile for any environment, from home offices to large scale commercial and industrial network installations
Applications:
