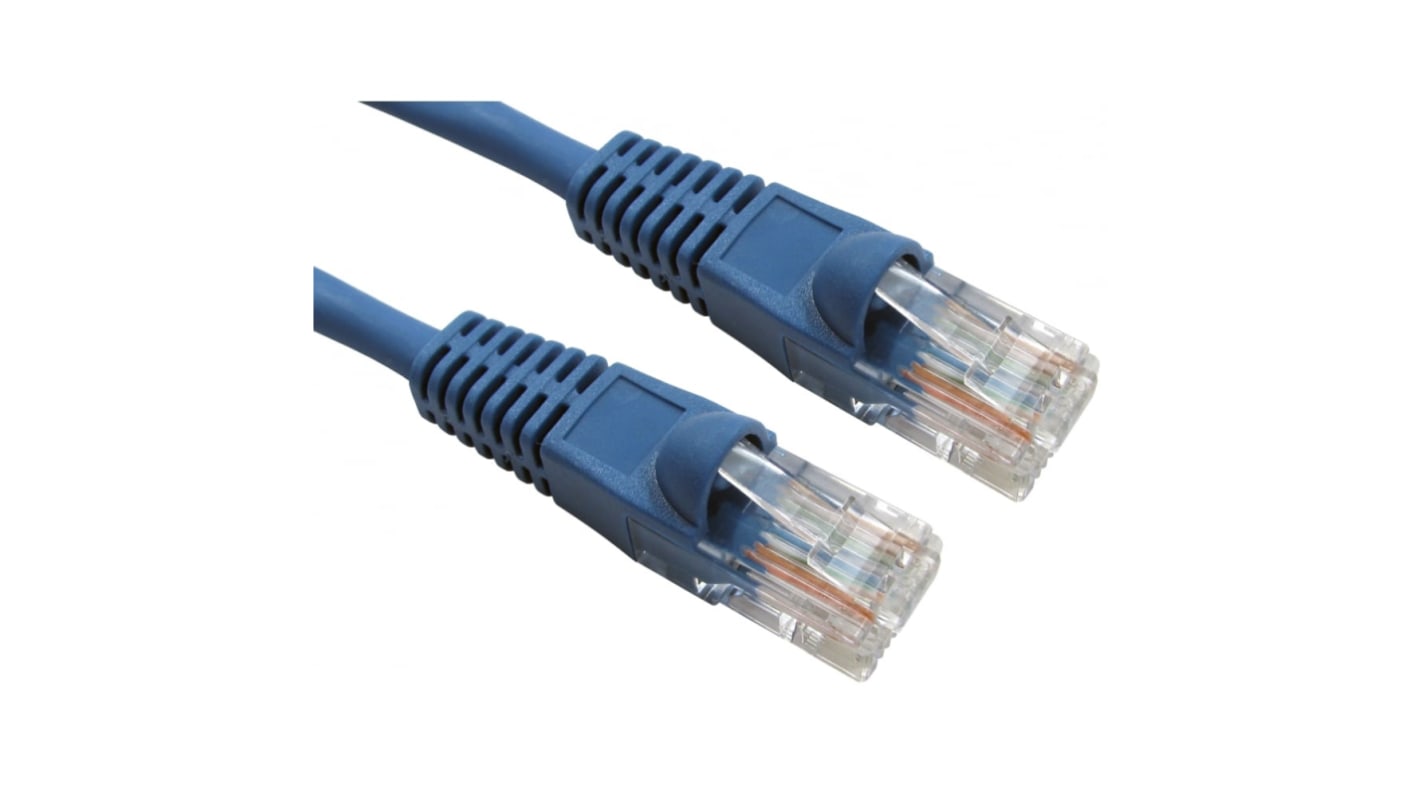

RS PRO, 20m Cat6, Blue RJ45 to Male RJ45 Male, UTP Unshielded, Terminated LSZH Sheath

RS Stock No.:: 286-3208
Brand:: RS PRO

RS PRO, 20m Cat6, Blue RJ45 to Male RJ45 Male, UTP Unshielded, Terminated LSZH Sheath

Subtotal (1 unit)*

£38.35

(exc. VAT)

£46.02

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 03 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£38.35

*price indicative

RS PRO Cable Ties

From electrical to industrial applications, RS Pro offers a wide selection of cable ties to suit every need. Durable, reliable, and available in multiple sizes and materials, trusted by professionals across industries.

Shop here

RS Stock No.:: 286-3208
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	20m
	LAN Category	Cat6
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1	RJ45
	Connector 1 Number of Contacts	8
	Connector 1 Gender	Male
	Connector 1 Orientation	Straight
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	RJ45
	Shielded/Unshielded	Unshielded
	Connector 2 Orientation	Straight
	Outer Sheath Material	LSZH
	Sheath Colour	Blue
	Wiring Configuration	Straight Through
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Core Strands	7/0.19
	Conductor Strand Type	Stranded
	Capacitance	≤5.6nFnF/100m
	Cross Sectional Area	0.1645mm²
	Current Rating	2.8A
	Standards Met	EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2
	Cable Shape	Round
	American Wire Gauge	24AWG
	Outer Diameter	5.9mm
	Voltage Rating	300V
	Number of Strands	8

	Select all
	Brand RS PRO
	Length 20m
	LAN Category Cat6
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 RJ45
	Connector 1 Number of Contacts 8
	Connector 1 Gender Male
	Connector 1 Orientation Straight
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 RJ45
	Shielded/Unshielded Unshielded
	Connector 2 Orientation Straight
	Outer Sheath Material LSZH
	Sheath Colour Blue
	Wiring Configuration Straight Through
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Core Strands 7/0.19
	Conductor Strand Type Stranded
	Capacitance ≤5.6nFnF/100m
	Cross Sectional Area 0.1645mm²
	Current Rating 2.8A
	Standards Met EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2
	Cable Shape Round
	American Wire Gauge 24AWG
	Outer Diameter 5.9mm
	Voltage Rating 300V
	Number of Strands 8

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat6 LSZH

This RS PRO Ethernet Cable is a high-performance Cat6 cable designed for Gigabit Ethernet and other network protocols. It is backward compatible with Cat5/5e and Cat3 standards, offering enhanced specifications for reduced crosstalk and system noise. The cable supports performance up to 250 MHz, making it ideal for high-speed data transmission.

Features and Benefits

UTP (Unshielded Twisted Pair) construction ensures flexibility and ease of installation
Cat6 standard provides improved performance over Cat5/5e for faster data transfer
LS0H (Low Smoke Zero Halogen) sheath reduces toxic smoke emissions in case of fire
Moulded snagless boot prevents cable damage during installation
24 AWG bare copper cores offer reliable conductivity and durability
3P Verified for Gigabit Ethernet ensures compliance with industry standards
Complies with IEC 60332.3C, TIA/EIA-563-B.2, ISO/IEC 11801, and EN 50288 standards for quality assurance
PoE compatible for powering devices over Ethernet

Applications

Data centres
Office networks
Home networking
Telecommunications

Additional Information

Meets EN 50288, IEC 60332.3C, ISO/IEC 11801, and TIA/EIA-563-B.2 standards
