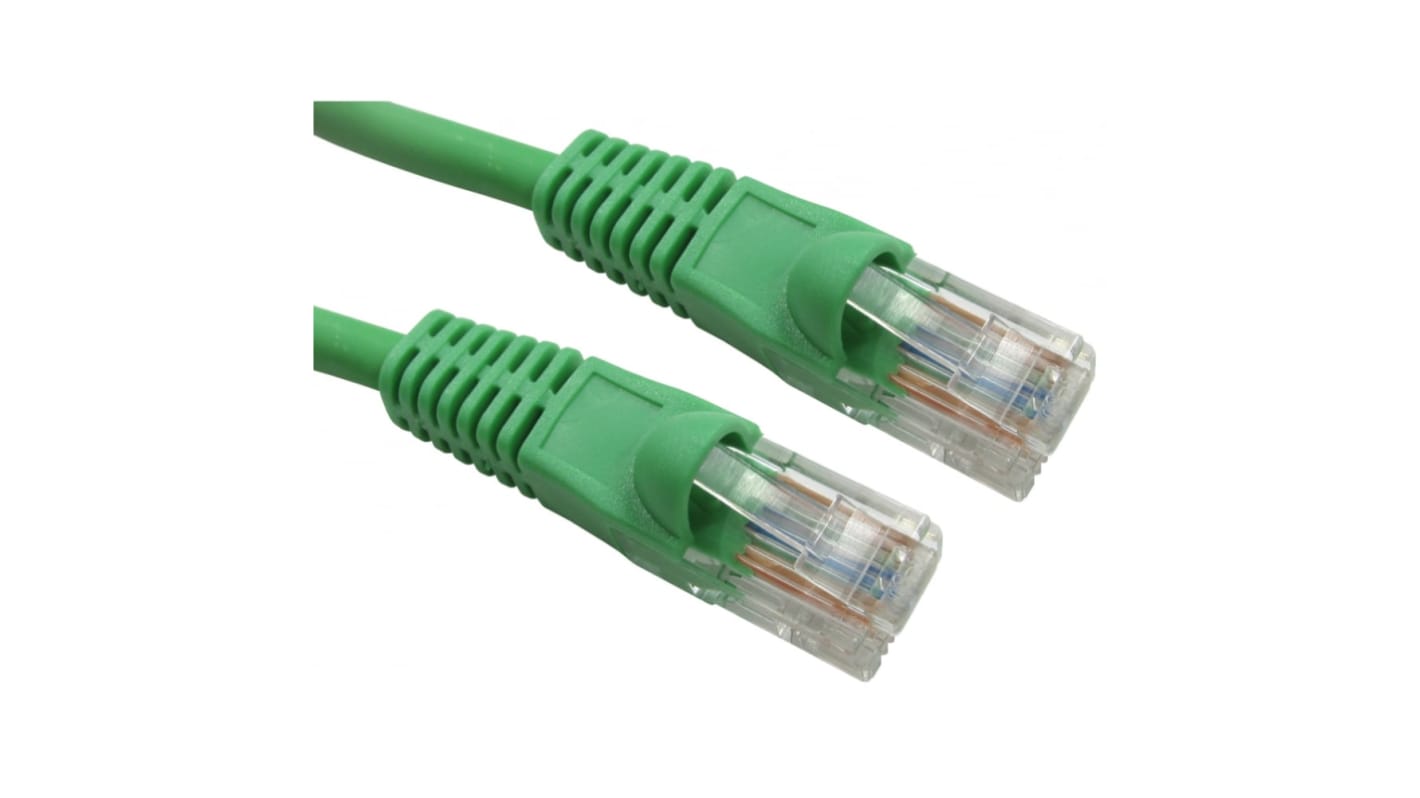

RS PRO, 15m Cat6, Green RJ45 to Male RJ45 Male, UTP Unshielded, Terminated LSZH Sheath

RS Stock No.:: 286-3202
Brand:: RS PRO

RS PRO, 15m Cat6, Green RJ45 to Male RJ45 Male, UTP Unshielded, Terminated LSZH Sheath

Subtotal (1 unit)*

£24.85

(exc. VAT)

£29.82

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

19 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£24.85

*price indicative

RS Stock No.:: 286-3202
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	15m
	LAN Category	Cat6
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 1 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Shielded/Unshielded	Unshielded
	Connector 2 Orientation	Straight
	Outer Sheath Material	LSZH
	Sheath Colour	Green
	Wiring Configuration	Straight Through
	Core Strands	7/0.19
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Number of Strands	8
	Capacitance	≤5.6nFnF/100m
	Cross Sectional Area	0.1645mm²
	Voltage Rating	300V
	Outer Diameter	5.9mm
	American Wire Gauge	24AWG
	Conductor Strand Type	Stranded
	Cable Shape	Round
	Standards Met	EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2
	Current Rating	2.8A

	Select all
	Brand RS PRO
	Length 15m
	LAN Category Cat6
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 1 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Shielded/Unshielded Unshielded
	Connector 2 Orientation Straight
	Outer Sheath Material LSZH
	Sheath Colour Green
	Wiring Configuration Straight Through
	Core Strands 7/0.19
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Number of Strands 8
	Capacitance ≤5.6nFnF/100m
	Cross Sectional Area 0.1645mm²
	Voltage Rating 300V
	Outer Diameter 5.9mm
	American Wire Gauge 24AWG
	Conductor Strand Type Stranded
	Cable Shape Round
	Standards Met EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2
	Current Rating 2.8A

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat6 LSZH

This RS PRO Ethernet Cable is a high-performance Cat6 cable designed for Gigabit Ethernet and other network protocols. It is backward compatible with Cat5/5e and Cat3 standards, offering enhanced specifications for crosstalk and system noise reduction. The cable supports performance up to 250 MHz, making it ideal for high-speed data transmission.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures flexibility and ease of installation
Cat6 standard provides improved performance over Cat5/5e for faster data transfer
LS0H (Low Smoke Zero Halogen) sheath reduces toxic smoke emissions in case of fire
Moulded snagless boot prevents cable damage during installation
24 AWG bare copper cores ensure reliable connectivity and durability
3P Verified for Gigabit Ethernet ensures compliance with industry standards
Meets IEC 60332.3C, TIA/EIA-563-B.2, ISO/IEC 11801, and EN 50288 standards for quality assurance
PoE compatible for powering devices over Ethernet

Applications

Data centres
Office networks
Home networking
Telecommunications

Additional Information

Sheath Colour: Green
Length: 15 m
Connector Type: RJ45 Male to Male
