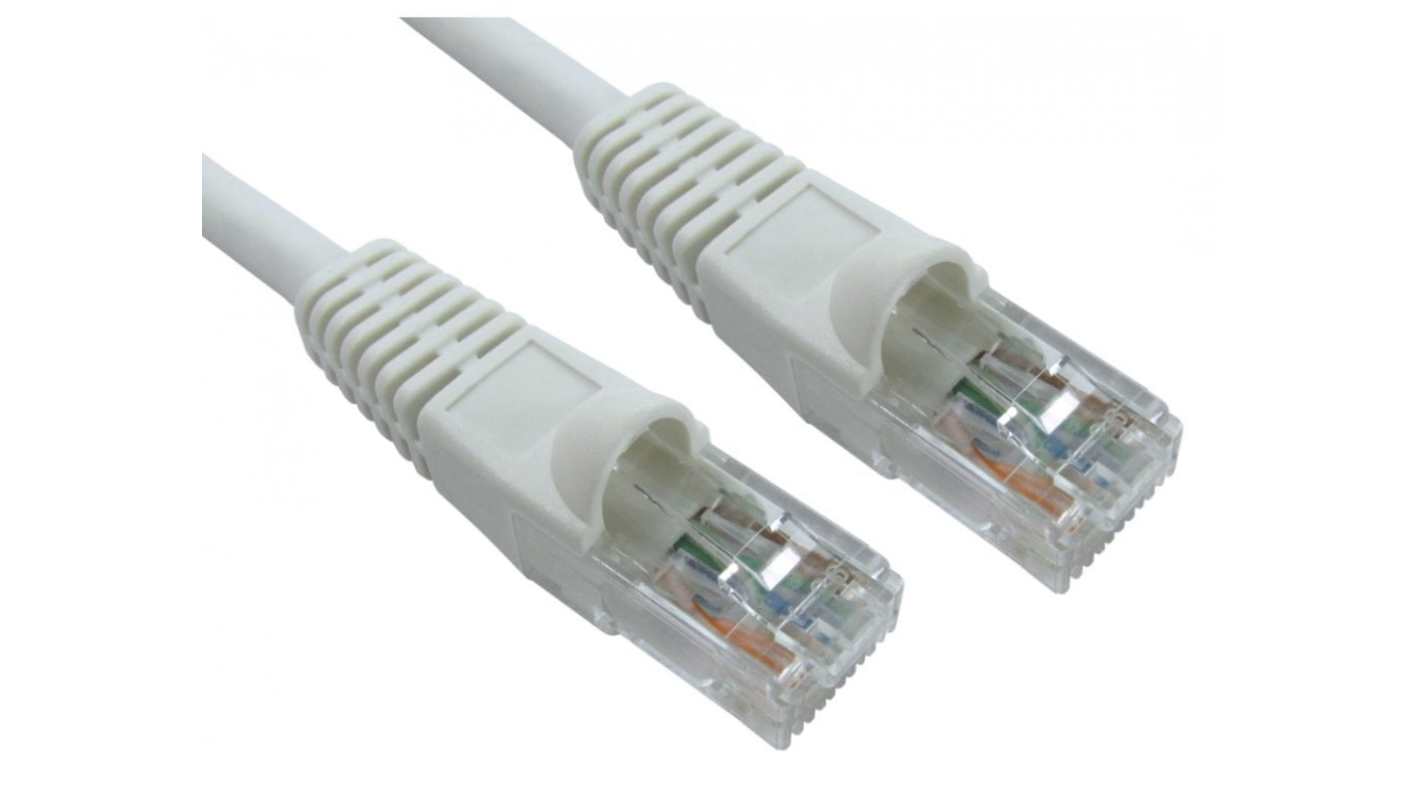

RS PRO, 2m Cat6, White RJ45 to Male RJ45 Male, UTP Unshielded, Terminated LSZH Sheath

RS Stock No.:: 286-3177
Brand:: RS PRO

RS PRO, 2m Cat6, White RJ45 to Male RJ45 Male, UTP Unshielded, Terminated LSZH Sheath

Subtotal (1 unit)*

£5.52

(exc. VAT)

£6.62

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

999,999,999 unit(s) shipping from 28 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£5.52

*price indicative

RS Stock No.:: 286-3177
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	2m
	LAN Category	Cat6
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1	RJ45
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	8
	Connector 1 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	LSZH
	Sheath Colour	White
	Wiring Configuration	Straight Through
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Core Strands	7/0.19
	Capacitance	≤5.6nFnF/100m
	Current Rating	2.8A
	Voltage Rating	300V
	Conductor Strand Type	Stranded
	Cross Sectional Area	0.1645mm²
	Cable Shape	Round
	American Wire Gauge	24AWG
	Outer Diameter	5.9mm
	Standards Met	EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2
	Number of Strands	8

	Select all
	Brand RS PRO
	Length 2m
	LAN Category Cat6
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 RJ45
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 8
	Connector 1 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Outer Sheath Material LSZH
	Sheath Colour White
	Wiring Configuration Straight Through
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Core Strands 7/0.19
	Capacitance ≤5.6nFnF/100m
	Current Rating 2.8A
	Voltage Rating 300V
	Conductor Strand Type Stranded
	Cross Sectional Area 0.1645mm²
	Cable Shape Round
	American Wire Gauge 24AWG
	Outer Diameter 5.9mm
	Standards Met EN 50288, IEC 60332.3C, ISO/IEC 11801, TIA/EIA-563-B.2
	Number of Strands 8

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat6 LSZH

This RS PRO Ethernet Cable is a high-performance Cat6 cable designed for Gigabit Ethernet and other network protocols. It is backward compatible with Cat5/5e and Cat3 standards, offering enhanced specifications for reduced crosstalk and system noise. The cable supports performance up to 250 MHz, making it ideal for high-speed data transmission.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures flexibility and ease of installation
Cat6 standard provides improved performance over Cat5/5e
LS0H (Low Smoke Zero Halogen) sheath reduces toxic smoke emissions in case of fire
Moulded snagless boot prevents cable damage during installation
24 AWG bare copper cores ensure reliable signal transmission
3P Verified for Gigabit Ethernet compatibility
Complies with IEC 60332.3C, TIA/EIA-563-B.2, ISO/IEC 11801, and EN 50288 standards
PoE compatible for powering devices over Ethernet

Applications

Data centres
Office networks
Home networking
Telecommunications

Additional Information

Meets key standards for safety and performance
Available in a 2 m length with RJ45 connectors
