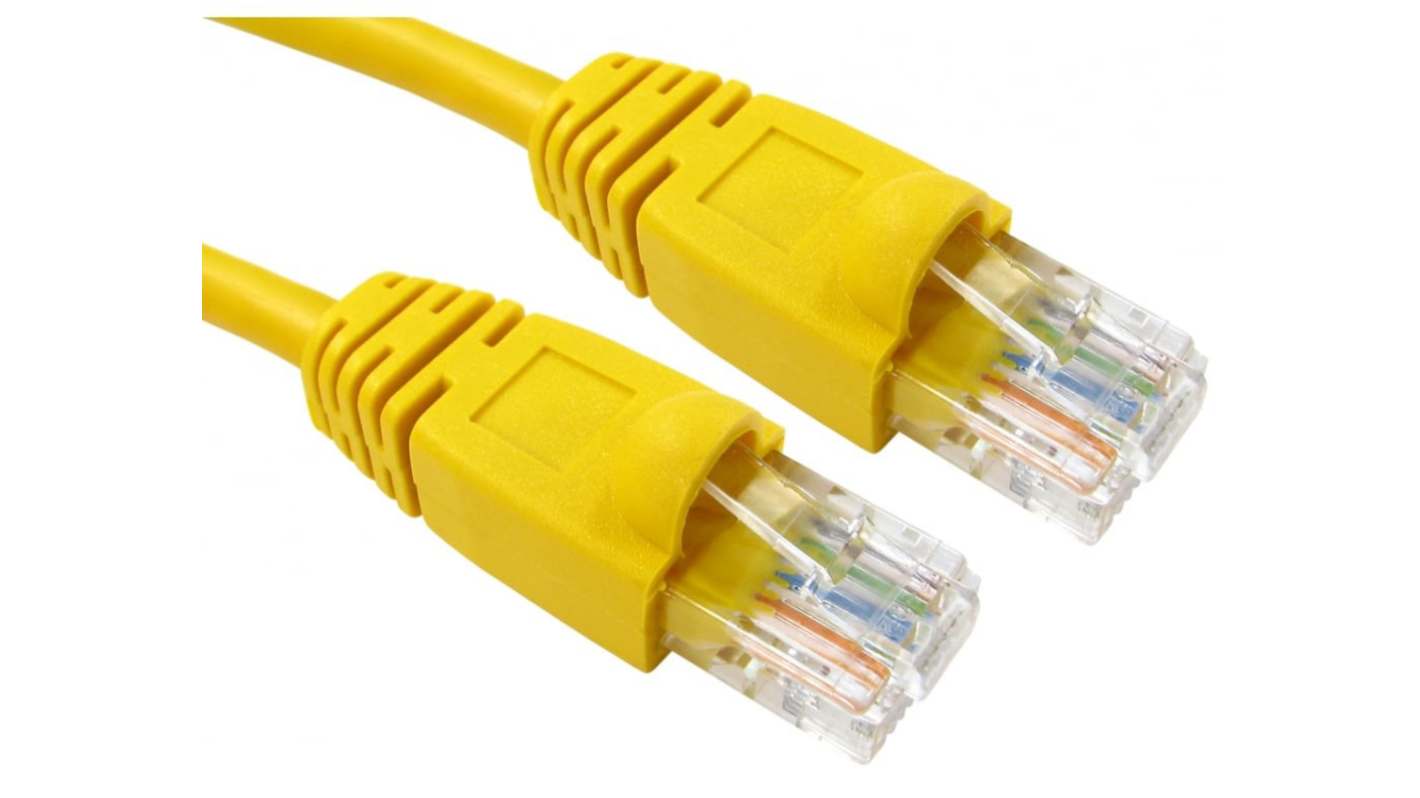

RS PRO, 0.5m Cat5e, Yellow RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 286-2986
- Brand:
- RS PRO
Subtotal (1 unit)*
£4.84
(exc. VAT)
£5.81
(inc. VAT)
FREE delivery for orders over £50.00
- 999,999,999 unit(s) shipping from 07 November 2025
Units | Per unit |
---|---|
1 + | £4.84 |
*price indicative
- RS Stock No.:
- 286-2986
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
LAN Category | Cat5e | |
Length | 0.5m | |
Terminated/Unterminated | Terminated | |
Shield Type | UTP | |
Connector 1 Orientation | Straight | |
Connector 1 | RJ45 | |
Connector 1 Number of Contacts | 8 | |
Connector 1 Gender | Male | |
Connector 2 | RJ45 | |
Connector 2 Gender | Male | |
Connector 2 Number of Contacts | 8 | |
Connector 2 Orientation | Straight | |
Shielded/Unshielded | Unshielded | |
Sheath Colour | Yellow | |
Outer Sheath Material | PVC | |
Wiring Configuration | Straight Through | |
Core Strands | 7/0.19 | |
Fire Behaviour | CM Rated | |
Voltage Rating | 80V | |
Cable Shape | Round | |
Conductor Strand Type | Stranded | |
Capacitance | 5.6nF/100m | |
Cross Sectional Area | 0.201 to 0.253mm² | |
Standards Met | C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | |
Current Rating | 960mA | |
Number of Strands | 8 | |
American Wire Gauge | 24AWG | |
Outer Diameter | 5.2mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
LAN Category Cat5e | ||
Length 0.5m | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Orientation Straight | ||
Connector 1 RJ45 | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Gender Male | ||
Connector 2 RJ45 | ||
Connector 2 Gender Male | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Sheath Colour Yellow | ||
Outer Sheath Material PVC | ||
Wiring Configuration Straight Through | ||
Core Strands 7/0.19 | ||
Fire Behaviour CM Rated | ||
Voltage Rating 80V | ||
Cable Shape Round | ||
Conductor Strand Type Stranded | ||
Capacitance 5.6nF/100m | ||
Cross Sectional Area 0.201 to 0.253mm² | ||
Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | ||
Current Rating 960mA | ||
Number of Strands 8 | ||
American Wire Gauge 24AWG | ||
Outer Diameter 5.2mm | ||
- COO (Country of Origin):
- CN
RS PRO Ethernet Cable, Cat5e
Features and Benefits
Cat 5e rating supports fast data transfer speeds, enhancing network performance
Snagless boot prevents cable damage during installation, increasing durability
24 AWG bare copper cores provide robust connectivity and signal clarity
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 standards met for guaranteed quality and compatibility
PoE compatible, allowing power and data transmission over a single cable
Applications
Ethernet connections
Home and office networking
Additional Information
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Fire Behaviour: CM Rated
Voltage Rating: 80 V
Length: 0.5 m
Connector Type: RJ45 Male to Male
