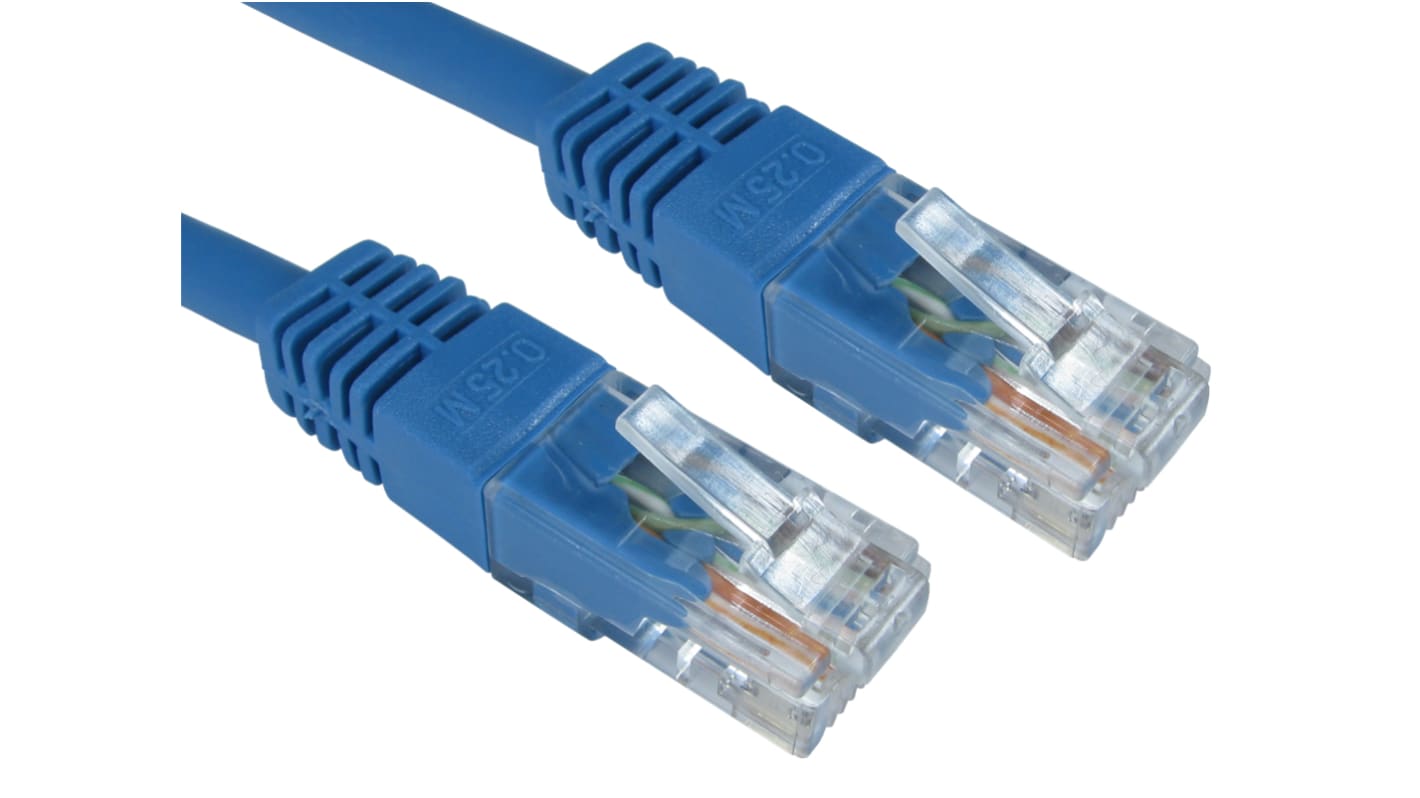

RS PRO, 30m Cat6, Blue RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 264-6575
Brand:: RS PRO

RS PRO, 30m Cat6, Blue RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£37.05

(exc. VAT)

£44.46

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

17 unit(s) ready to ship
Plus 15 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£37.05

*price indicative

RS Stock No.:: 264-6575
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	30m
	LAN Category	Cat6
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	8
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 2 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Sheath Colour	Blue
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.18
	Number of Strands	8
	American Wire Gauge	24AWG
	Outer Diameter	5.5mm
	Conductor Strand Type	Stranded
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.201 to 0.253mm²
	Voltage Rating	80V
	Current Rating	960mA
	Cable Shape	Round
	Standards Met	EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1

	Select all
	Brand RS PRO
	Length 30m
	LAN Category Cat6
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 8
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 2 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Sheath Colour Blue
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.18
	Number of Strands 8
	American Wire Gauge 24AWG
	Outer Diameter 5.5mm
	Conductor Strand Type Stranded
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.201 to 0.253mm²
	Voltage Rating 80V
	Current Rating 960mA
	Cable Shape Round
	Standards Met EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat6 Gigabit Patch Cable

This Ethernet cable is designed for high-speed network connections, supporting Gigabit Ethernet and other network protocols. It is backward compatible with Cat-5/5e and Cat-3 standards, offering enhanced performance with reduced crosstalk and system noise.

Features and Benefits

Category 6 Cable: Provides up to 250 MHz performance for reliable data transmission
UTP (Unshielded Twisted Pair): Ensures flexibility and ease of installation
Moulded Design: Offers durability and strain relief
24 AWG Bare Copper Cores: Enhances conductivity and signal quality
PoE Compatible: Supports Power over Ethernet applications
ISO/IEC 11801 & EN 50288 Compliance: Meets international standards for quality and performance

Applications

Ideal for use in data centres, office networks, and home networking setups. Suitable for connecting computers, servers, and other network devices.

Additional Information

Meets EN 50288, ETL/3P Verified, ISO/IEC 11801, and TIA/EIA-563-B.2-1 standards. Features a blue PVC sheath and is terminated with RJ45 connectors for easy installation.
