Phoenix Contact VS, 5 m Cat5 Ethernet Cable, Red, Shielded Screened Polyvinyl Chloride Sheath
- RS Stock No.:
- 255-8849
- Mfr. Part No.:
- 1419179
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£71.17
(exc. VAT)
£85.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £71.17 |
*price indicative
- RS Stock No.:
- 255-8849
- Mfr. Part No.:
- 1419179
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | VS | |
| Product Type | Ethernet Cable | |
| Cable Length | 5m | |
| LAN Category | Cat5 | |
| Shield Type | Shielded | |
| Sub Type | Cat5 Cable | |
| Screened/Unscreened | Screened | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Red | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EAC Approval ID: 19060508 | |
| Voltage | 600V | |
| Cross Sectional Area | 22 AWG | |
| Conductor Material | Tin Plated Copper | |
| Outside Diameter | 6.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series VS | ||
Product Type Ethernet Cable | ||
Cable Length 5m | ||
LAN Category Cat5 | ||
Shield Type Shielded | ||
Sub Type Cat5 Cable | ||
Screened/Unscreened Screened | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Red | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EAC Approval ID: 19060508 | ||
Voltage 600V | ||
Cross Sectional Area 22 AWG | ||
Conductor Material Tin Plated Copper | ||
Outside Diameter 6.5mm | ||
- COO (Country of Origin):
- PL

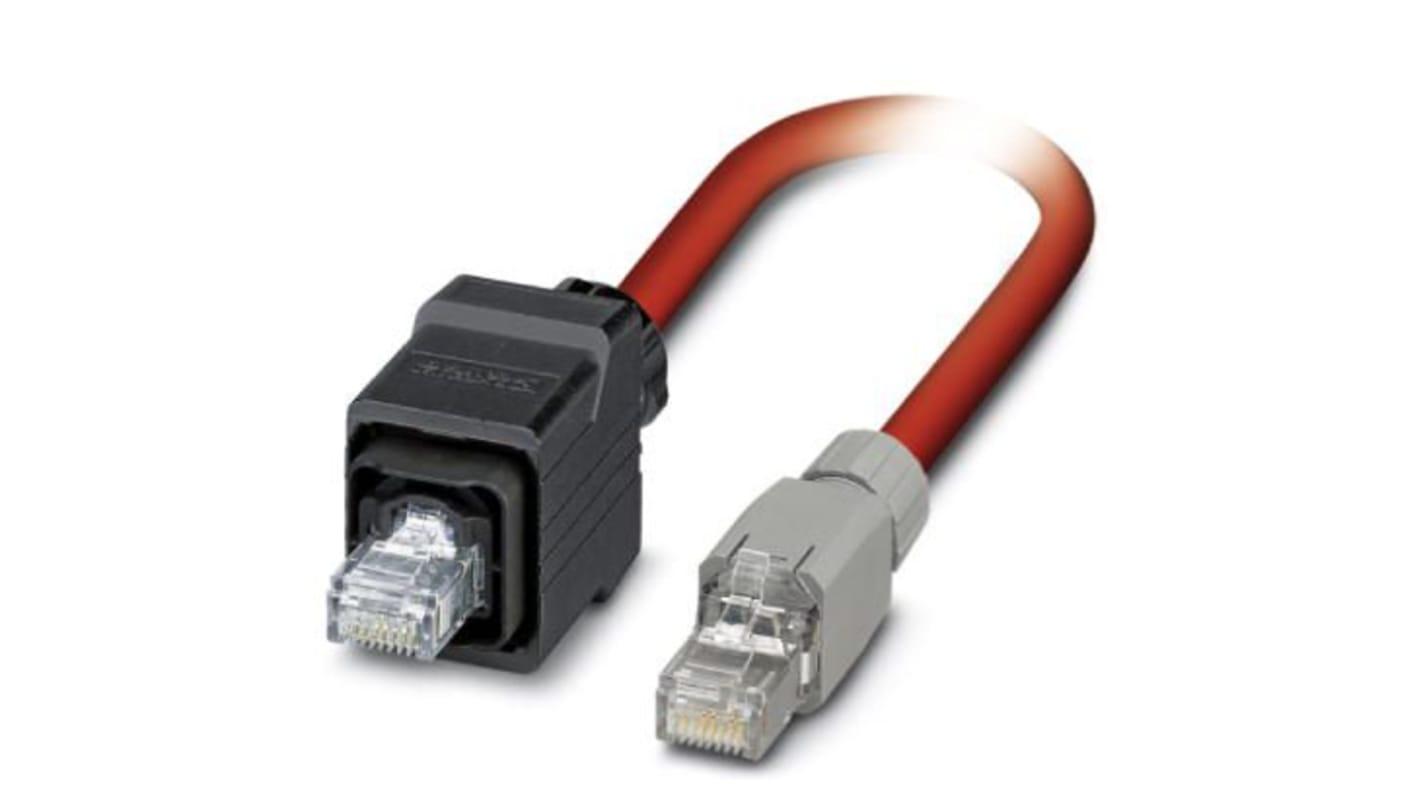

The Phoenix Contact patch cable is preassembled data cable. It is consist of one side is RJ45 connector push pull and another side is RJ45 connector.
IP67 and IP20 degree of protection
4 number of position
