Phoenix Contact VS, 5 m Cat5 Ethernet Cable, Red, Shielded Screened Polyvinyl Chloride Sheath
- RS Stock No.:
- 255-8845
- Mfr. Part No.:
- 1419174
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£52.26
(exc. VAT)
£62.71
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £52.26 |
*price indicative
- RS Stock No.:
- 255-8845
- Mfr. Part No.:
- 1419174
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ethernet Cable | |
| Series | VS | |
| Cable Length | 5m | |
| LAN Category | Cat5 | |
| Sub Type | Cat5 Cable | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Red | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EAC Approval ID: 19060508 | |
| Core Strands | 7 | |
| Fire Behaviour | Flammability rating according to UL | |
| Voltage | 600V | |
| Conductor Material | Tin Plated Copper | |
| Outside Diameter | 6.5mm | |
| Cross Sectional Area | 22 AWG | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ethernet Cable | ||
Series VS | ||
Cable Length 5m | ||
LAN Category Cat5 | ||
Sub Type Cat5 Cable | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Red | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EAC Approval ID: 19060508 | ||
Core Strands 7 | ||
Fire Behaviour Flammability rating according to UL | ||
Voltage 600V | ||
Conductor Material Tin Plated Copper | ||
Outside Diameter 6.5mm | ||
Cross Sectional Area 22 AWG | ||
- COO (Country of Origin):
- PL

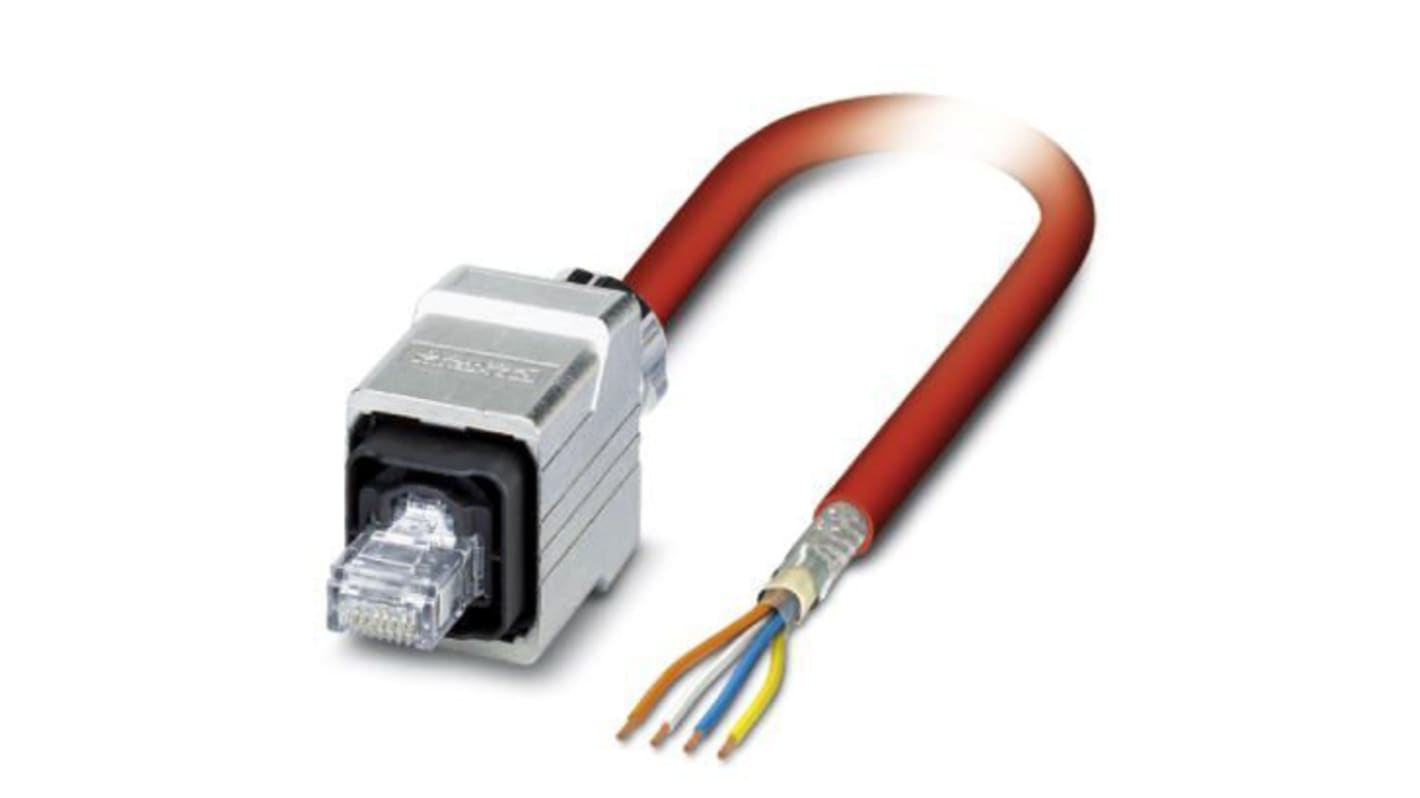

The Phoenix Contact network cable is preassembled data cable. It is consist of one side is RJ45 connector with push pull and another side is free end.
IP67 degree of protection
4 number of position
