Phoenix Contact VS, 5 m Cat5e Ethernet Cable, Green, Shielded 4 Screened Polyurethane Sheath
- RS Stock No.:
- 255-8792
- Mfr. Part No.:
- 1416192
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 255-8792
- Mfr. Part No.:
- 1416192
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | VS | |
| Product Type | Ethernet Cable | |
| Cable Length | 5m | |
| LAN Category | Cat5e | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Green | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Fire Behaviour | UL 94 V-0 | |
| Standards/Approvals | EAC Approval ID: 19060508 | |
| Core Strands | 7 | |
| Conductor Material | Tin Plated Copper | |
| Cross Sectional Area | 22 AWG | |
| Voltage | 600V | |
| Number of Cores | 4 | |
| Outside Diameter | 6.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series VS | ||
Product Type Ethernet Cable | ||
Cable Length 5m | ||
LAN Category Cat5e | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Jacket Material Polyurethane | ||
Jacket Colour Green | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Fire Behaviour UL 94 V-0 | ||
Standards/Approvals EAC Approval ID: 19060508 | ||
Core Strands 7 | ||
Conductor Material Tin Plated Copper | ||
Cross Sectional Area 22 AWG | ||
Voltage 600V | ||
Number of Cores 4 | ||
Outside Diameter 6.5mm | ||
- COO (Country of Origin):
- PL

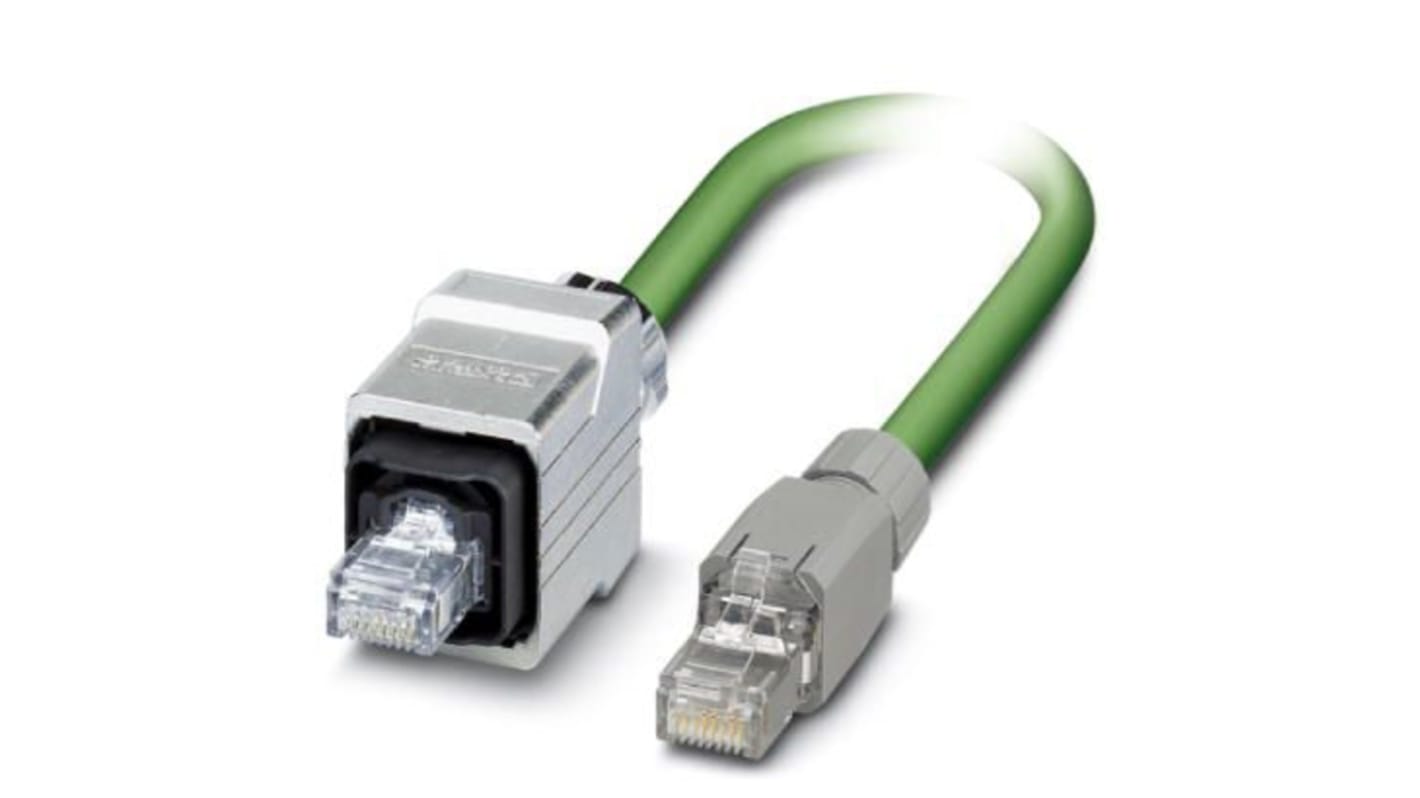

The Phoenix Contact shielded 4 position PROFINET network cable is CAT5e rated with consists of metal push-pull RJ45/IP67 plug and RJ45/IP20 plug.
IP 20 protection
V0 flammability rating as per UL94
Rated for 1000+ insertion/withdrawal cycles
Number of bending cycles 3000000
