Phoenix Contact NBC, 2 m Cat5 Ethernet Cable, Blue, Shielded 2 Polyurethane Sheath
- RS Stock No.:
- 255-8560
- Mfr. Part No.:
- 1407365
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 255-8560
- Mfr. Part No.:
- 1407365
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | NBC | |
| Product Type | Ethernet Cable | |
| LAN Category | Cat5 | |
| Cable Length | 2m | |
| Sub Type | Cat5 Cable | |
| Shield Type | Shielded | |
| Jacket Colour | Blue | |
| Jacket Material | Polyurethane | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | IP67, IP65, IP20 | |
| Fire Behaviour | Halogen Free | |
| Core Strands | 7 | |
| Outside Diameter | 6.4mm | |
| Cross Sectional Area | 0.14 mm² | |
| Number of Cores | 2 | |
| Conductor Material | Bare Copper | |
| Voltage | 60V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series NBC | ||
Product Type Ethernet Cable | ||
LAN Category Cat5 | ||
Cable Length 2m | ||
Sub Type Cat5 Cable | ||
Shield Type Shielded | ||
Jacket Colour Blue | ||
Jacket Material Polyurethane | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals IP67, IP65, IP20 | ||
Fire Behaviour Halogen Free | ||
Core Strands 7 | ||
Outside Diameter 6.4mm | ||
Cross Sectional Area 0.14 mm² | ||
Number of Cores 2 | ||
Conductor Material Bare Copper | ||
Voltage 60V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL

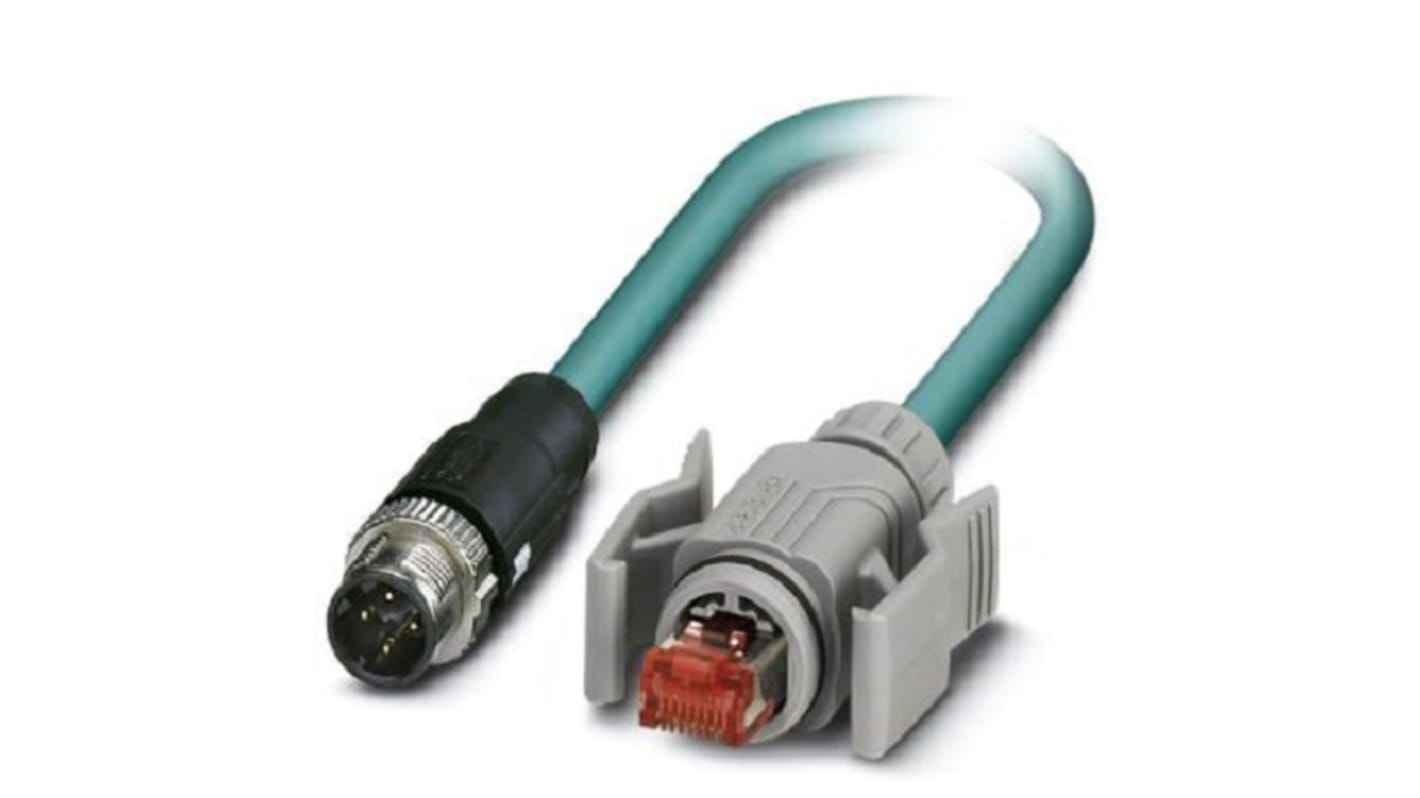

The Phoenix Contact shielded network cable CAT5 (100 Mbps) rated with straight plug M12/IP67 and Clip locking RJ45/IP67, it is 2 m long and available in water blue color.
IP67 protection
100 mbps data transmission
Tested voltage up to 700 V (50 Hz, 1 min)
Flame resistance acc. to UL VW1
