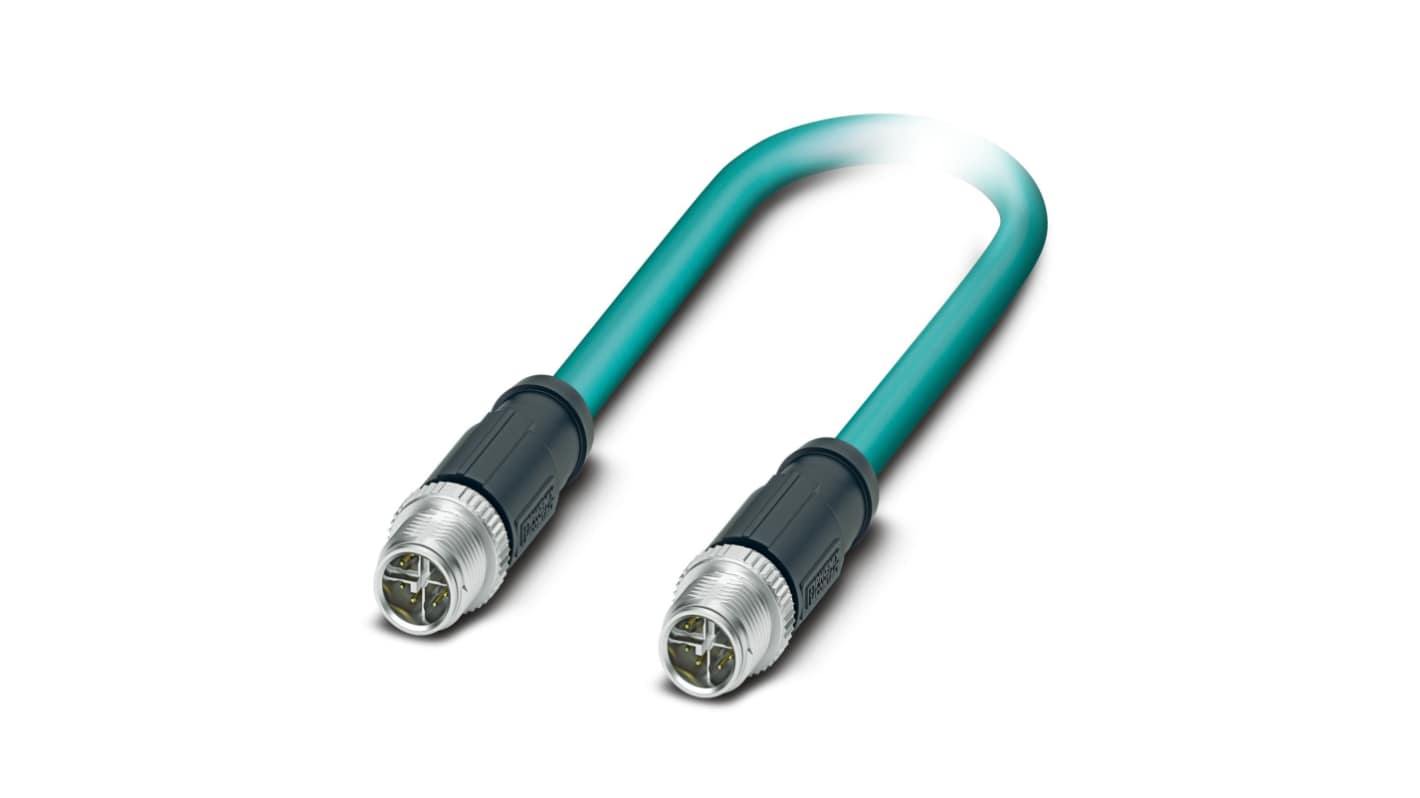

Phoenix Contact NBC, 1 m Cat6a Ethernet Cable, Blue, Shielded 8 Screened Polyurethane Sheath
- RS Stock No.:
- 254-4620
- Mfr. Part No.:
- 1407483
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£75.50
(exc. VAT)
£90.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 13 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £75.50 |
*price indicative
- RS Stock No.:
- 254-4620
- Mfr. Part No.:
- 1407483
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | NBC | |
| Product Type | Ethernet Cable | |
| LAN Category | Cat6a | |
| Cable Length | 1m | |
| Shield Type | Shielded | |
| Sub Type | Cat6a Cable | |
| Screened/Unscreened | Screened | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Blue | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Core Strands | 7 | |
| Standards/Approvals | cULus, UL, cUL, M12 Standards/specifications IEC 61076 2 109, EAC | |
| Fire Behaviour | Flame resistance according to IEC, Halogen Free IEC 60754-1 | |
| Conductor Material | Bare Copper Wire | |
| Voltage | 60V | |
| Number of Cores | 8 | |
| Cross Sectional Area | 0.14 mm² | |
| Outside Diameter | 6.4mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series NBC | ||
Product Type Ethernet Cable | ||
LAN Category Cat6a | ||
Cable Length 1m | ||
Shield Type Shielded | ||
Sub Type Cat6a Cable | ||
Screened/Unscreened Screened | ||
Jacket Material Polyurethane | ||
Jacket Colour Blue | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Core Strands 7 | ||
Standards/Approvals cULus, UL, cUL, M12 Standards/specifications IEC 61076 2 109, EAC | ||
Fire Behaviour Flame resistance according to IEC, Halogen Free IEC 60754-1 | ||
Conductor Material Bare Copper Wire | ||
Voltage 60V | ||
Number of Cores 8 | ||
Cross Sectional Area 0.14 mm² | ||
Outside Diameter 6.4mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Network cable is of length 1m. It has 4 positions and shielded.
Cable length 1 m
Ethernet CAT6A (10 Gbps)
CC-Link IE CAT6A (10 Gbps)
8-position halogenfree
