BulginPXP, 10m Cat6a, Blue M12 to Female RJ45 Male Unshielded, Terminated PUR Sheath
- RS Stock No.:
- 176-6425
- Mfr. Part No.:
- PXPTPU12FBF08XRJ100PU
- Brand:
- Bulgin
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 176-6425
- Mfr. Part No.:
- PXPTPU12FBF08XRJ100PU
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Series | PXP | |
| Length | 10m | |
| LAN Category | Cat6a | |
| Terminated/Unterminated | Terminated | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 8 | |
| Connector 1 Orientation | Straight | |
| Connector 1 | M12 | |
| Connector 2 Number of Contacts | 8 | |
| Connector 2 | RJ45 | |
| Connector 2 Gender | Male | |
| Shielded/Unshielded | Unshielded | |
| Connector 2 Orientation | Straight | |
| Coding | X | |
| Sheath Colour | Blue | |
| Outer Sheath Material | PUR | |
| IP Rating | IP67 | |
| Standards Met | EN 61076-2-109 | |
| American Wire Gauge | 26 AWG | |
| Outer Diameter | 6.2mm | |
| Current Rating | 0.5 A | |
| Voltage Rating | 48 V ac/dc | |
| Cross Sectional Area | 0.14 mm² | |
| Cable Shape | Round | |
Select all | ||
|---|---|---|
Brand Bulgin | ||
Series PXP | ||
Length 10m | ||
LAN Category Cat6a | ||
Terminated/Unterminated Terminated | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Straight | ||
Connector 1 M12 | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 RJ45 | ||
Connector 2 Gender Male | ||
Shielded/Unshielded Unshielded | ||
Connector 2 Orientation Straight | ||
Coding X | ||
Sheath Colour Blue | ||
Outer Sheath Material PUR | ||
IP Rating IP67 | ||
Standards Met EN 61076-2-109 | ||
American Wire Gauge 26 AWG | ||
Outer Diameter 6.2mm | ||
Current Rating 0.5 A | ||
Voltage Rating 48 V ac/dc | ||
Cross Sectional Area 0.14 mm² | ||
Cable Shape Round | ||
- COO (Country of Origin):
- CN
With a high degree of mechanical and electrical stability, Bulgin’s M12 X Coding connectors provide a cost effective and flexible connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications.
M12 Series X Code TPU Flex Body to RJ45 Overmould Cable Connector 8 Pole Plug Pre-Wired With 10M PU Jacket Cable

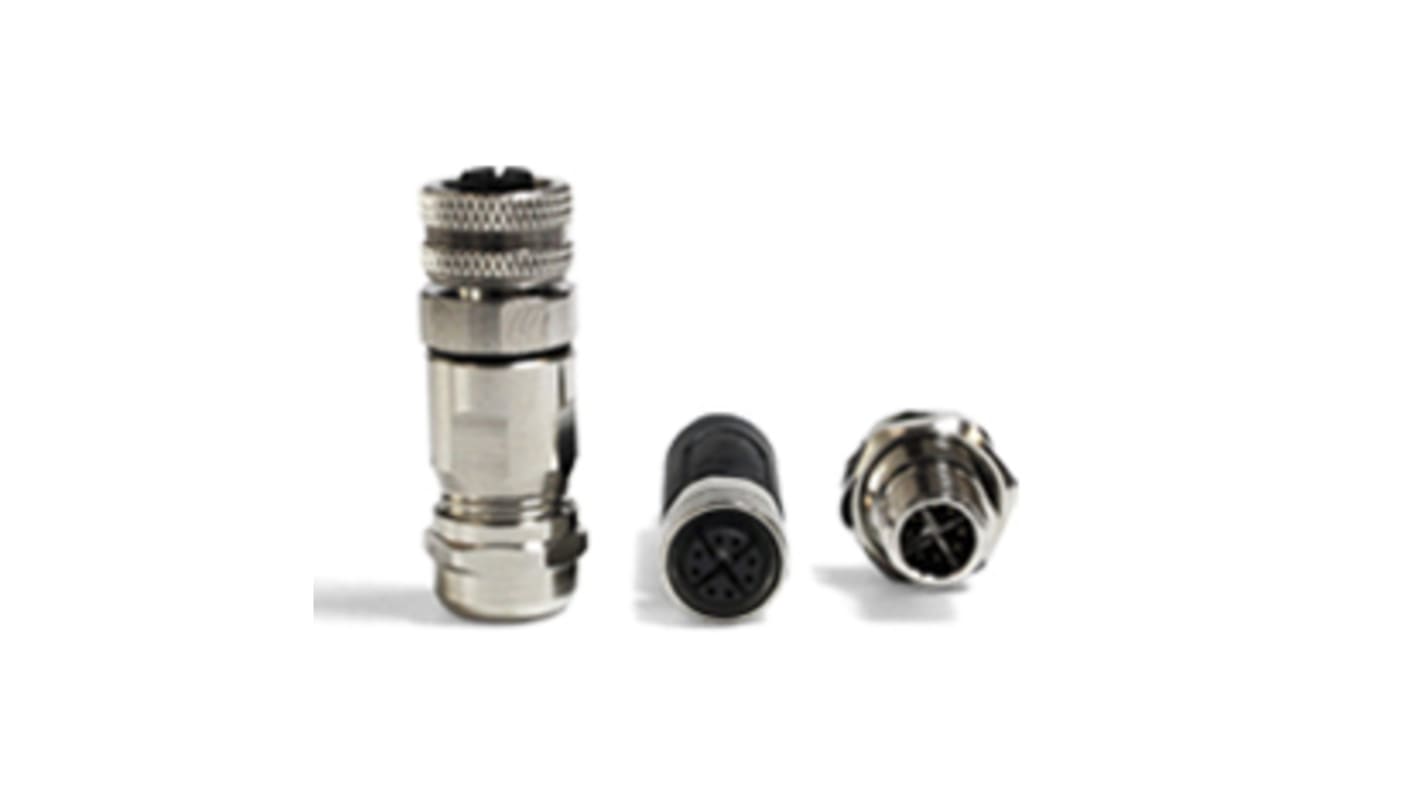

M12 Series Overmould FlexBody Connectors
Water and dustproof when mated with compatible connector
Pin or Socket
3, 4, 5, 8, 12 Pole (3,12 Pole are A Code, 4 Pole are choice of A Code or D Code, 5 Pole are choice of A Code or B Code, 8 Pole are choice of A Code or X Code)
PCB Terminals
Choice of mounting nut sizes, depending on part code
Choice of Sealing Caps available separately to maintain IP rating of unmated connectors
Mate with M12 Series In-Line Flex Body and Flex Body Connectors, depending on part code
Water and dustproof when mated with compatible connector
Pin or Socket
3, 4, 5, 8, 12 Pole (3,12 Pole are A Code, 4 Pole are choice of A Code or D Code, 5 Pole are choice of A Code or B Code, 8 Pole are choice of A Code or X Code)
PCB Terminals
Choice of mounting nut sizes, depending on part code
Choice of Sealing Caps available separately to maintain IP rating of unmated connectors
Mate with M12 Series In-Line Flex Body and Flex Body Connectors, depending on part code
