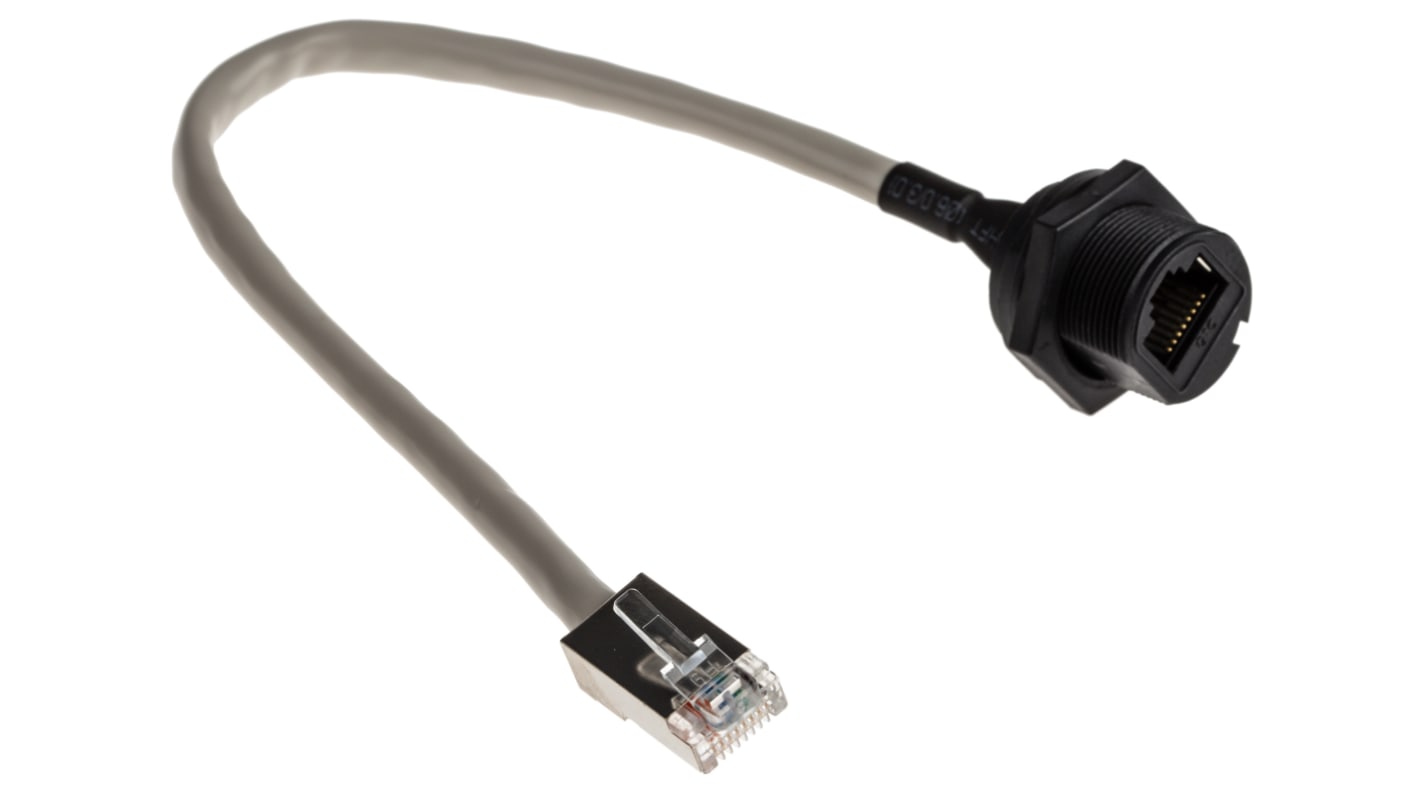

RS PRO, 200mm Cat5e, Grey RJ45 to Male RJ45 Female, STP Shielded, Terminated PVC Sheath
- RS Stock No.:
- 111-6736
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£36.23
(exc. VAT)
£43.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 208 unit(s) shipping from 27 October 2025
- Plus 27 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £36.23 |
| 10 - 49 | £34.42 |
| 50 + | £32.60 |
*price indicative
- RS Stock No.:
- 111-6736
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | GTC Sealed | |
| Length | 200mm | |
| LAN Category | Cat5e | |
| Terminated/Unterminated | Terminated | |
| Shield Type | STP | |
| Connector 1 Orientation | Straight | |
| Connector 1 | RJ45 | |
| Connector 1 Gender | Male | |
| Connector 2 | RJ45 | |
| Connector 2 Gender | Female | |
| Shielded/Unshielded | Shielded | |
| Connector 2 Orientation | Straight | |
| Outer Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Wiring Configuration | Straight Through | |
| IP Rating | IP67 | |
| Standards Met | RoHS Compliant | |
| American Wire Gauge | 24 AWG | |
| Cable Shape | Round | |
| Number of Strands | 8 | |
| Current Rating | 1.5 A | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Series GTC Sealed | ||
Length 200mm | ||
LAN Category Cat5e | ||
Terminated/Unterminated Terminated | ||
Shield Type STP | ||
Connector 1 Orientation Straight | ||
Connector 1 RJ45 | ||
Connector 1 Gender Male | ||
Connector 2 RJ45 | ||
Connector 2 Gender Female | ||
Shielded/Unshielded Shielded | ||
Connector 2 Orientation Straight | ||
Outer Sheath Material PVC | ||
Sheath Colour Grey | ||
Wiring Configuration Straight Through | ||
IP Rating IP67 | ||
Standards Met RoHS Compliant | ||
American Wire Gauge 24 AWG | ||
Cable Shape Round | ||
Number of Strands 8 | ||
Current Rating 1.5 A | ||
- COO (Country of Origin):
- TW
RS Pro Cat5e Cable - Waterproof
Brought to you by RS Pro, a range of superior quality IP rated Cat5e cable assemblies. These waterproof shielded cable assemblies provide excellent industrial Ethernet solutions for the harshest of environments. The screw coupling connection provides the perfect solution for field installations, no requirement for specialist tooling which saves valuable time. The shielded connectors and cable offer signal protection from external noise and interference and crosstalk. All models are highly reliable and excellent quality.
Features and Benefits
• IP67/68 rated
• Fully shielded
• No specialist tooling required
• Easy screw connection, saves time
• Suitable for outdoors
• Fully shielded
• No specialist tooling required
• Easy screw connection, saves time
• Suitable for outdoors
What is a Cat5e Cable?
Cat5e cables are a type of Ethernet cable, running from the internet source, like a router, to the intended target. It has a twister pair build and will excel in both home and workplace environments. The use of copper within the patch cord itself guarantees the excellent network connection needed for a reliable and smooth internet activity.
Why Cat5e?
The choice of which category cable to use is ultimately down to the user. Cat5e will run applications up to 100 MHz, which would be perfect for most workplaces and server rooms which require a constant internet connection for day to day activities.
What are the different types of these Cat5e cables?
