Belden 70007E, 500 m Thin Ethernet Cable, Green Polyvinyl Chloride Sheath
- RS Stock No.:
- 631-696
- Mfr. Part No.:
- 70007E.01500
- Brand:
- Belden
Subtotal (1 reel of 500 metres)*
£1,290.46
(exc. VAT)
£1,548.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 01 April 2026
- Plus 5 unit(s) shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £1,290.46 | £2.581 |
*price indicative
- RS Stock No.:
- 631-696
- Mfr. Part No.:
- 70007E.01500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 70007E | |
| Product Type | Thin Ethernet Cable | |
| Cable Length | 500m | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Green | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EU CE, RoHS, IEC 60332-1-2, UKCA | |
| Conductor Material | Bare Copper | |
| Number of Cores | 4 | |
| Voltage | 300V | |
| Outside Diameter | 6.5 mm | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Series 70007E | ||
Product Type Thin Ethernet Cable | ||
Cable Length 500m | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Green | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EU CE, RoHS, IEC 60332-1-2, UKCA | ||
Conductor Material Bare Copper | ||
Number of Cores 4 | ||
Voltage 300V | ||
Outside Diameter 6.5 mm | ||
- COO (Country of Origin):
- HU

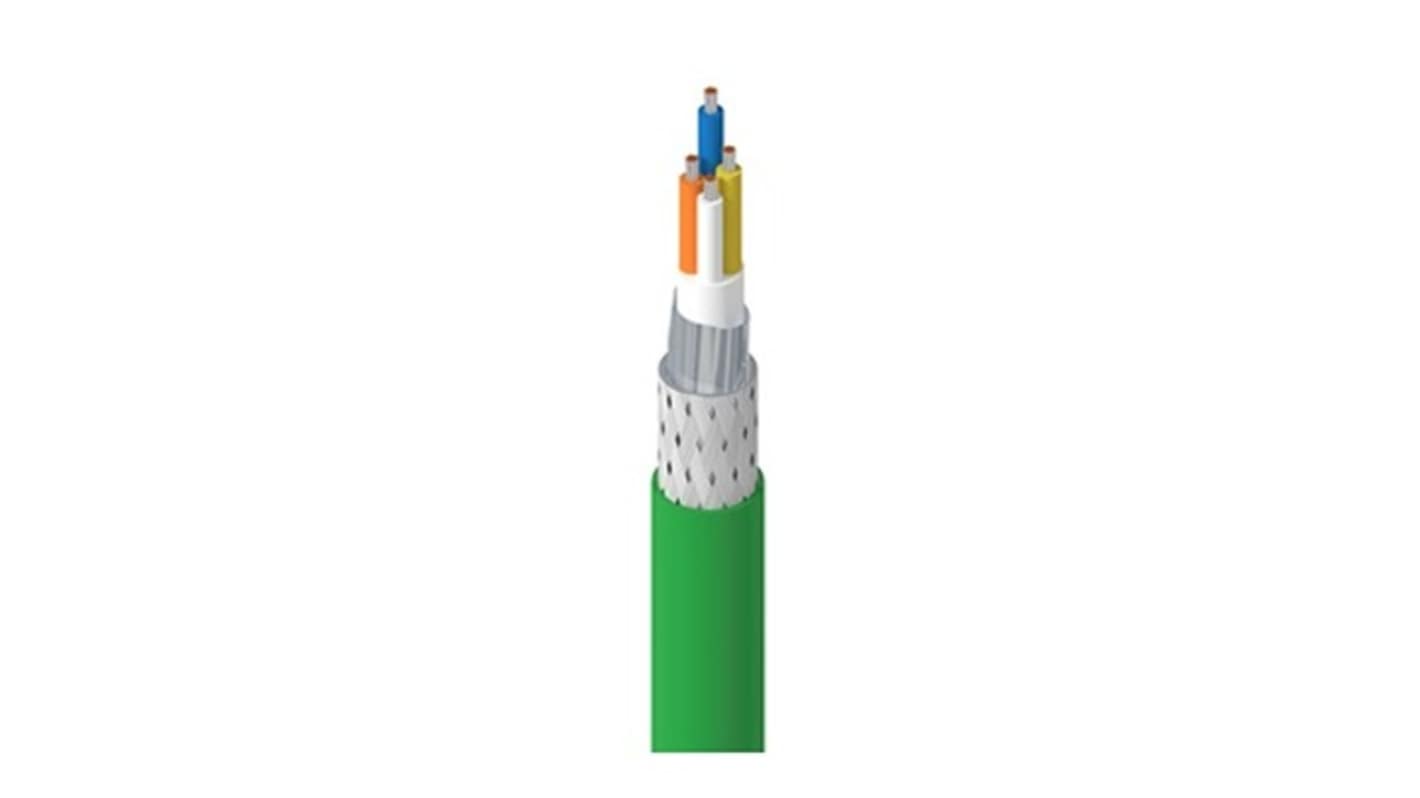

The Belden Category 5E Cable is built for industrial Ethernet applications in demanding environments. The stranded conductor design enhances flexibility for installations requiring frequent movement or vibration resistance. The shielding configuration ensures reliable data transmission by minimizing external interference.
Uses one quad of stranded tinned copper conductors with polyethylene insulation
Includes overall braid and foil shielding for signal protection
