Belden10GXE00D, 500m Cat6a, Blue Unterminated to Unterminated, F/UTP Shielded, Unterminated LSZH Sheath
- RS Stock No.:
- 631-587
- Mfr. Part No.:
- 10GXE00D.06500
- Brand:
- Belden
Subtotal (1 reel of 500 metres)*
£699.11
(exc. VAT)
£838.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £699.11 | £1.398 |
*price indicative
- RS Stock No.:
- 631-587
- Mfr. Part No.:
- 10GXE00D.06500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Series | 10GXE00D | |
LAN Category | Cat6a | |
Length | 500m | |
Terminated/Unterminated | Unterminated | |
Shield Type | F/UTP | |
Connector 1 Orientation | Straight | |
Connector 1 | Unterminated | |
Connector 2 | Unterminated | |
Shielded/Unshielded | Shielded | |
Sheath Colour | Blue | |
Outer Sheath Material | LSZH | |
Select all | ||
---|---|---|
Brand Belden | ||
Series 10GXE00D | ||
LAN Category Cat6a | ||
Length 500m | ||
Terminated/Unterminated Unterminated | ||
Shield Type F/UTP | ||
Connector 1 Orientation Straight | ||
Connector 1 Unterminated | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Shielded | ||
Sheath Colour Blue | ||
Outer Sheath Material LSZH | ||
- COO (Country of Origin):
- HU

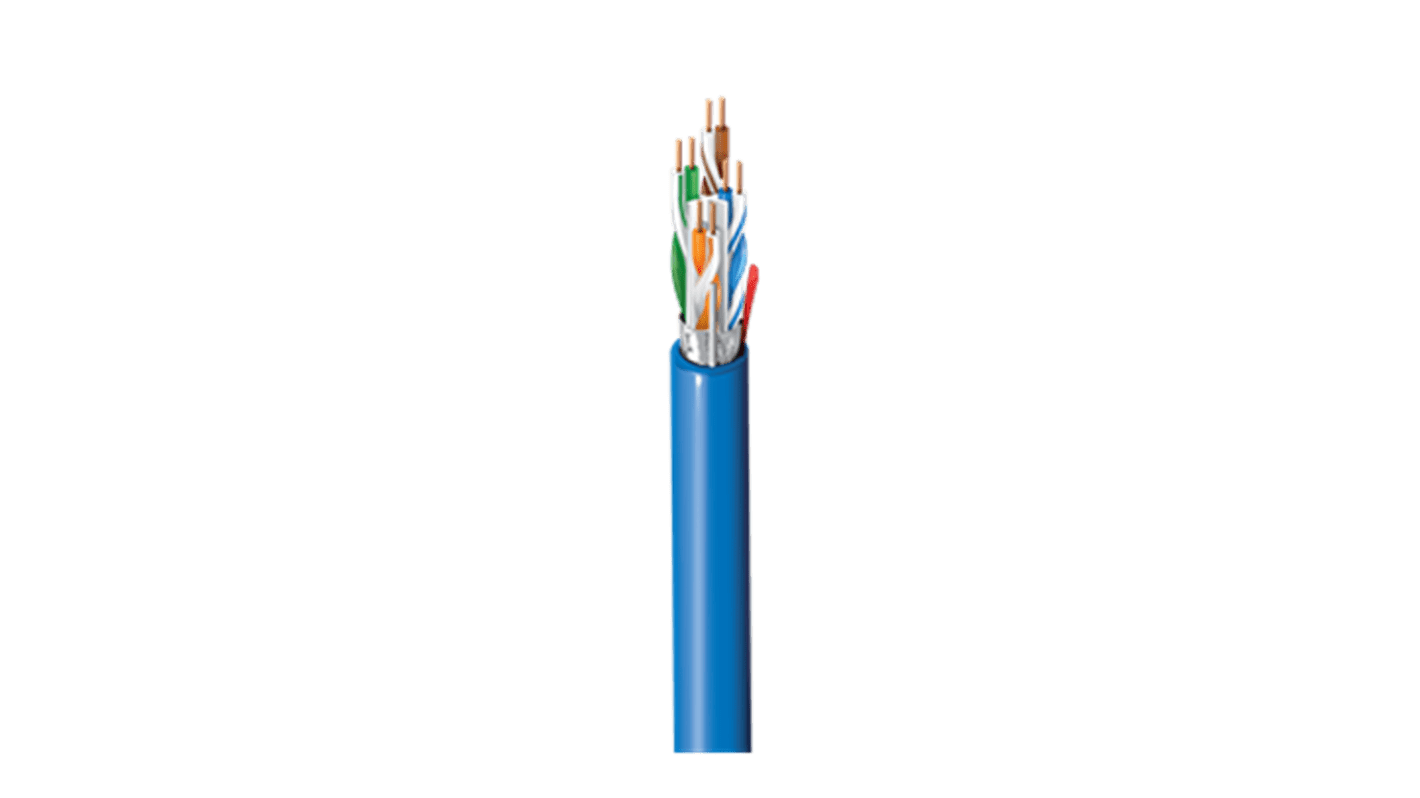

The Belden Cable is built for advanced Ethernet infrastructure where reliability and speed are critical. Its LSZH jacket ensures enhanced fire safety in commercial installations, while the Foiled Unshielded Twisted Pair design minimizes interference across longer distances. The construction is tailored to perform under demanding network environments with Category 6A compliance up to 625 MHz.
Shielded with Beldfoil and an AWG 26 solid tinned copper drain wire
Conductor setup includes 4 pairs of 23 AWG solid bare copper wires
Compliant with ISO/IEC 11801 to EN 50173-1 for high-performance structured cabling
Conductor setup includes 4 pairs of 23 AWG solid bare copper wires
Compliant with ISO/IEC 11801 to EN 50173-1 for high-performance structured cabling
