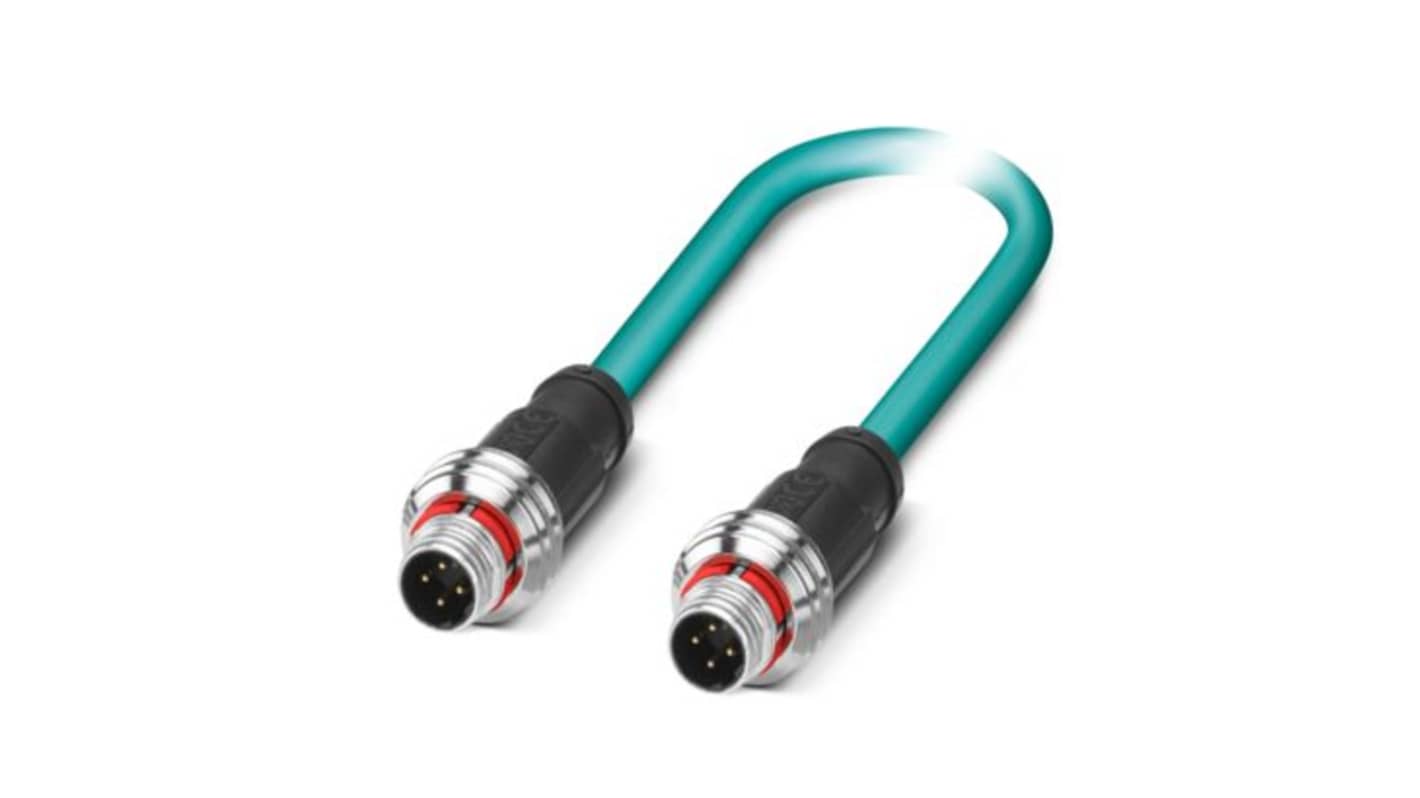

Phoenix Contact M12, 5 m Ethernet Cable Screened Polyurethane Sheath
- RS Stock No.:
- 518-906
- Mfr. Part No.:
- 1476051
- Brand:
- Phoenix Contact
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£56.13
(exc. VAT)
£67.36
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £56.13 |
| 5 + | £55.01 |
*price indicative
- RS Stock No.:
- 518-906
- Mfr. Part No.:
- 1476051
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | M12 | |
| Product Type | Ethernet Cable | |
| Cable Length | 5m | |
| Screened/Unscreened | Screened | |
| Jacket Material | Polyurethane | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC 61076 2 010, UL VW1, Ethernet CAT5 (IEC 11801), IEC 60332 1 2, UL AWM Style 20963, cULus ID: E335024, Halog EN free IEC 60754 1, EN 50288 2 2 | |
| Fire Behaviour | UN ECE-R 118.03 | |
| Core Strands | 7 | |
| Cross Sectional Area | 0.14 mm² | |
| Conductor Material | Bare Copper Wire | |
| Voltage | 100V | |
| Outside Diameter | 6.4mm | |
| Number of Cores | 4 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series M12 | ||
Product Type Ethernet Cable | ||
Cable Length 5m | ||
Screened/Unscreened Screened | ||
Jacket Material Polyurethane | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC 61076 2 010, UL VW1, Ethernet CAT5 (IEC 11801), IEC 60332 1 2, UL AWM Style 20963, cULus ID: E335024, Halog EN free IEC 60754 1, EN 50288 2 2 | ||
Fire Behaviour UN ECE-R 118.03 | ||
Core Strands 7 | ||
Cross Sectional Area 0.14 mm² | ||
Conductor Material Bare Copper Wire | ||
Voltage 100V | ||
Outside Diameter 6.4mm | ||
Number of Cores 4 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Network Cable is expertly designed to provide exceptional connectivity in demanding environments. This Ethernet CAT5 cable ensures reliable performance at speeds of up to 100 Mbps, making it ideal for applications requiring swift data transmission. Constructed with high-quality materials, it features a PUR halogen-free outer layer that not only enhances durability but also ensures safety in terms of fire resistance. With its advanced shielding technology, this cable significantly reduces electromagnetic interference, allowing for clearer signals over longer distances.
Withstands extreme temperatures offering reliable performance in varied conditions
Flexible design adapts to both fixed and dynamic installations effortlessly
Meets stringent electrical safety standards for added peace of mind
Conforms to EU RoHS regulations promoting responsible use and disposal
