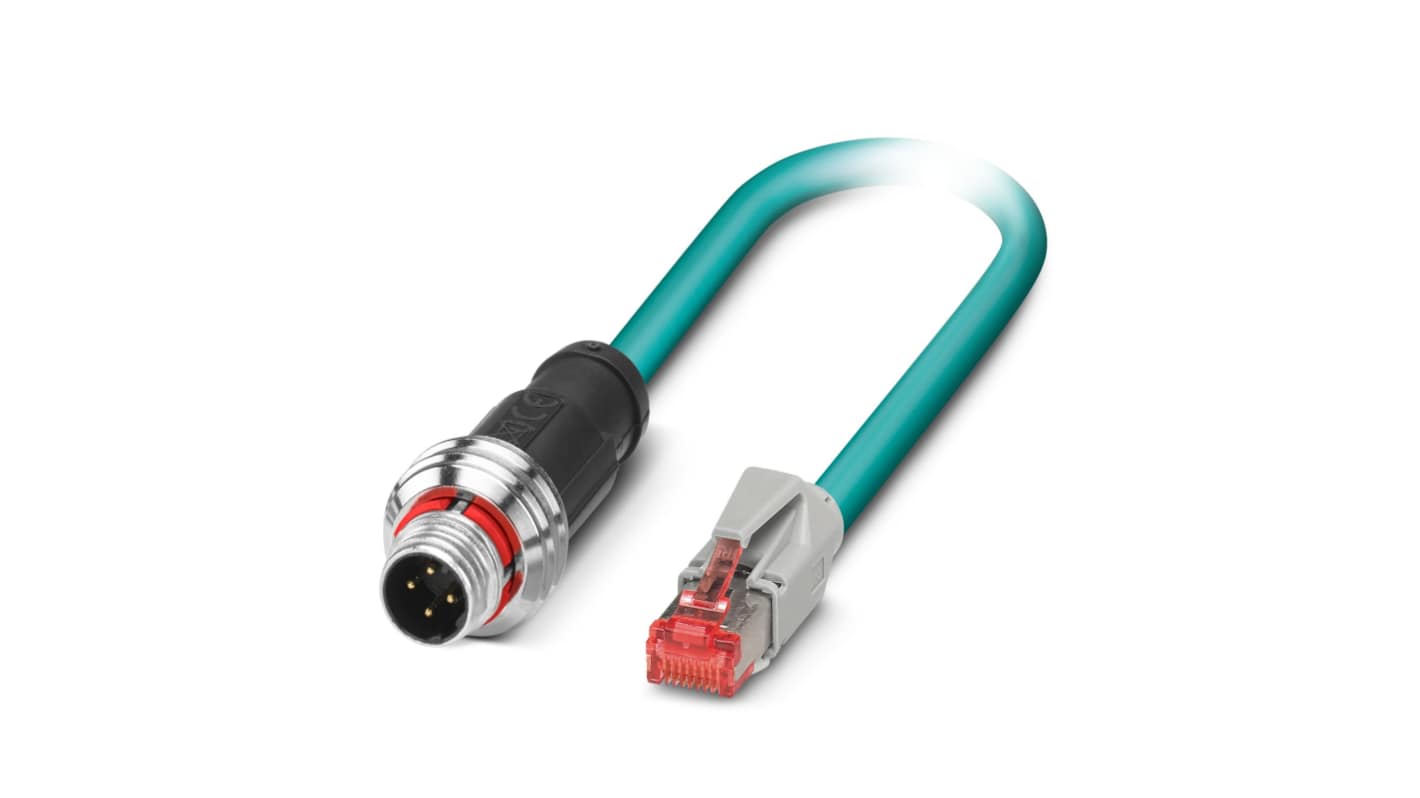

Phoenix Contact M12, RJ45, 1 m Ethernet Cable Screened Polyurethane Sheath

View all Ethernet Cable
Bulk discount available

Subtotal (1 unit)*

£36.27

(exc. VAT)

£43.52

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£36.27
5 +£35.54

*price indicative

RS Stock No.:
488-228
Mfr. Part No.:
1476023
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Ethernet Cable

Series

M12, RJ45

Cable Length

1m

Screened/Unscreened

Screened

Jacket Material

Polyurethane

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

85°C

Core Strands

7

Fire Behaviour

Halogen Free IEC 60754-1, IEC 60332-1-2, in acc. to UL VW1, Flame resistance according to UN ECE

Standards/Approvals

IEC 60754 1, EN 60811 2 1, IEC 60332 1 2, UN ECE R 118.03, cULus ID: E335024, UL VW1, UL AWM Style 20963, IEC 11801, EN 50288 2 2

Conductor Material

Bare Copper Wire

Voltage

100 V

Outside Diameter

6.4 mm

Number of Cores

4

Cross Sectional Area

0.14 to 2 mm²

COO (Country of Origin):
PL
The Phoenix Contact Network Cable is specially designed for Ethernet applications, integrating advanced shielding technology to ensure reliable data transmission at high speeds. With its durable PUR outer sheath, the cable is resistant to harsh environmental conditions, making it ideal for both fixed and flexible installations. The innovative plug configurations, featuring a straight M12 Push Pull connector and an RJ45 plug, ensure compatibility with various devices while maintaining an IP67 rating for water protection.

Capable of supporting transmission speeds of up to 100 Mbps

Robust construction withstands a wide range of temperatures

Environmentally compliant with EU RoHS and other regulations

Designed for easy installation with straightforward plug configurations
