Phoenix Contact M12, 10 m Ethernet Cable, Black Screened Polyurethane Sheath
- RS Stock No.:
- 483-962
- Mfr. Part No.:
- 1340750
- Brand:
- Phoenix Contact
Subtotal (1 pack of 15 units)*
£2,388.255
(exc. VAT)
£2,865.90
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 15 + | £159.217 | £2,388.26 |
*price indicative
- RS Stock No.:
- 483-962
- Mfr. Part No.:
- 1340750
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | M12 | |
| Product Type | Ethernet Cable | |
| Cable Length | 10m | |
| Screened/Unscreened | Screened | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Black | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 90°C | |
| Core Strands | 19 | |
| Fire Behaviour | UL 2556, Section 9.3, Halogen Free in accordance with DIN VDE 0472 part 815 | |
| Standards/Approvals | IEC 61076 2 113, UL AWM Style 20233 | |
| Voltage | 30V | |
| Outside Diameter | 8.8mm | |
| Conductor Material | Bare Copper Wire | |
| Number of Cores | 8 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series M12 | ||
Product Type Ethernet Cable | ||
Cable Length 10m | ||
Screened/Unscreened Screened | ||
Jacket Material Polyurethane | ||
Jacket Colour Black | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 90°C | ||
Core Strands 19 | ||
Fire Behaviour UL 2556, Section 9.3, Halogen Free in accordance with DIN VDE 0472 part 815 | ||
Standards/Approvals IEC 61076 2 113, UL AWM Style 20233 | ||
Voltage 30V | ||
Outside Diameter 8.8mm | ||
Conductor Material Bare Copper Wire | ||
Number of Cores 8 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Ethernet Hybrid CAT5 cable designed for high-speed data transmission and power delivery. It features halogen-free, shielded design with Advanced Shielding Technology, ensuring reliable performance in demanding environments. The cable is equipped with coded Y plug and socket and rated IP65/IP67 for protection against dust and water ingress.

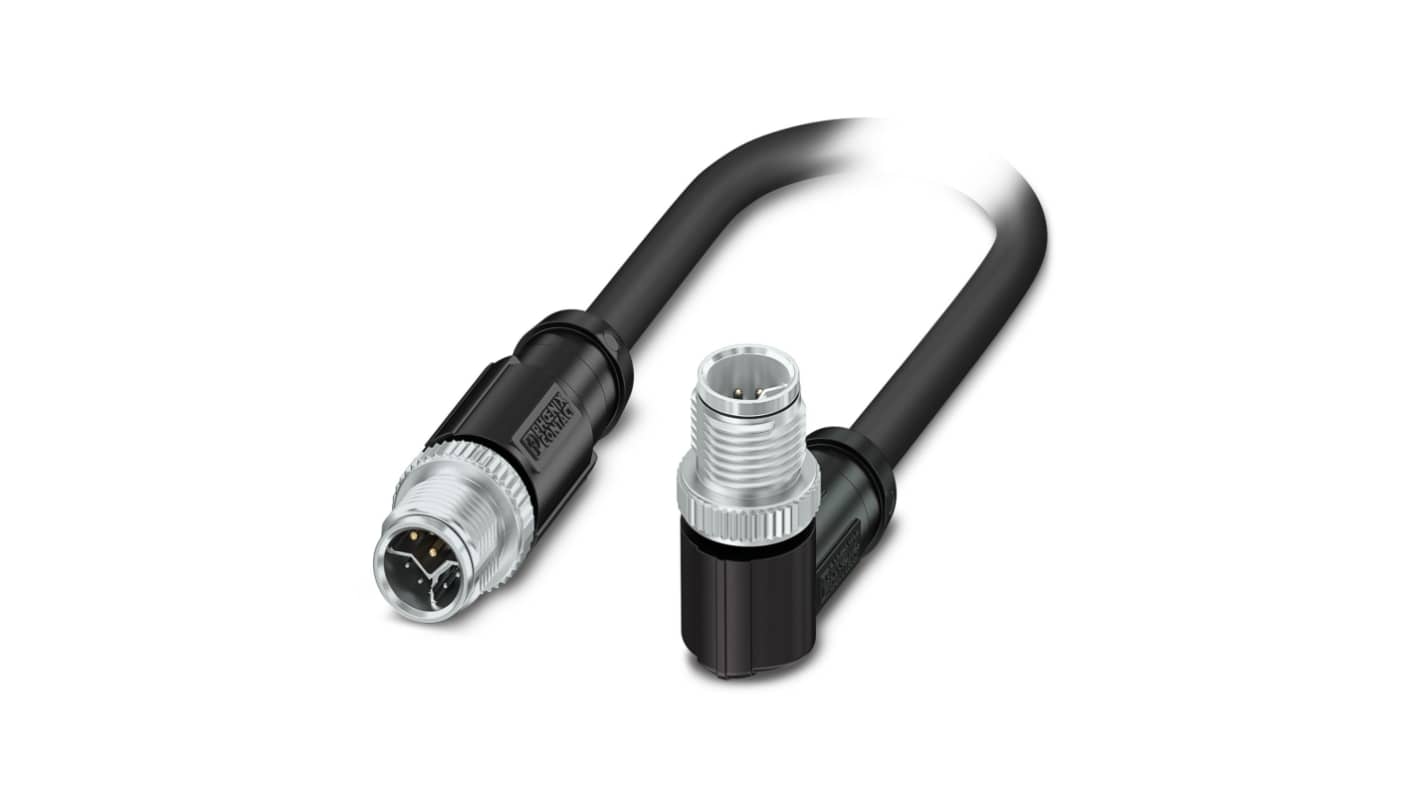

Plug straight M12 and Plug angled M12
Number of positions 8
cable length 10 m
UL 94 V0 Flammability rating
