RS PRO, 305m Cat6, Grey Unterminated to, Unshielded Unshielded, Unterminated PVC Sheath
- RS Stock No.:
- 199-206
- Brand:
- RS PRO
Subtotal (1 reel of 305 metres)*
£289.80
(exc. VAT)
£347.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 100 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £289.80 | £0.95 |
*price indicative
- RS Stock No.:
- 199-206
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
LAN Category | Cat6 | |
Length | 305m | |
Terminated/Unterminated | Unterminated | |
Shield Type | Unshielded | |
Connector 1 | Unterminated | |
Connector 1 Orientation | Straight | |
Shielded/Unshielded | Unshielded | |
Outer Sheath Material | PVC | |
Sheath Colour | Grey | |
Select all | ||
---|---|---|
Brand RS PRO | ||
LAN Category Cat6 | ||
Length 305m | ||
Terminated/Unterminated Unterminated | ||
Shield Type Unshielded | ||
Connector 1 Unterminated | ||
Connector 1 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Outer Sheath Material PVC | ||
Sheath Colour Grey | ||
- COO (Country of Origin):
- CN

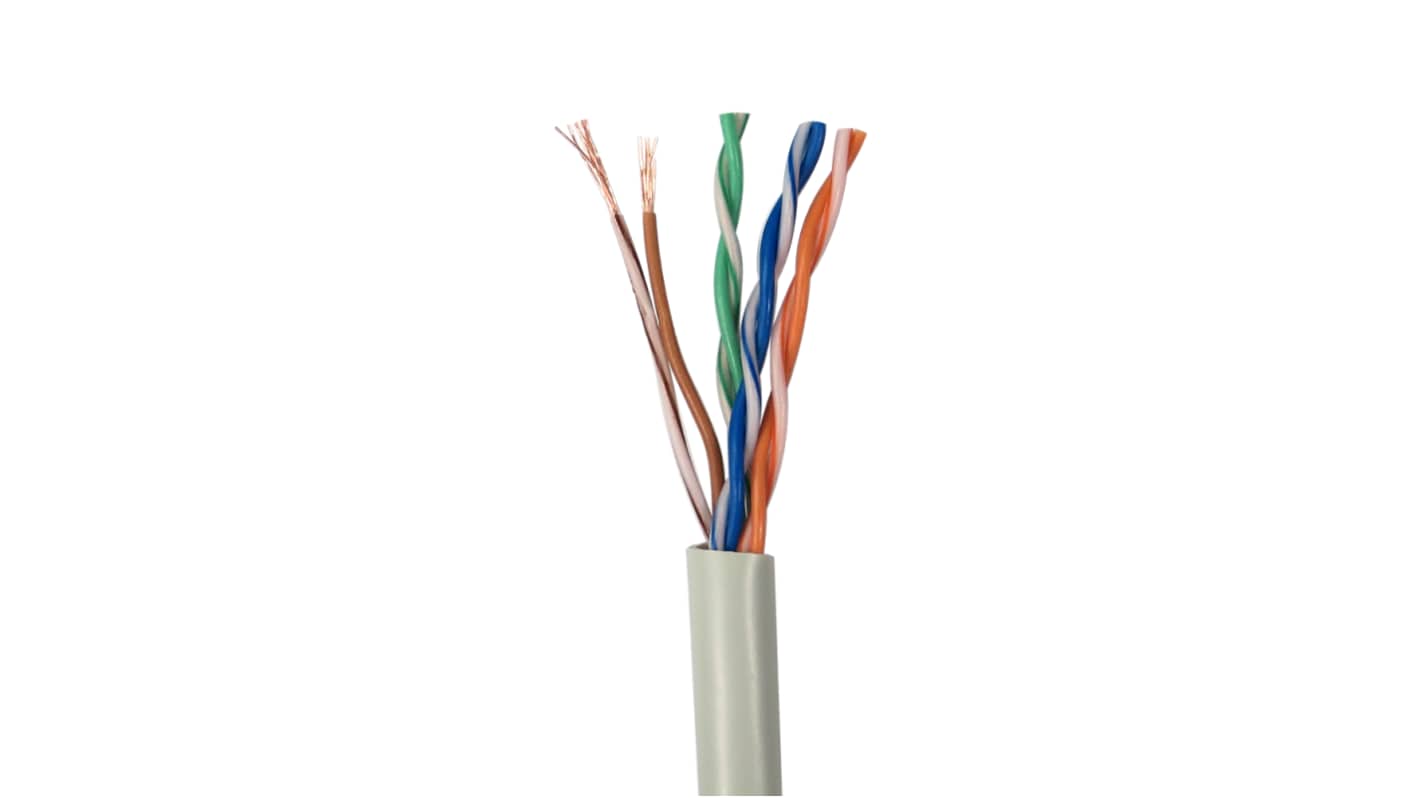

The RS Pro Unterminated Cat6 type cables have primary application use for both home and office computer networks. This cable is compliance with CE, UKCA, RoHS, REACH and UL standards. It features an IP67 rating, ensuring it is protected against dust and water immersion. It has 8 core strands made from PVC, providing reliable fire behaviour. WIth stranded conductor strand type and a 24 American Wire Gauge (AWG) it is optimized for applications that demand durability and performance.
Enhanced and high performance Cat6 cable for LAN applications or future proofing of structured cabling systems
Conforms to ANSI/TIA-568.2-D and ISO/IED 11801-1
HDPE insulation
UL E164469 approved cable
Backwards compatible to CAT 3 and CAT 5
Backwards compatible to CAT 5E
U/UTP cable
Operation Temperature of -20°C to 60°C
Conductor DC Resistance less than or equal to 87.6 Ω/1000m
Conforms to ANSI/TIA-568.2-D and ISO/IED 11801-1
HDPE insulation
UL E164469 approved cable
Backwards compatible to CAT 3 and CAT 5
Backwards compatible to CAT 5E
U/UTP cable
Operation Temperature of -20°C to 60°C
Conductor DC Resistance less than or equal to 87.6 Ω/1000m
