Subtotal (1 unit)*
£157.75
(exc. VAT)
£189.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £157.75 |
*price indicative
- RS Stock No.:
- 122-0534
- Mfr. Part No.:
- 48290101
- Brand:
- Socomec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Socomec | |
| Series | DIRIS Digiware C-31 | |
| Cutout Width | 18mm | |
| Cutout Height | 90mm | |
| Display Type | Digital | |
| Depth | 65mm | |
| Minimum Temperature | -10°C | |
| Maximum Temperature | +55°C | |
| Meter Type | Electronic | |
| Measurement Range | 100 → 240 V ac, Maximum of 24V dc | |
| Maximum Measurement | 24 V dc, 240 V ac | |
Select all | ||
|---|---|---|
Brand Socomec | ||
Series DIRIS Digiware C-31 | ||
Cutout Width 18mm | ||
Cutout Height 90mm | ||
Display Type Digital | ||
Depth 65mm | ||
Minimum Temperature -10°C | ||
Maximum Temperature +55°C | ||
Meter Type Electronic | ||
Measurement Range 100 → 240 V ac, Maximum of 24V dc | ||
Maximum Measurement 24 V dc, 240 V ac | ||
- COO (Country of Origin):
- PL

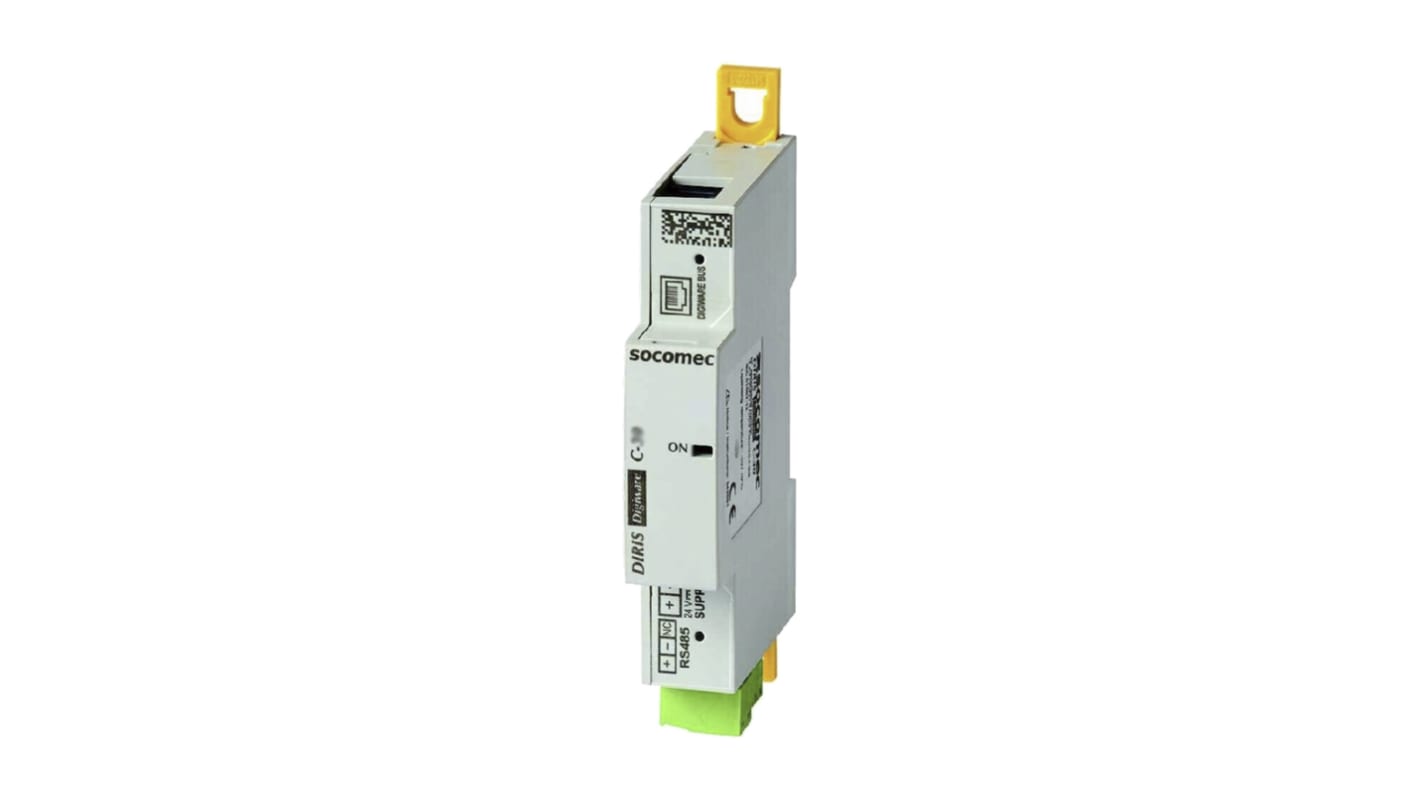

DIRIS Digiware C-31 Interface
DIRIS Digiware range is a hub of technological innovative products that revolutionises the way you measure. The range of products are flexible in installation and make connection and configuration easy. The innovative design and high performance of the DIRIS Digiware range make these products the most effective solution for metering consumption, measuring and monitoring electrical energy.
The Digiware range is suited for use in industrial and commercial applications.
The Digiware range is suited for use in industrial and commercial applications.
Features and Benefits of C-31 Interface
• No display mode
• Centralisation of DIRIS Digiware measurement data on RS485 Modbus
• 24 V dc power supply
• Digiware Bus and RS485 Modbus communication
• Centralisation of DIRIS Digiware measurement data on RS485 Modbus
• 24 V dc power supply
• Digiware Bus and RS485 Modbus communication
