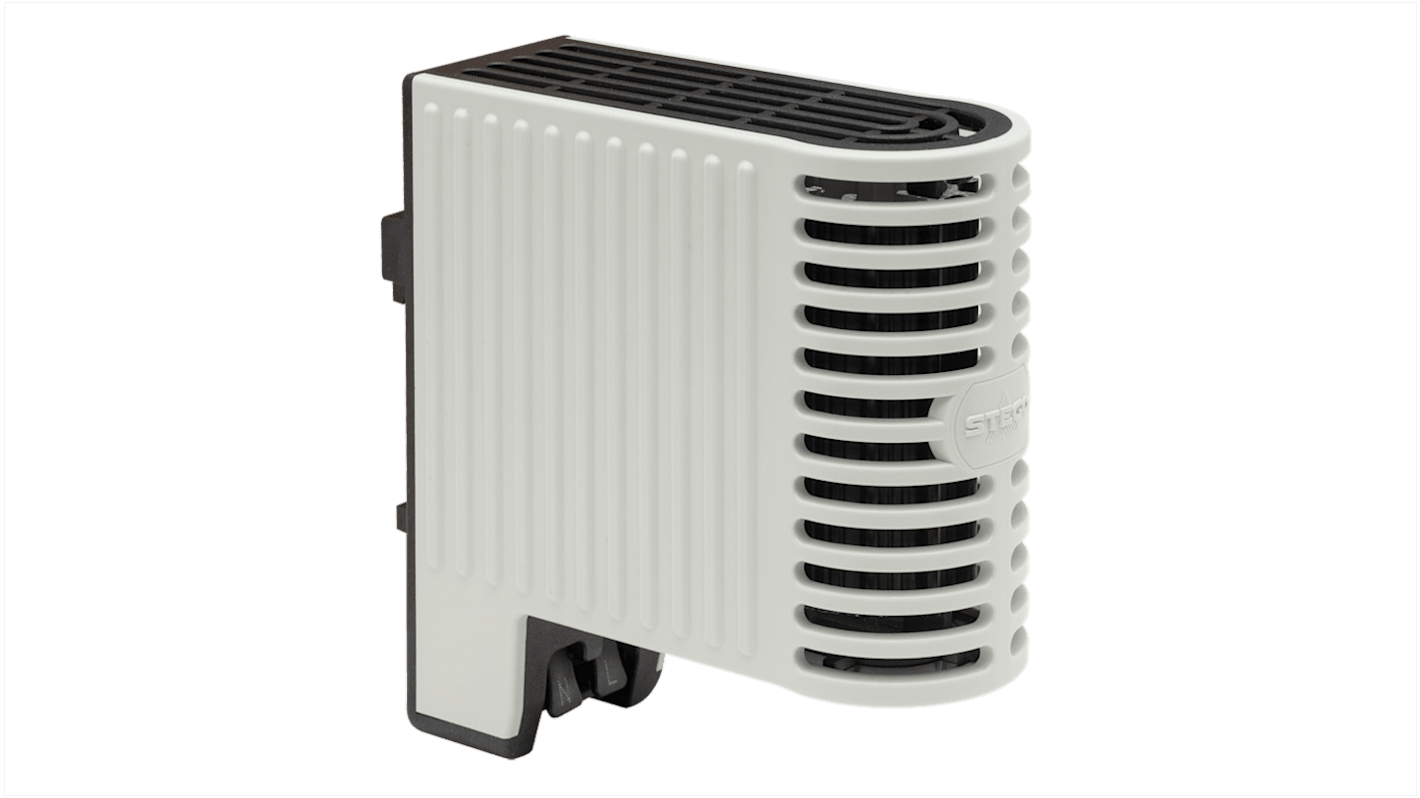

STEGO Enclosure Heater, 120V ac/dc, 240 V ac/dc, 30W Output, 80 °C 38mm x 99 mm
- RS Stock No.:
- 270-9884
- Mfr. Part No.:
- 06402.0-00
- Brand:
- STEGO
Subtotal (1 unit)*
£35.79
(exc. VAT)
£42.95
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £35.79 |
*price indicative
- RS Stock No.:
- 270-9884
- Mfr. Part No.:
- 06402.0-00
- Brand:
- STEGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STEGO | |
| Output Power | 30W | |
| Product Type | Enclosure Heater | |
| Supply Voltage | 120, 240V ac/dc | |
| Surface Temperature | 80°C | |
| Depth | 99mm | |
| Connection Type | Connection Terminal | |
| Mount Type | DIN Rail | |
| Width | 38mm | |
| IP Rating | IP20 | |
| Mounting Position | Vertical | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | VDE, EAC, UL File No. E234324, DIN EN 60068-2:64:2009-04 in connection with DIN EN IEC 61373:2011-04, DIN EN 60068-2-27:2010-02, Cat. 1 B | |
| Series | LTS 064 | |
| Nominal Current | 4A | |
| Select all | ||
|---|---|---|
Brand STEGO | ||
Output Power 30W | ||
Product Type Enclosure Heater | ||
Supply Voltage 120, 240V ac/dc | ||
Surface Temperature 80°C | ||
Depth 99mm | ||
Connection Type Connection Terminal | ||
Mount Type DIN Rail | ||
Width 38mm | ||
IP Rating IP20 | ||
Mounting Position Vertical | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals VDE, EAC, UL File No. E234324, DIN EN 60068-2:64:2009-04 in connection with DIN EN IEC 61373:2011-04, DIN EN 60068-2-27:2010-02, Cat. 1 B | ||
Series LTS 064 | ||
Nominal Current 4A | ||
The STEGO Enclosure Heater is a compact heater for the protection of electrical and electronic components in enclosures. Its design ensures great convection resulting in excellent heat dissipation. A touch safe plastic cover provides for low surface temperatures on the side of the device. The practical push in clamping terminal enables quick and easy electrical connection. The heaters are designed for continuous operation.
Wide voltage range
Earthed plastic casing
Low surface temperature
Shock and vibration proof
Heater body in loop design
