STEGO Enclosure Heater, 120V ac/dc, 240 V ac/dc, 150W Output, 80 °C 57mm x 140 mm
- RS Stock No.:
- 270-9892
- Mfr. Part No.:
- 06514.0-00
- Brand:
- STEGO
Subtotal (1 unit)*
£83.95
(exc. VAT)
£100.74
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 5 unit(s) shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £83.95 |
*price indicative
- RS Stock No.:
- 270-9892
- Mfr. Part No.:
- 06514.0-00
- Brand:
- STEGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STEGO | |
| Product Type | Enclosure Heater | |
| Output Power | 150W | |
| Supply Voltage | 120, 240V ac/dc | |
| Surface Temperature | 80°C | |
| Mount Type | DIN Rail | |
| Depth | 140mm | |
| Connection Type | Connection Terminal | |
| Width | 57mm | |
| IP Rating | IP20 | |
| Insulated PTC | Yes | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL File No. 234324, VDE, in connection with DIN EN IEC 61373:2011-04, EAC, DIN EN 60068-2:64:2009-04, DIN EN 60068-2-27:2010-02, Cat. 1 B | |
| Select all | ||
|---|---|---|
Brand STEGO | ||
Product Type Enclosure Heater | ||
Output Power 150W | ||
Supply Voltage 120, 240V ac/dc | ||
Surface Temperature 80°C | ||
Mount Type DIN Rail | ||
Depth 140mm | ||
Connection Type Connection Terminal | ||
Width 57mm | ||
IP Rating IP20 | ||
Insulated PTC Yes | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL File No. 234324, VDE, in connection with DIN EN IEC 61373:2011-04, EAC, DIN EN 60068-2:64:2009-04, DIN EN 60068-2-27:2010-02, Cat. 1 B | ||
- COO (Country of Origin):
- DE

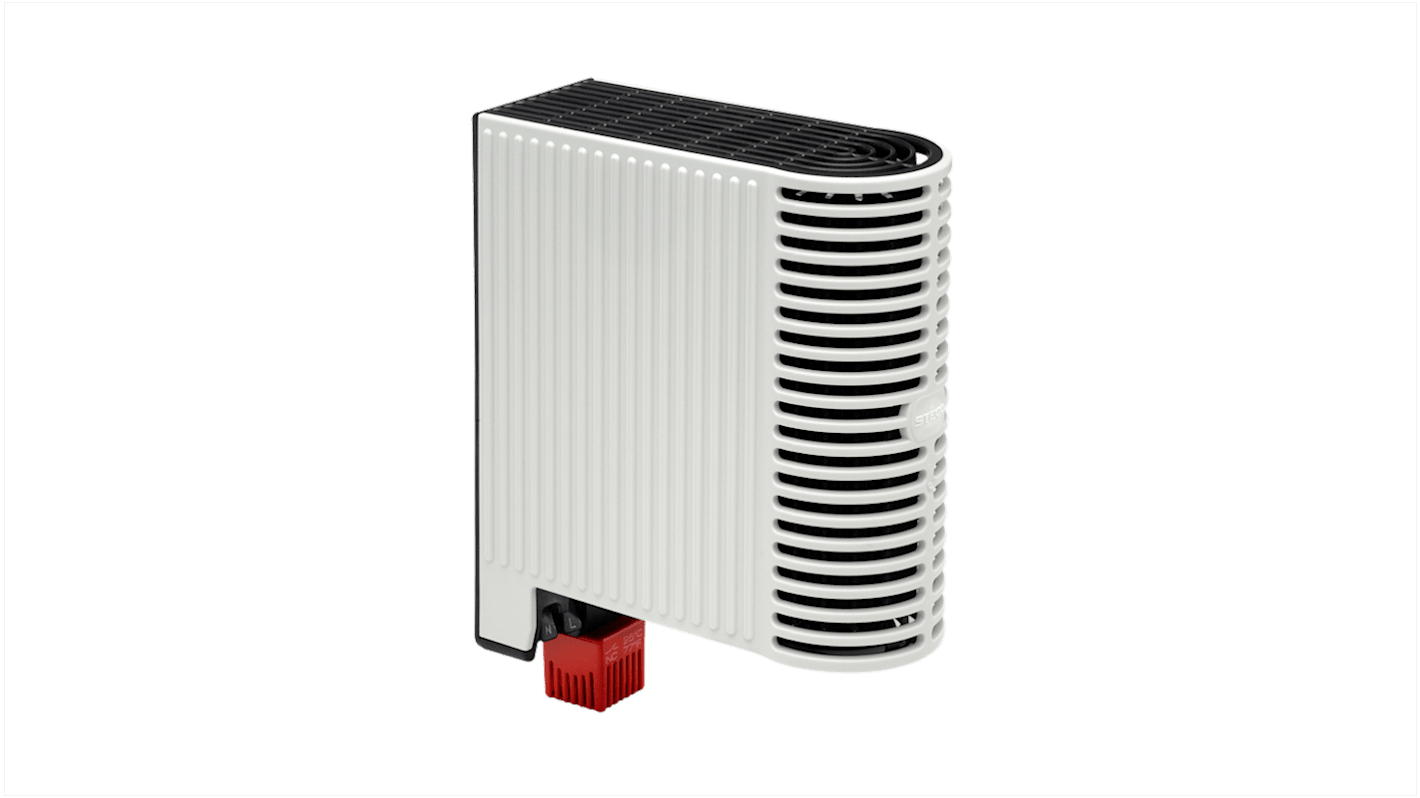

The STEGO Enclosure Heater is a compact heater with PTC heating elements for heating enclosures. The heater prevents low temperature and thus condensation. Its aluminium profile is designed to achieve an optimised chimney effect which ensures great convection resulting in excellent heat dissipation in the enclosure. The heaters are designed for continuous operation.
Wide voltage range
Earthed plastic casing
Low surface temperature
Shock and vibration proof
Heater body in loop design
