MPN

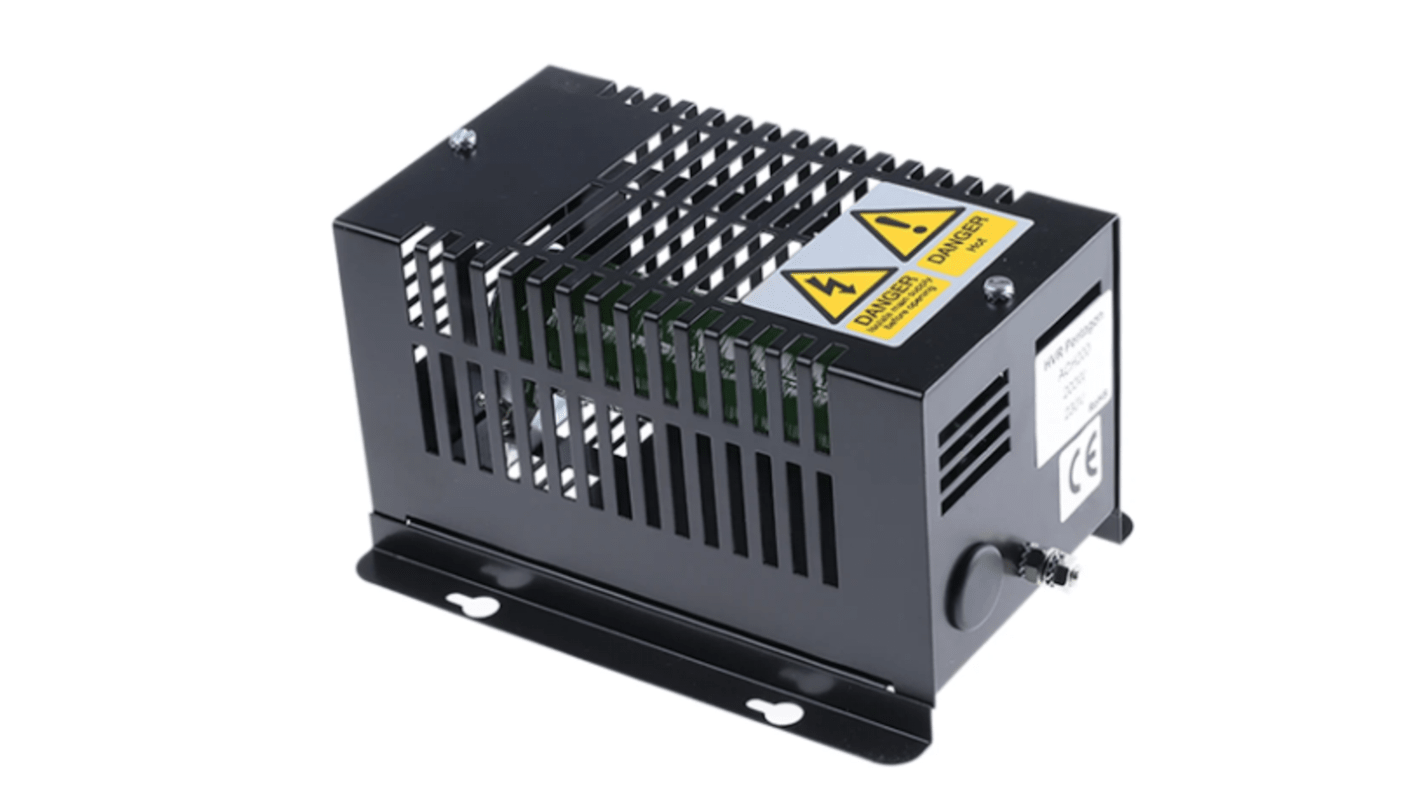

RS PRO Enclosure Heater, 230V ac, 475W Output, 475W Input, 280°C, 300mm x 182mm x 133mm

RS Stock No.:: 226-3692
Brand:: RS PRO

RS PRO Enclosure Heater, 230V ac, 475W Output, 475W Input, 280°C, 300mm x 182mm x 133mm

Subtotal (1 unit)*

£115.70

(exc. VAT)

£138.84

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

7 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£115.70

*price indicative

RS Stock No.:: 226-3692
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Output Power	475W
	Input Power Rating	475W
	Supply Voltage	230V ac
	Surface Temperature	280°C
	Depth	133mm
	Height	300mm
	Width	182mm
	Nominal Current	2.06A
	Frequency	60Hz

RS PRO Anti-Condensation Enclosure Heater

Introducing the range of RS PRO Enclosure Heaters, specifically designed for use in switch and control gear enclosures, providing a low wattage heater to prevent condensation inside the enclosure that could damage expensive equipment. Each heater has been designed with a vitreous enamelled resistor mounted in a sheet case and offers a removable, perforated steel sheet cover for ease of access. Small and versatile, the range of RS PRO enclosure heaters are the perfect choice for a variety of enclosure heating applications.

Features and Benefits:

The range of RS PRO enclosure heaters are designed as high quality, heavy-duty power resistor enclosures (IP20), manufactured from Zinc plated steel with a powder-coated finish for optimum protection

They contain a vitreous enamelled resistor that is mounted in a sheet steel case and have a removable perforated sheet steel cover for easy access allowing for quick visual inspection

In addition to this, there is a cable entry grommet at each end and M4 terminal screws are provided on the resistor for easy installation

They are incredibly versatile heating units that can be used in a range of applications but are especially suited to switch and control gear enclosures

This range of RS PRO anti-condensation heaters have been designed for use where a low wattage heater is required to prevent condensation and frost, and manage temperature fluctuations that could impact the electrical components and equipment housed inside the enclosure

Technical Features:

Dielectric withstand voltage is 2kV from terminal to ground

The temperature coefficient is 50ppm/°C

Rated at 1000W continuous at 280°C

Desirable to limit the surface temperature of the resistor

The rated voltage is 230V

Applications:

Enclosure heaters, also known as anti-condensation heaters, are specifically intended to be used to prevent condensation build-up and offer frost protection in control and equipment enclosures. They are ideal for self-regulating temperature management of electrical components and equipment housed in enclosures that may be exposed to moisture build-up and extreme temperature fluctuations, ensuring the best possible conditions for optimum performance and operation over long-term periods. They are typically used in automation and control gear and industrial industries, specifically for control and switchgear.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
