STEGO Enclosure Heater, 48V dc, 250W Output, 250W Input, 75 °C 182mm x 100 mm
- RS Stock No.:
- 182-9855
- Mfr. Part No.:
- 04640.2-00
- Brand:
- STEGO
Bulk discount available
Subtotal (1 unit)*
£188.39
(exc. VAT)
£226.07
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £188.39 |
| 5 + | £184.99 |
*price indicative
- RS Stock No.:
- 182-9855
- Mfr. Part No.:
- 04640.2-00
- Brand:
- STEGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STEGO | |
| Output Power | 250W | |
| Product Type | Enclosure Heater | |
| Input Power | 250W | |
| Supply Voltage | 48V dc | |
| Surface Temperature | 75°C | |
| Depth | 100mm | |
| Mount Type | DIN Rail | |
| Width | 182mm | |
| IP Rating | IP20 | |
| Mounting Position | Vertical | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | VDE, CE, cURus, RoHS | |
| Frequency | 60Hz | |
| Series | HGL 046 | |
| Select all | ||
|---|---|---|
Brand STEGO | ||
Output Power 250W | ||
Product Type Enclosure Heater | ||
Input Power 250W | ||
Supply Voltage 48V dc | ||
Surface Temperature 75°C | ||
Depth 100mm | ||
Mount Type DIN Rail | ||
Width 182mm | ||
IP Rating IP20 | ||
Mounting Position Vertical | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals VDE, CE, cURus, RoHS | ||
Frequency 60Hz | ||
Series HGL 046 | ||
- COO (Country of Origin):
- DE

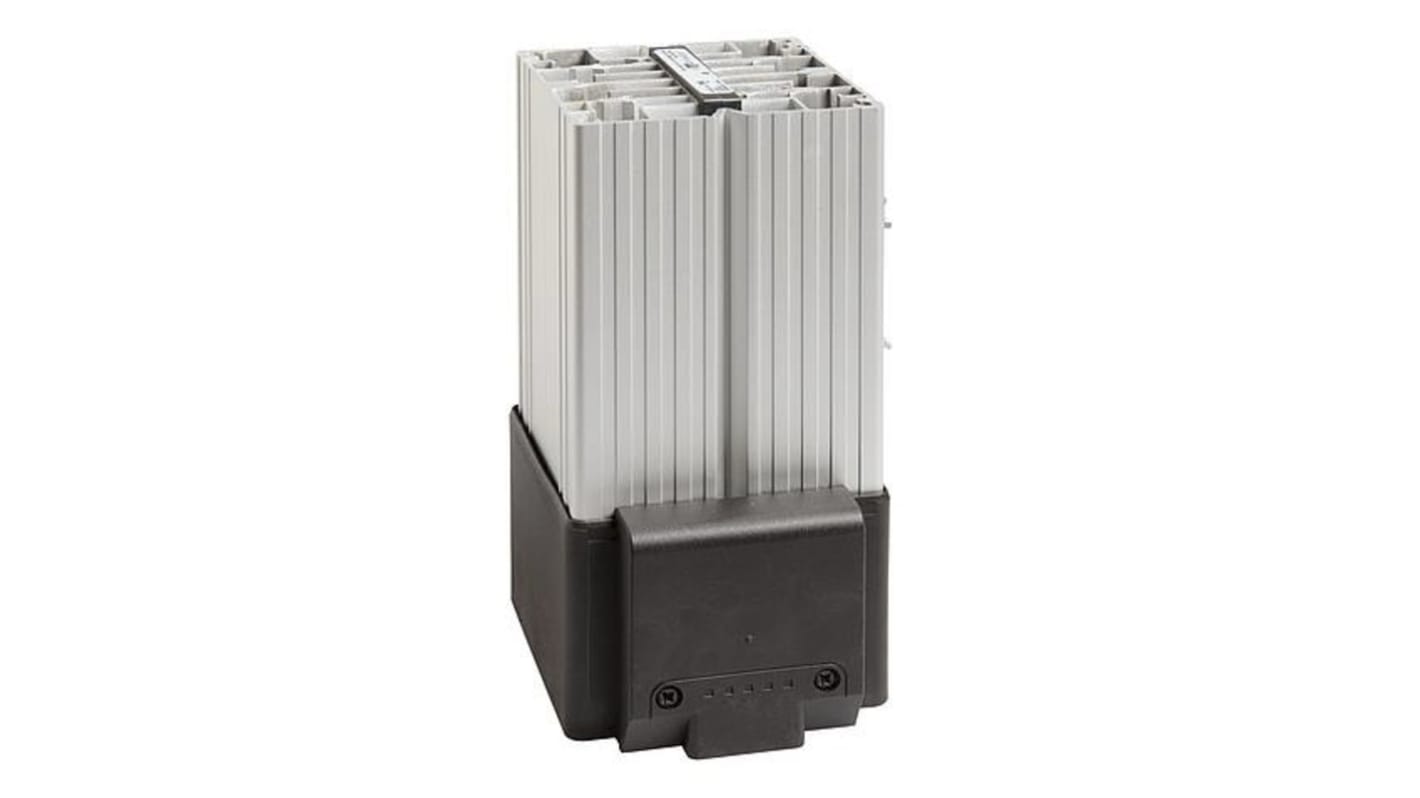

The compact HGL 046 fan heater prevents formation of condensation. The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures. The heater is wired using the internal terminal connectors.
Compact size
Built-in overheat protection
Long service life
DIN rail mountable
