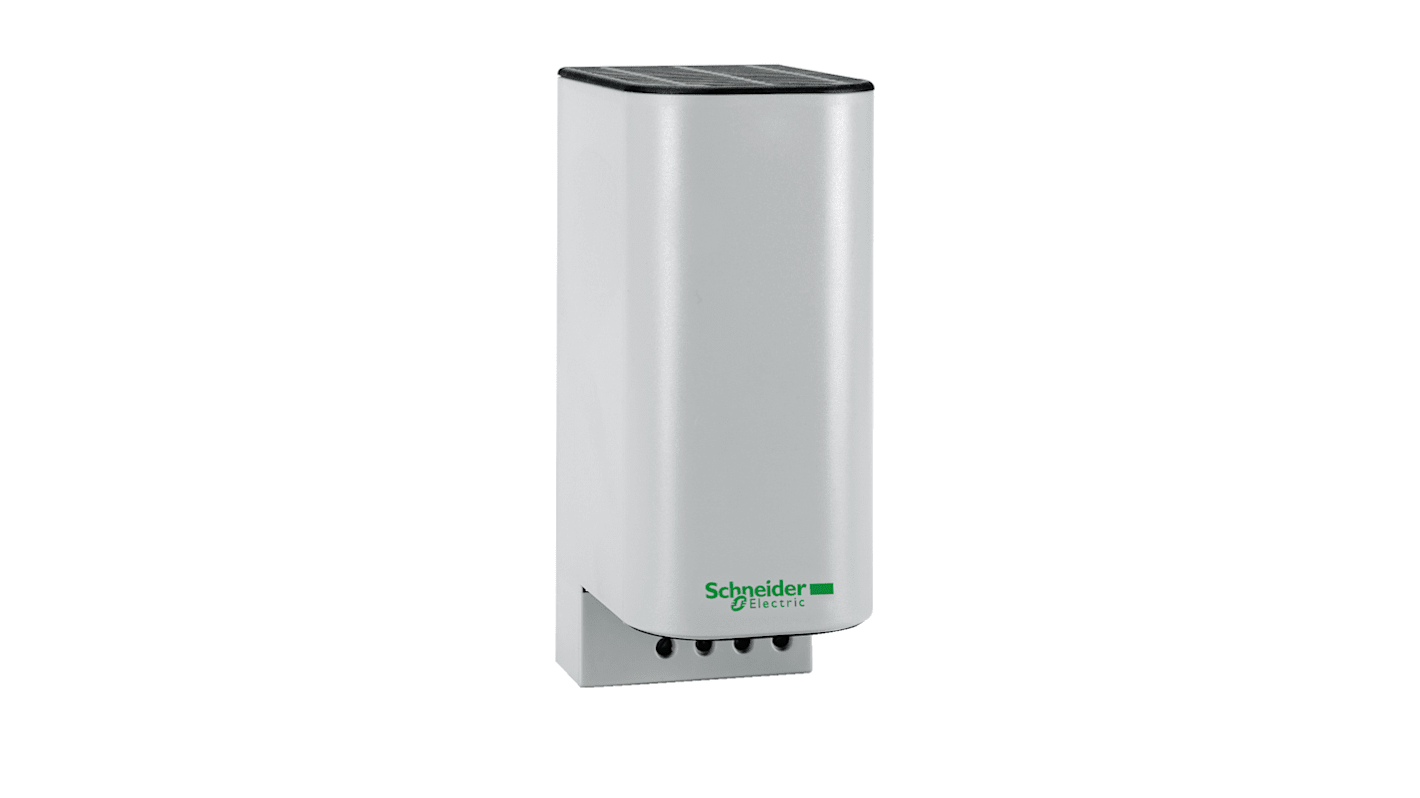

Schneider Electric Enclosure Heater, 12V dc, 24 V dc, 50W Output 38mm x 75 mm
- RS Stock No.:
- 211-2730
- Mfr. Part No.:
- NSYCR50WU1C
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£97.59
(exc. VAT)
£117.11
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship from another location
- Plus 13 unit(s) shipping from 14 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £97.59 |
*price indicative
- RS Stock No.:
- 211-2730
- Mfr. Part No.:
- NSYCR50WU1C
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Output Power | 50W | |
| Product Type | Enclosure Heater | |
| Supply Voltage | 12, 24V dc | |
| Connection Type | Screw Terminal | |
| Depth | 75mm | |
| Width | 38mm | |
| IP Rating | IP20 | |
| Insulated PTC | Yes | |
| Minimum Operating Temperature | -40°C | |
| Mounting Position | Vertical | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL, VDE | |
| Series | ClimaSys | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Output Power 50W | ||
Product Type Enclosure Heater | ||
Supply Voltage 12, 24V dc | ||
Connection Type Screw Terminal | ||
Depth 75mm | ||
Width 38mm | ||
IP Rating IP20 | ||
Insulated PTC Yes | ||
Minimum Operating Temperature -40°C | ||
Mounting Position Vertical | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL, VDE | ||
Series ClimaSys | ||
- COO (Country of Origin):
- DE
The Schneider Electric ClimaSys CR range are PTC resistance heaters prevent the formation of condensation and guarantee the ideal temperature for the correct operation of the electronic components in the enclosure. The resistance heaters for electrical and electronic enclosures are equipped with PTC-type heating devices (Positive Temperature Coefficient). The insulated PTC heater comes with a large range of power levels from 10 W to 550 W.
Large range of power levels
Innovating design
Easy installation and connection
High thermal efficiency
Improved convection and quick fixing
