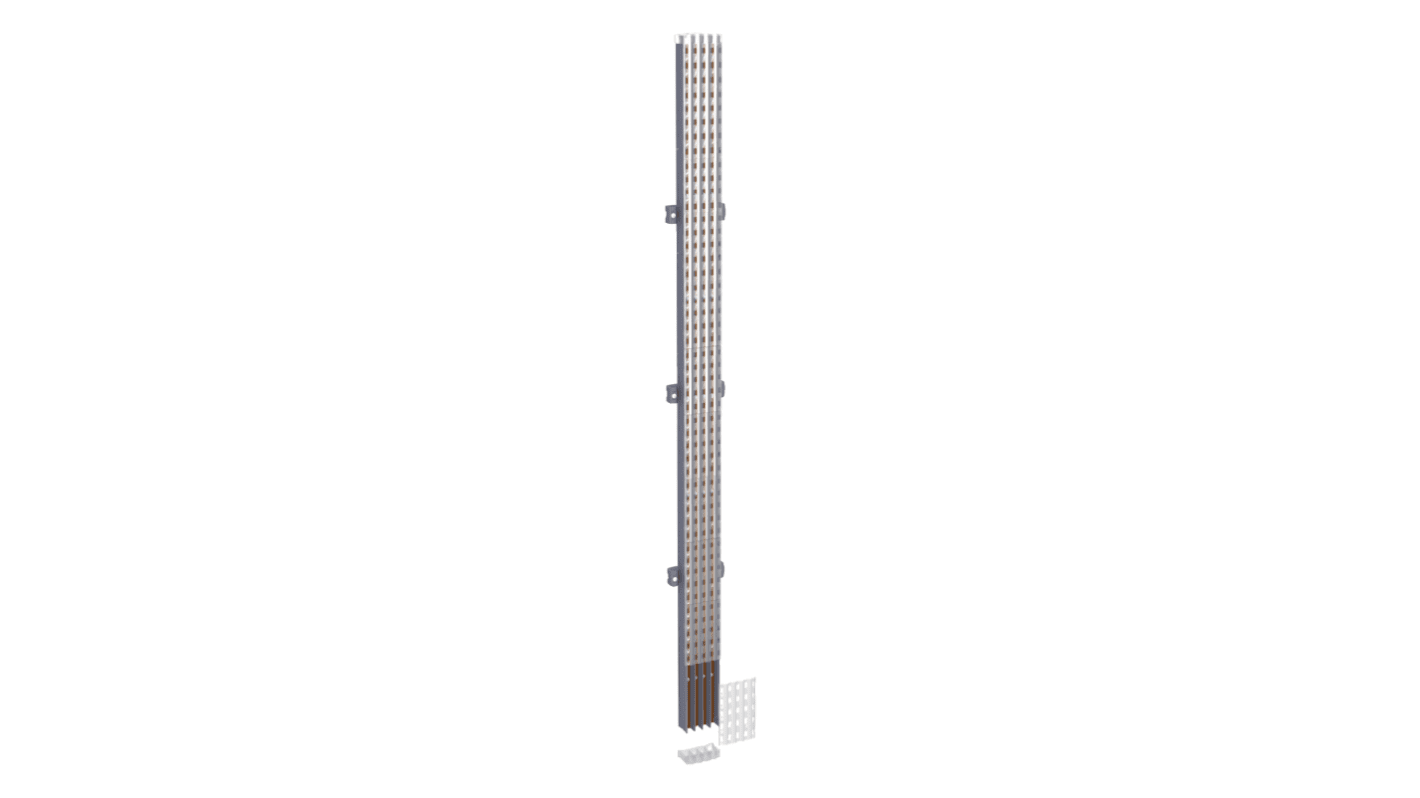

Schneider Electric Linergy Series Busbar for Use with PrismaSeT PrismaSeT P Enclosure, PrismaSeT PrismaSeT G Enclosure
- RS Stock No.:
- 288-0711
- Mfr. Part No.:
- LVS04128
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£480.66
(exc. VAT)
£576.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £480.66 |
*price indicative
- RS Stock No.:
- 288-0711
- Mfr. Part No.:
- LVS04128
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Accessory Type | Busbar | |
| Product Type | Busbar Support | |
| Length | 1.4m | |
| For Use With | PrismaSeT PrismaSeT P Enclosure, PrismaSeT PrismaSeT G Enclosure | |
| Width | 85mm | |
| Height | 85mm | |
| IP Rating | IPXXB | |
| Thread Size | M6 | |
| Mounting plate type | Insulated | |
| Series | Linergy | |
| Standards/Approvals | IEC 61439-1, IEC 61439-2 | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Accessory Type Busbar | ||
Product Type Busbar Support | ||
Length 1.4m | ||
For Use With PrismaSeT PrismaSeT P Enclosure, PrismaSeT PrismaSeT G Enclosure | ||
Width 85mm | ||
Height 85mm | ||
IP Rating IPXXB | ||
Thread Size M6 | ||
Mounting plate type Insulated | ||
Series Linergy | ||
Standards/Approvals IEC 61439-1, IEC 61439-2 | ||
Hazardous Area Certification NO | ||
The Schneider Electric Insulated Busbar 400A from SCHNEIDER is a reliable and high quality electrical component designed for use in various applications. With a rated operational current of 400A and a length of 1400mm, this busbar is perfect for ensuring efficient electrical connections in a range of settings. The product is also environmentally friendly, meeting Green Premium standards and complying with relevant regulations.
Rated insulation voltage of 750V AC for safe operation
Rated impulse withstand voltage of 8kV for enhanced durability
Short time withstand current of 20kA for reliable performance under high loads
Rated peak withstand current of 52.5kA to protect against sudden surges
M6 threaded hole connection for easy installation
Compliant with EU RoHS Directive for environmental sustainability
