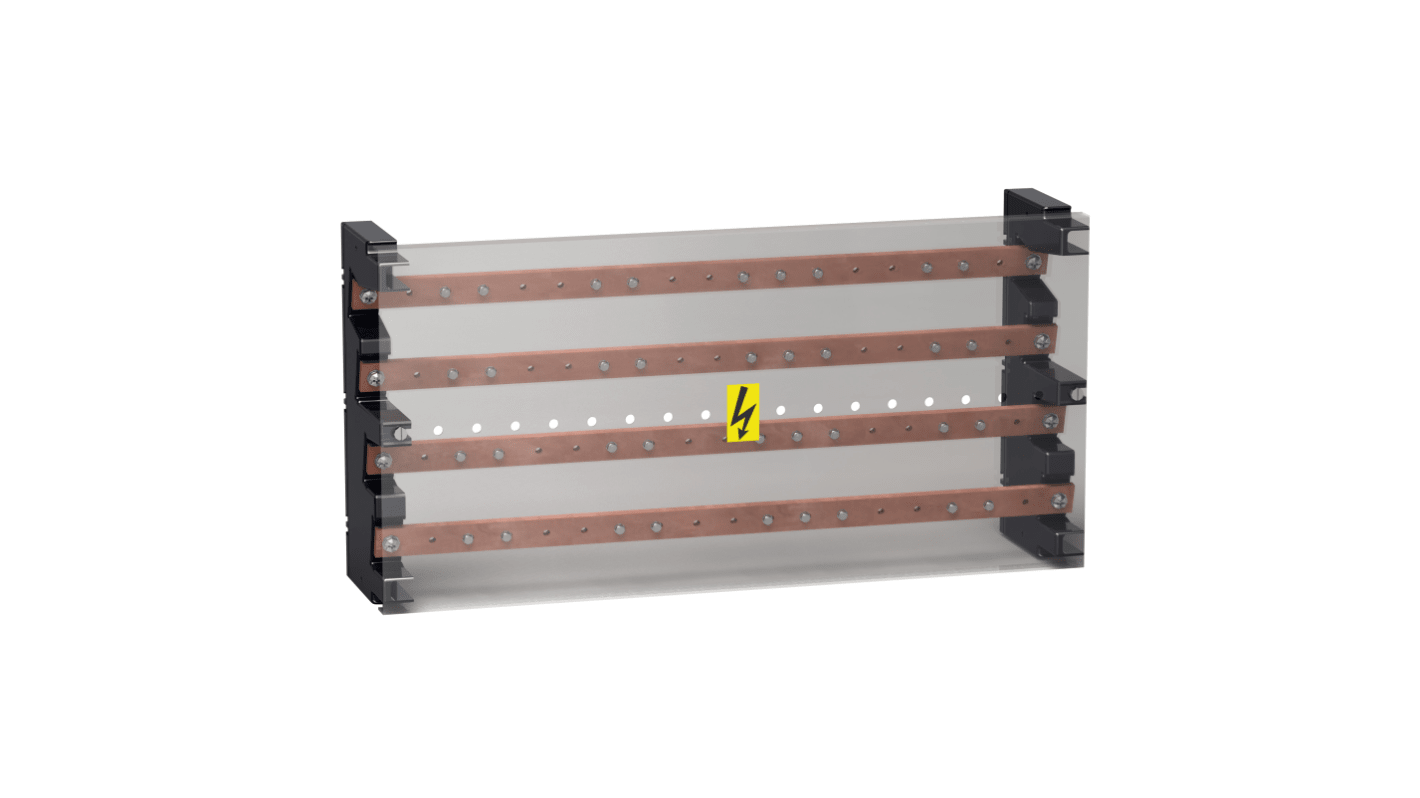

Schneider Electric Linergy Series Power Distribution Block for Use with PrismaSeT PrismaSeT G Enclosure, Spacial
- RS Stock No.:
- 288-0694
- Mfr. Part No.:
- LVS04052
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£146.24
(exc. VAT)
£175.49
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £146.24 |
*price indicative
- RS Stock No.:
- 288-0694
- Mfr. Part No.:
- LVS04052
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Accessory Type | Power Distribution Block | |
| Product Type | Stepped Distribution Block | |
| Length | 236mm | |
| For Use With | PrismaSeT PrismaSeT G Enclosure, Spacial Enclosures, PrismaSeT PrismaSeT P Enclosure | |
| Width | 470mm | |
| Height | 235mm | |
| IP Rating | IPXXB | |
| Thread Size | M6 | |
| Mounting plate type | Plain | |
| Series | Linergy | |
| Standards/Approvals | IEC 61439-1, IEC 61439-2, inside enclosure | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Accessory Type Power Distribution Block | ||
Product Type Stepped Distribution Block | ||
Length 236mm | ||
For Use With PrismaSeT PrismaSeT G Enclosure, Spacial Enclosures, PrismaSeT PrismaSeT P Enclosure | ||
Width 470mm | ||
Height 235mm | ||
IP Rating IPXXB | ||
Thread Size M6 | ||
Mounting plate type Plain | ||
Series Linergy | ||
Standards/Approvals IEC 61439-1, IEC 61439-2, inside enclosure | ||
Hazardous Area Certification NO | ||
The Schneider Electric Multi-stage distribution block from SCHNEIDER, part of the Linergy range, is designed to provide reliable power distribution with a rated operational current of 160A. It offers high insulation voltage and short-time withstand current, making it suitable for various applications in industrial settings. With a compact design and easy installation, this product ensures efficient power distribution in PrismaSeT enclosures.
Rated operational voltage of 440V AC for reliable performance
Impulse withstand voltage of 8kV for enhanced durability
Rated peak withstand current of 30kA to handle surges
Busbar cross section of 15 x 5 mm for efficient power transfer
Compliant with IEC standards for safety and quality assurance
Green Premium product with sustainable offer status for eco conscious users
