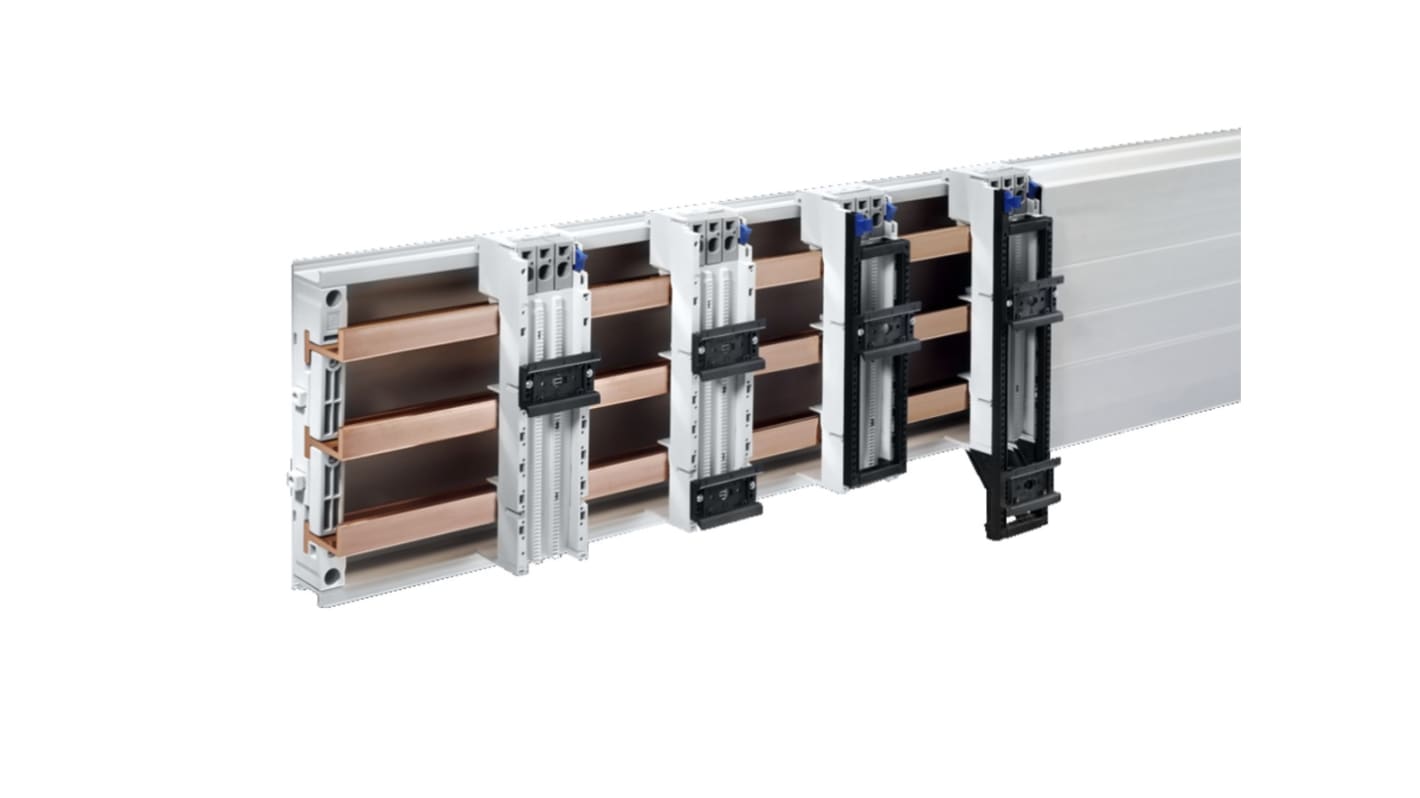

Rittal SV 9340 Series Polyamide Adapter for Use with Busbar Systems, 55 x 208mm
- RS Stock No.:
- 239-9276
- Mfr. Part No.:
- 9340660
- Brand:
- Rittal
Subtotal (1 unit)*
£33.38
(exc. VAT)
£40.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £33.38 |
*price indicative
- RS Stock No.:
- 239-9276
- Mfr. Part No.:
- 9340660
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Type | Adapter | |
| For Use With | Busbar Systems | |
| Width | 55mm | |
| Material | Polyamide | |
| Dimensions | 55 x 208mm | |
| Height | 208mm | |
| Colour | RAL 7035 | |
| Series | SV 9340 | |
| Quantity | 1 | |
Select all | ||
|---|---|---|
Brand Rittal | ||
Type Adapter | ||
For Use With Busbar Systems | ||
Width 55mm | ||
Material Polyamide | ||
Dimensions 55 x 208mm | ||
Height 208mm | ||
Colour RAL 7035 | ||
Series SV 9340 | ||
Quantity 1 | ||
RoHS Status: Exempt
Rittal Connection Terminals, 3 Poles, 32A Current Rating - OM Series - 9340660
Build a modular setup for components on your busbar system with these connection terminals from Rittal. Their 3-pole design offers enough space for you to assemble your multiphase electrical network. Thanks to a current rating of 32A, they'll meet the needs of your high-power devices. This unit is set on a rail support frame that lends a helping hand to keep it steady in your enclosure.
Features & Benefits
• Tension spring clamp for a secure hold on conductors
• Fits round conductor sizes between 1.5 and 6mm² for versatility
• PA body for resistance to wear and abrasion
• Fits round conductor sizes between 1.5 and 6mm² for versatility
• PA body for resistance to wear and abrasion
Applications
• Manufacturing plants
• Power stations
• Data centres
• Packaging facilities
• Power stations
• Data centres
• Packaging facilities
What busbar sizes can I use these terminals with?
You can fit these terminals on busbars with a cross-section height of 5 and 10mm, so they're a versatile choice for wiring in your enclosure.
