Forming part of Eaton's RMQ Titan range of emergency buttons, the M22 emergency buttons provide a solution for control circuit devices within a multitude of applications, but more specifically machines and panel building. It can sometimes be referred to as controlled stop emergency button, this is because of the nature of what it has been designed to do - stop, in the case of an emergency through the push of a button.

Designed for electrical automation and control environments, emergency stop button switches are commonly found in button stations where users may be sitting at a control desk, within suspended operator panels or in a control panel. Suitable for a wide range of emergency stop and safety applications including factory conveyor belts, escalators and control panels.

• Ergonomic mushroom head button design provides ease of use
• 22.5 mm cutout diameter
• Mechanical lifespan of over 100,000 operations
• Operating temperature of -25 to +70°C
• Low profile plastic design gives an attractive modern look and feel
• The high degrees of protection in the front (up to IP69K) and at the back (IP65) of these devices make the perfect choice for applications in which oil-tight protection from dirt or liquids is required.
• The push button is supplied as a complete unit, enabling easy installation for worldwide applications
• Twist to reset, pull to reset and key reset models available
• M22 range features adaptable functionalities

A general-purpose push button switch is used for controls, e.g., starting machine operation or simply switching modes. However, a push button switch for emergency stop is mainly used as a safety measure to stop hazardous events.

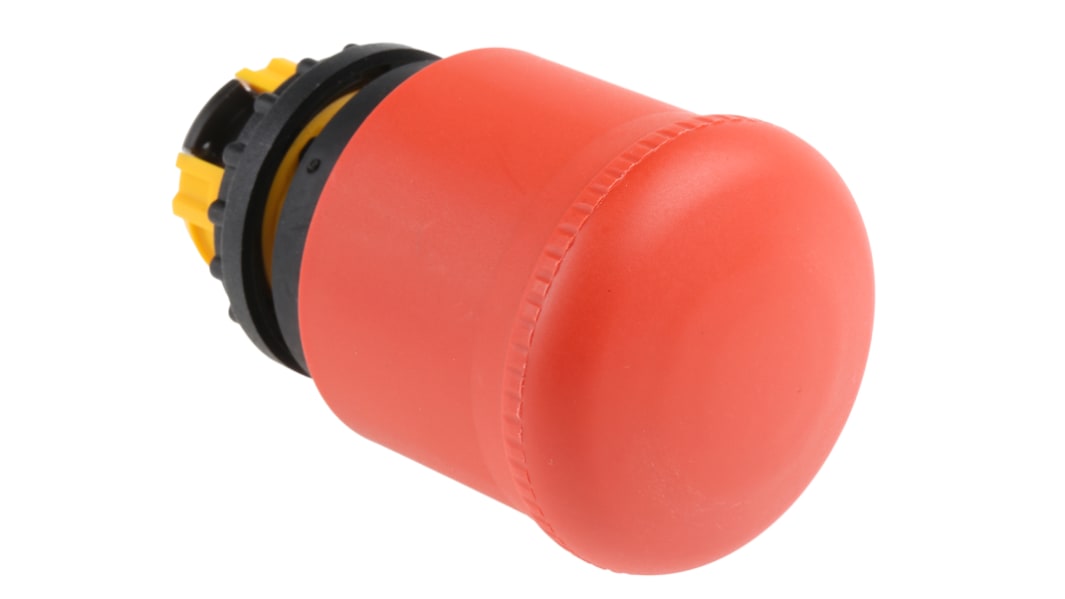

This emergency stop push button from the RMQ-Titan series features a mushroom push button switch with a pull-release mechanism. The panel-mounted device has a cutout diameter of 22mm and is constructed from durable plastic, operating efficiently in challenging environments.

• Non-illuminated design reduces unnecessary distractions
• Dust and moisture resistant
• SPDT contact configuration for versatile connectivity
• Mechanical lifespan of 100,000 operations supports longevity

• Emergency shutdown in machinery control
• Operational safety in manufacturing settings

Yes, it operates in temperatures from -25°C to 70°C.

Yes, the IP66 rating offers protection against dust and water.

Yes, it is suitable for installations in electrical cabinets and panels.

Eaton formerly known as Moeller
