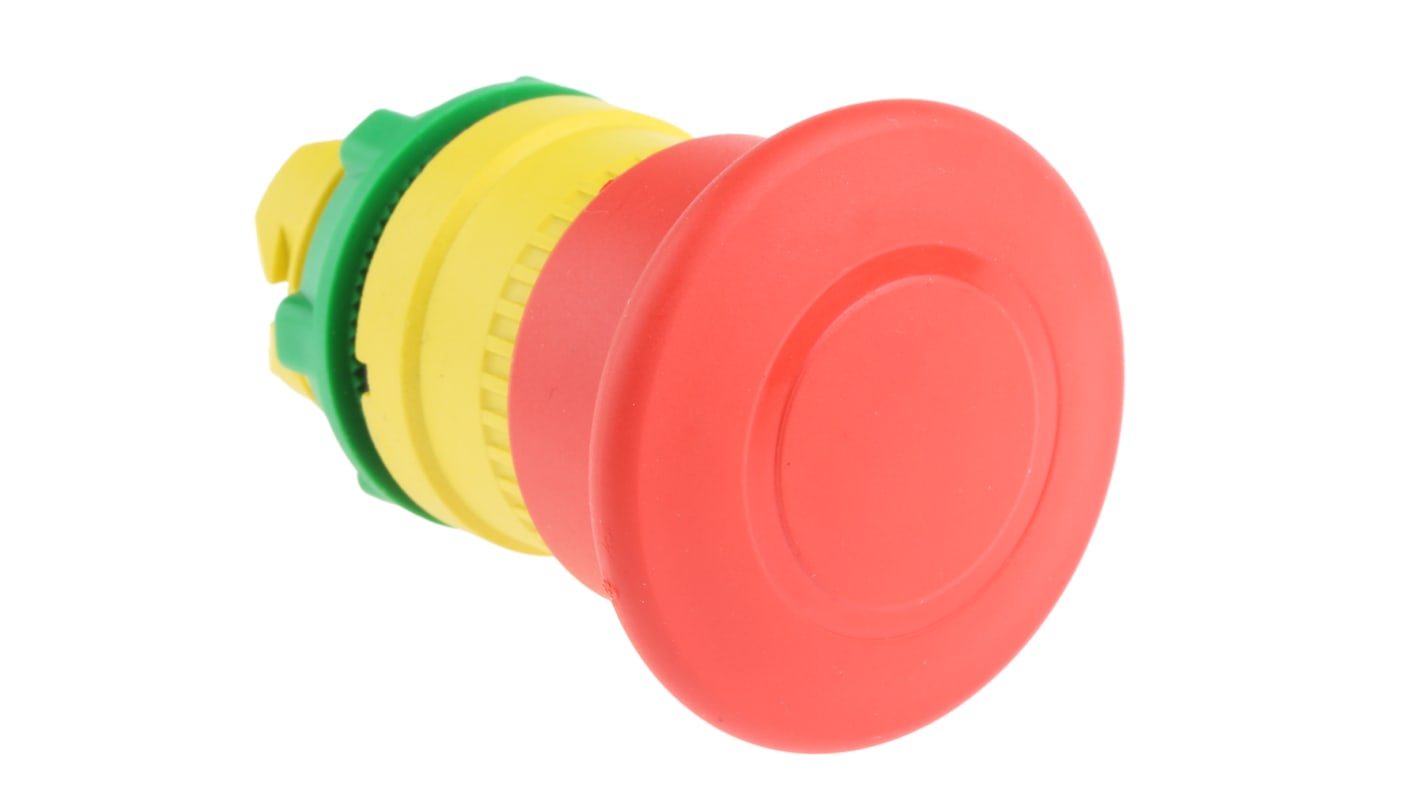

Schneider Electric Harmony Series Pull Release Emergency Stop Push Button, Panel, 22 mm Cutout, IP69K, IP66, IP67

RS Stock No.:: 609-3092
Distrelec Article No.:: 135-12-284
Mfr. Part No.:: ZB5AT84
Brand:: Schneider Electric

Schneider Electric Harmony Series Pull Release Emergency Stop Push Button, Panel, 22 mm Cutout, IP69K, IP66, IP67

Subtotal (1 unit)*

£23.57

(exc. VAT)

£28.28

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

41 unit(s) ready to ship
Plus 90 unit(s) ready to ship from another location
Plus 47 unit(s) shipping from 15 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£23.57

*price indicative

Complete Your Emergency Stop Assembly with SE Push Button Contact Blocks

Achieve dependable emergency shutdown performance by pairing Schneider Electric emergency stop push buttons with certified push button contact blocks — precision-engineered for safety and compliance.

Shop Here

RS Stock No.:: 609-3092
Distrelec Article No.:: 135-12-284
Mfr. Part No.:: ZB5AT84
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Mount Type	Panel
	Product Type	Emergency Stop Push Button
	Cutout Diameter	22mm
	Housing Material	Plastic
	Push Button Actuation	Pull Release
	Illuminated	No
	Series	Harmony
	IP Rating	IP69K, IP66, IP67
	Colour	Red
	Terminal Type	Screw Clamp
	Head Style	Mushroom
	Depth	56mm
	Hazardous Area Certification	No
	Head Diameter	40mm
	Standards/Approvals	UL 508, EN/ISO 13850, EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60204-1, GB 14048.5, EN/IEC 60947-1, EN/IEC 60947-5-1, IEC 60364-5-53, JIS C8201-5-1, JIS C8201-1
	Length	880000.00mm
	Width	40mm
	Push Button Material	Plastic

	Select all
	Brand Schneider Electric
	Mount Type Panel
	Product Type Emergency Stop Push Button
	Cutout Diameter 22mm
	Housing Material Plastic
	Push Button Actuation Pull Release
	Illuminated No
	Series Harmony
	IP Rating IP69K, IP66, IP67
	Colour Red
	Terminal Type Screw Clamp
	Head Style Mushroom
	Depth 56mm
	Hazardous Area Certification No
	Head Diameter 40mm
	Standards/Approvals UL 508, EN/ISO 13850, EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60204-1, GB 14048.5, EN/IEC 60947-1, EN/IEC 60947-5-1, IEC 60364-5-53, JIS C8201-5-1, JIS C8201-1
	Length 880000.00mm
	Width 40mm
	Push Button Material Plastic

COO (Country of Origin):: CZ

Schneider Electric Harmony XB5 Series Emergency Stop Push Button, 22mm Cutout Diameter, IP66 Rating - ZB5AT84

This emergency stop push button is designed for industrial applications requiring a reliable safety mechanism. With a panel mount configuration and a cutout diameter of 22mm, it ensures easy installation in various control panels. The device features a striking red round push button, measuring 40mm in diameter, making it easily identifiable in any environment.

Features & Benefits

• High IP66 IP67 and IP69K ratings protect against dust and water
• The pull release actuation method offers simple emergency disengagement
• Constructed from Durable plastic for longevity and impact resistance
• Compact dimensions enhance versatility in limited spaces
• Specific to industrial settings ensuring quick access during emergencies

Applications

• Ideal for machine control interfaces requiring safety measures
• Widely used in assembly lines and manufacturing processes
• Suitable for various automation and electrical control systems
• Effective in environments demanding high ingress protection ratings

How does the IP rating contribute to its functionality in tough environments?

The IP66, IP67, and IP69K ratings ensure that the button remains functional and reliable in harsh conditions, protecting it from water ingress and dust, which can affect electronic components.

What is the significance of the pull release actuation?

This actuation method allows users to quickly disengage machinery in emergencies, providing a safe and immediate response to potential hazards in industrial settings.

What materials are used in its construction and how do they affect performance?

The button is MADE from robust plastic, ensuring durability and resistance to impacts while maintaining a lightweight profile for easy integration into various applications.

How does the 22mm cutout diameter influence installation?

The standard 22mm cutout diameter makes this push button compatible with a wide range of existing panel mounts, facilitating straightforward installation in many control systems.

What are the practical advantages of its Compact size in industrial applications?

The Compact dimensions enable installation in tight spaces while still ensuring effective performance, making it suitable for diverse setups in various industrial environments.
