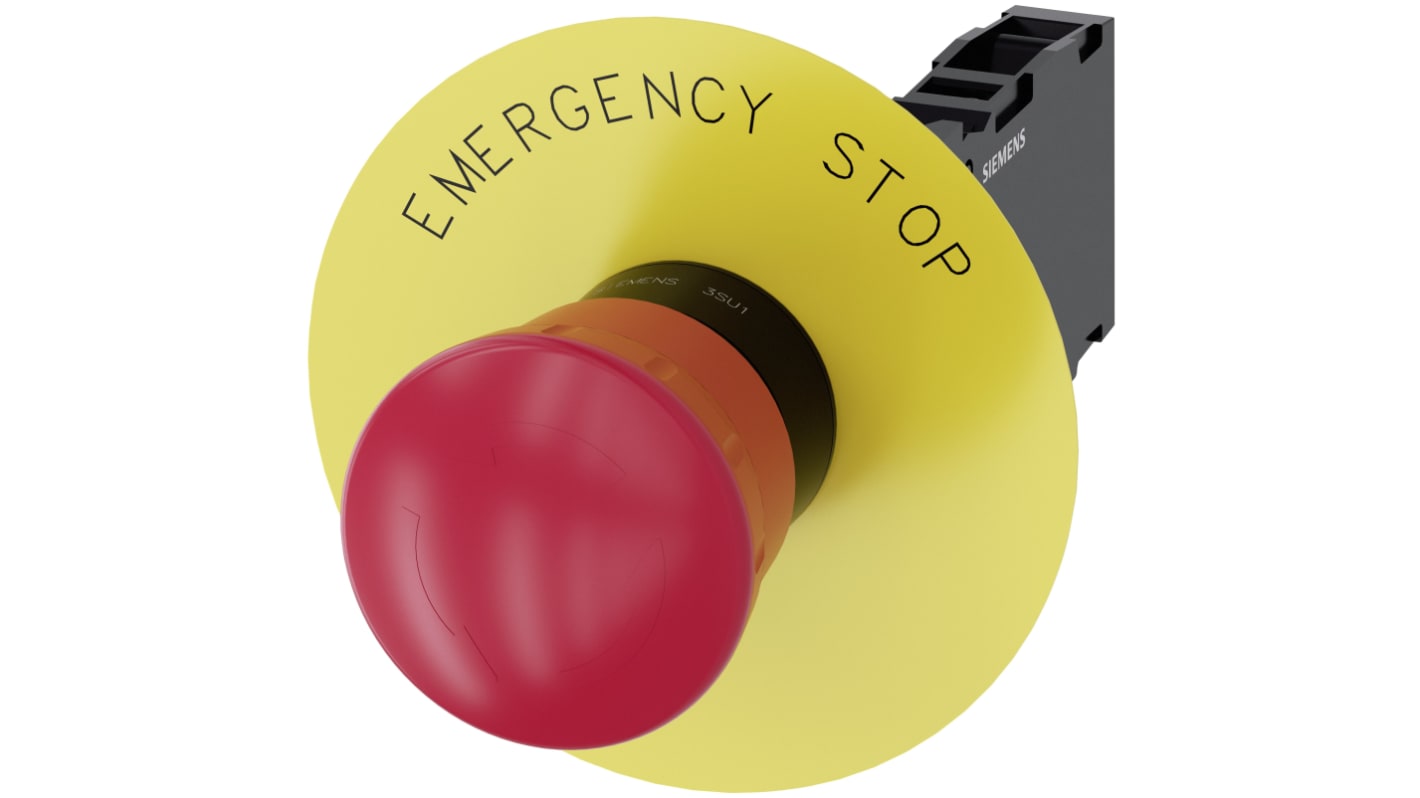

Siemens SIRIUS ACT 3SU11 Series Twist Release Emergency Stop Push Button, Panel Mount, 22 mm Cutout, SPDT, IP67, IP66,
- RS Stock No.:
- 180-9498
- Mfr. Part No.:
- 3SU1100-1HB20-1FG0
- Brand:
- Siemens
Subtotal (1 unit)*
£41.16
(exc. VAT)
£49.39
(inc. VAT)
FREE delivery for orders over £60.00
- Plus 3 unit(s) shipping from 27 April 2026
- Plus 27 unit(s) shipping from 27 April 2026
Units | Per unit |
|---|---|
| 1 + | £41.16 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 180-9498
- Mfr. Part No.:
- 3SU1100-1HB20-1FG0
- Brand:
- Siemens
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Panel Mount | |
| Cutout Diameter | 22mm | |
| Contact Configuration | SPDT | |
| Push Button Actuation | Twist Release | |
| Housing Material | Plastic | |
| Series | SIRIUS ACT 3SU11 | |
| Illuminated | No | |
| IP Rating | IP67, IP66, IP69, IP69K | |
| Colour | Red | |
| Terminal Type | Screw | |
| Contact AC Voltage | 500V ac | |
| Head Style | Mushroom | |
| Contact Current | 10A | |
| Contact DC Voltage | 500V dc | |
| Number of Auxiliary Contacts | 2 | |
| Depth | 117mm | |
| Switch Configuration | 1 NO/1 NC | |
| Standards/Approvals | IEC 60068-2-27, EN 61373, IEC 61508, IEC 61346-2, IEC 60721, EN ISO 13850 | |
| Hazardous Area Certification | NO | |
| Head Diameter | 40mm | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Low Carbon Manufacture | |
| Width | 75mm | |
| Safety Contacts | 1 NC | |
| Push Button Material | Plastic | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Emergency Stop Push Button | ||
Mount Type Panel Mount | ||
Cutout Diameter 22mm | ||
Contact Configuration SPDT | ||
Push Button Actuation Twist Release | ||
Housing Material Plastic | ||
Series SIRIUS ACT 3SU11 | ||
Illuminated No | ||
IP Rating IP67, IP66, IP69, IP69K | ||
Colour Red | ||
Terminal Type Screw | ||
Contact AC Voltage 500V ac | ||
Head Style Mushroom | ||
Contact Current 10A | ||
Contact DC Voltage 500V dc | ||
Number of Auxiliary Contacts 2 | ||
Depth 117mm | ||
Switch Configuration 1 NO/1 NC | ||
Standards/Approvals IEC 60068-2-27, EN 61373, IEC 61508, IEC 61346-2, IEC 60721, EN ISO 13850 | ||
Hazardous Area Certification NO | ||
Head Diameter 40mm | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Low Carbon Manufacture | ||
Width 75mm | ||
Safety Contacts 1 NC | ||
Push Button Material Plastic | ||
- COO (Country of Origin):
- DE
