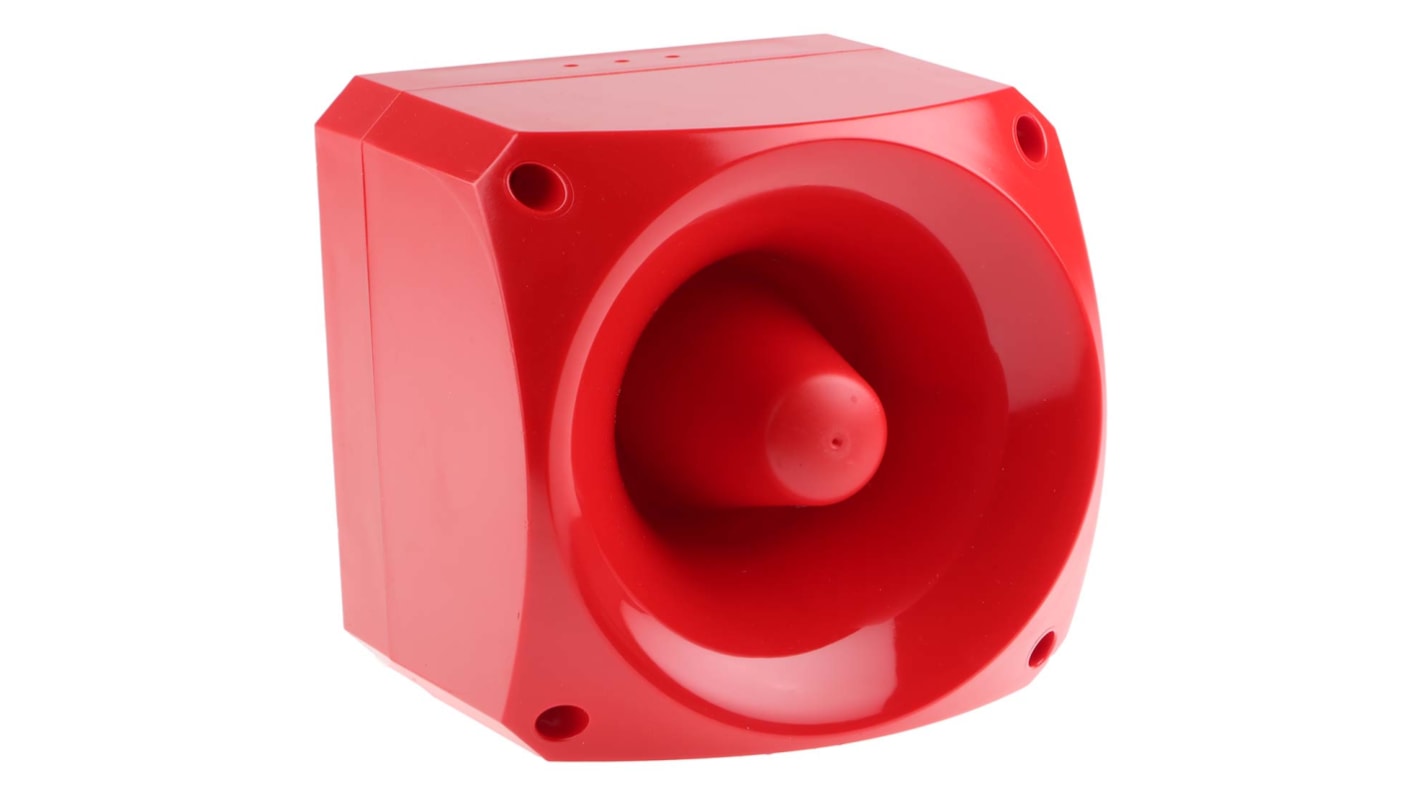

Klaxon Nexus 110 Series Base Mount Electronic Sounder, 24 → 48 V ac, 116dB at 1 m, IP66, DC, 64-Tone
- RS Stock No.:
- 907-6306
- Mfr. Part No.:
- PNS-0020
- Brand:
- Klaxon
4 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£119.80
(exc. VAT)
£143.76
(inc. VAT)
| Units | Per unit |
| 1 + | £119.80 |
- RS Stock No.:
- 907-6306
- Mfr. Part No.:
- PNS-0020
- Brand:
- Klaxon
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Klaxon Nexus Sounder
The Nexus sounder from Klaxon has 3 alarm stages, 64 tones and volume control for greater flexibility. Initial wiring connections are made to the base and the head is fixed with quarter turn fasteners to provide fast and reliable installation. It has IP66 protection as standard meaning it can be installed in almost any location.
Features and Benefits
3 alarm stages
First-fix, wire to base technology
IP66 rated
Volume control for greater flexibility – 20 dB
64 tones
5 cable entries
UL V0 rated fire retardant red polycarbonate case
First-fix, wire to base technology
IP66 rated
Volume control for greater flexibility – 20 dB
64 tones
5 cable entries
UL V0 rated fire retardant red polycarbonate case
Applications
The Nexus high output sounder is designed for industrial applications such as conveyors, process control alarm, cranes, moving machinery and general signalling.
Standards
EN54.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 → 48 V ac |
| IP Rating | IP66 |
| Decibels at 1 Metre | 116dB |
| Current Type | DC |
| Number Of Tones | 64 |
| Housing Colour | Red |
| Mounting Style | Base Mount |
| Application Type | Sounder |
| Series | Nexus 110 |
| Base Length | 166.3mm |
| Base Width | 166.3mm |
| Housing Material | Polycarbonate |
| Minimum Temperature | -10°C |
| Tone Type | Alarm |
| Special Features | First-Fix, Low Voltage Option, Wire to Base Technology |
| Maximum Temperature | +55°C |
