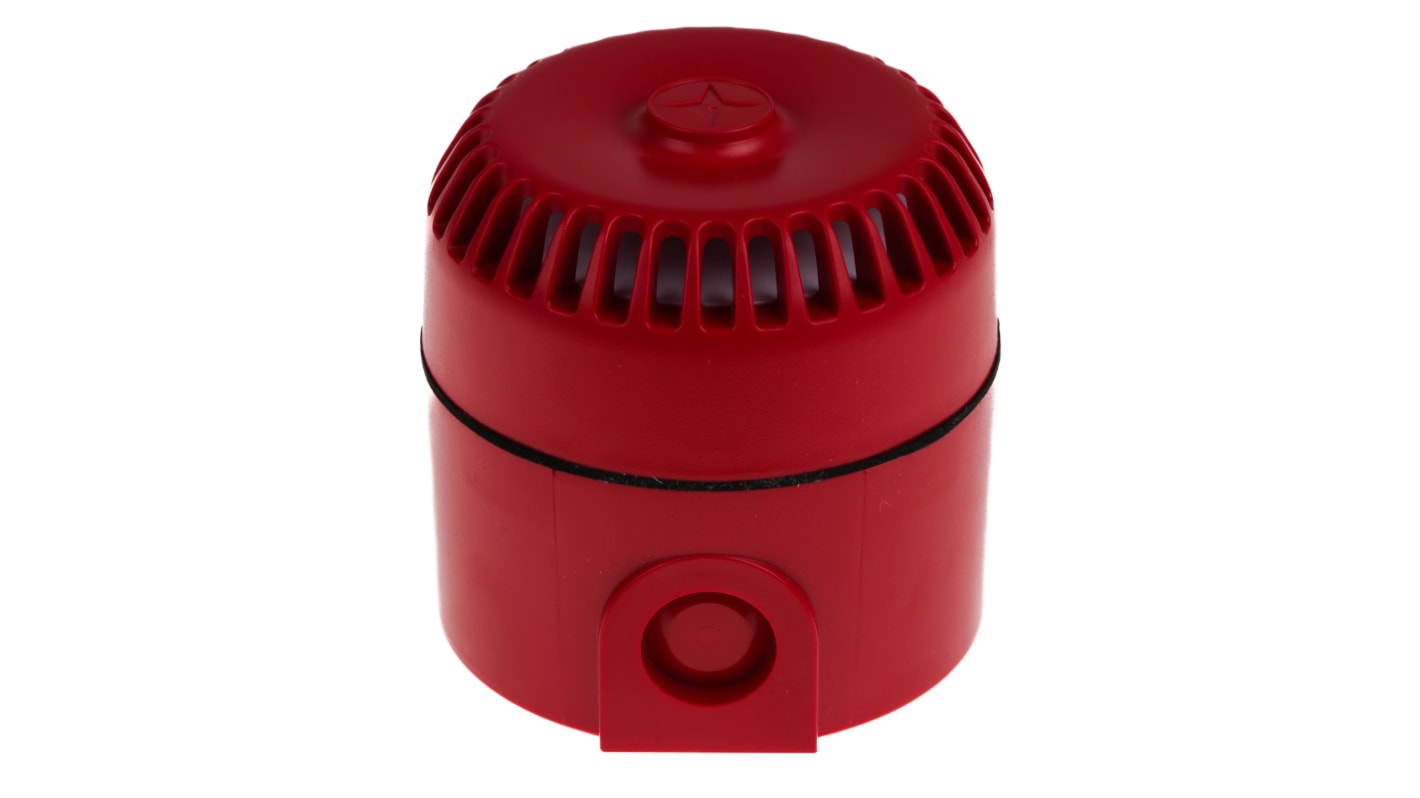

Eaton Surface Mount Electronic Sounder, 9 → 15 V dc, 18 → 28 V dc, 102dB at 1 m, IP65, DC, 32-Tone
- RS Stock No.:
- 686-7887
- Distrelec Article No.:
- 304-00-858
- Mfr. Part No.:
- 4990047FULL-0457X
- Brand:
- Eaton
Subtotal (1 unit)*
£42.18
(exc. VAT)
£50.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 67 unit(s) ready to ship
- Plus 56 unit(s) ready to ship from another location
- Plus 60 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £42.18 |
*price indicative
- RS Stock No.:
- 686-7887
- Distrelec Article No.:
- 304-00-858
- Mfr. Part No.:
- 4990047FULL-0457X
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Supply Voltage | 9 → 15 V dc, 18 → 28 V dc | |
IP Rating | IP65 | |
Decibels at 1 Metre | 102dB | |
Current Type | DC | |
Number Of Tones | 32 | |
Housing Colour | Red | |
Mounting Style | Surface Mount | |
Diameter | 93 mm | |
Application Type | Sounder | |
Maximum Temperature | +70°C | |
Housing Material | ABS | |
Special Features | EN54-3 | |
Minimum Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Eaton | ||
Supply Voltage 9 → 15 V dc, 18 → 28 V dc | ||
IP Rating IP65 | ||
Decibels at 1 Metre 102dB | ||
Current Type DC | ||
Number Of Tones 32 | ||
Housing Colour Red | ||
Mounting Style Surface Mount | ||
Diameter 93 mm | ||
Application Type Sounder | ||
Maximum Temperature +70°C | ||
Housing Material ABS | ||
Special Features EN54-3 | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- GB
Eaton Electronic Sounder, 12mA DC Current, 32 Tones - ROLP/R/D/Mains Base
Raise the alarm and draw attention to fire or hazards in your workplace with this two-stage electronic sounder from Eaton. It automatically synchronises to your system to immediately sound the second there's an issue. Thanks to its loud 102db output, which is roughly equivalent to the sound of a train, this component will alert workers throughout your facility, enabling speedy evacuation. As there are 32 tones to choose from, you can customise your emergency strategy to suit your environment.
• Wide operating temperature range between -25°C and +70°C for use in harsh settings
• IP65 rating indicates it's dust-tight and water-resistant, so it can handle demanding conditions
• ABS housing is resistant to electricity and chemicals, for a long service life in contaminated environments
• Light 250g weight doesn't add unnecessary load to your setup
• IP65 rating indicates it's dust-tight and water-resistant, so it can handle demanding conditions
• ABS housing is resistant to electricity and chemicals, for a long service life in contaminated environments
• Light 250g weight doesn't add unnecessary load to your setup
What else can I use this sounder for?
In addition to using this versatile device as a fire alarm, you can also integrate it into your security or signalling and processing systems.
Can I adjust the volume output?
Yes. By adding a potentiometer (620-6096), you can adjust this alarm's volume by 10db increments.
Note
Eaton formerly known as Fulleon
