Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- AT
Product Details

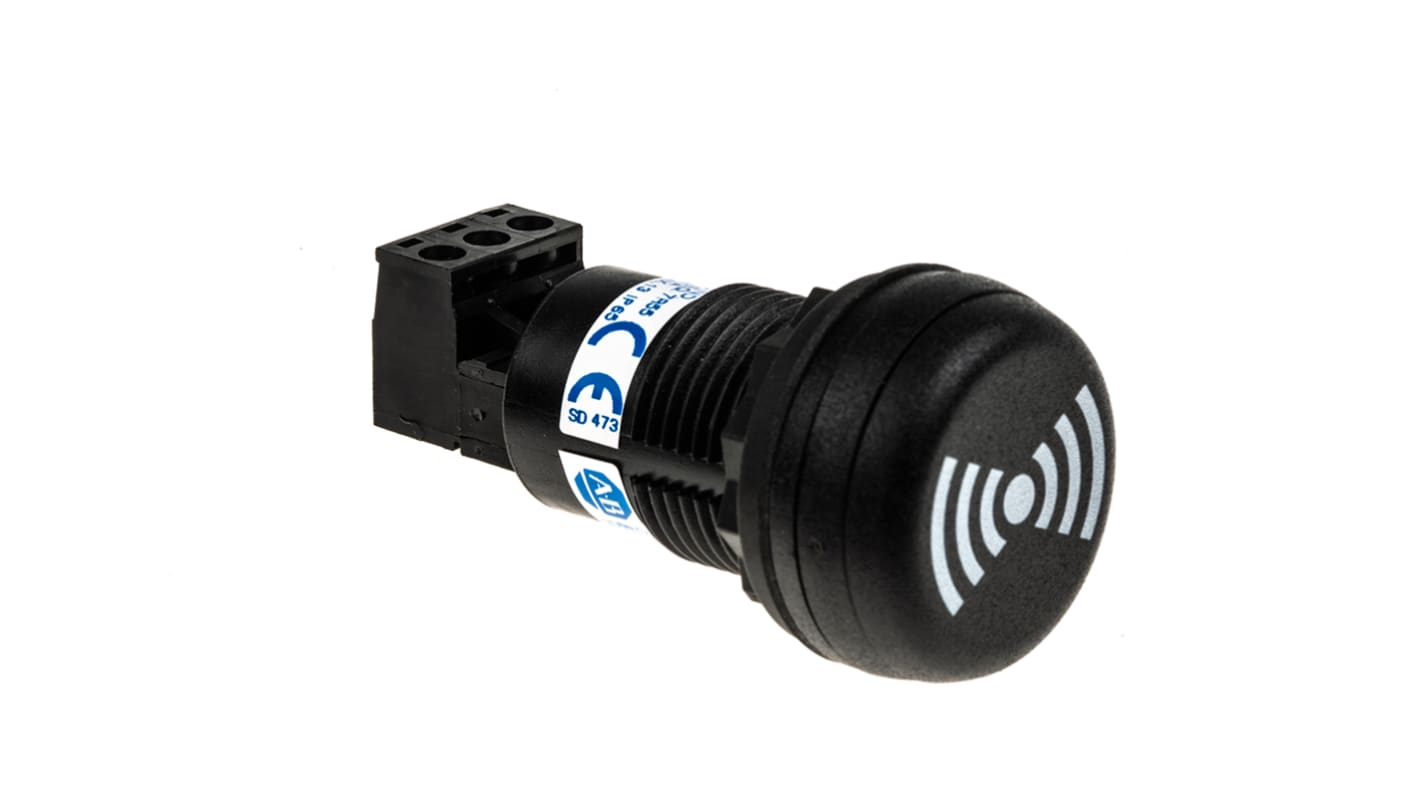

Allen Bradley Siren, 12 to 24V AC/DC, 80dB at 1m - 855P-B30SE22
This siren alarm from Rockwell Automation's Allen Bradley range emits a continuous or pulsing alarm sound of up to 80dB (decibels), making it a reliably audible warning signal. The black plastic enclosure has a diameter of just 30mm, so it's compact enough to be mounted onto a tight panel setup via a standard 22.5mm hole. It has tin-plated brass terminals to ensure resistance to corrosion and reliable conductivity, meaning you can be sure it will provide long-lasting and robust performance.
Features and Benefits
• Wide operating temperature range of -25°C to +60°C for use in a variety of tough conditions
• Supply voltage of 12 to 24V AC/DC enables use with a range of power supplies
• Supply voltage of 12 to 24V AC/DC enables use with a range of power supplies
Standards and Certifications
• ANSI/ESD S20.20:2014 (American National Standards Institute)
• BS EN 61340-5-1:2007 (British Standard)
• BS EN 61340-5-1:2007 (British Standard)
Is this siren suitable for use in harsh industrial environments?
IP2X rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
The siren has an IP65 (ingress protection) rating, so it's dust-proof and able to withstand low-pressure jets of water. The contacts are also rated to UL (Underwriters' Laboratories) 4/4X and 13 for protection against solid objects and fluids.
Specifications
Attribute | Value |
---|---|
Supply Voltage | 12 → 24 V ac/dc |
IP Rating | IP65 |
Decibels at 1 Metre | 80dB |
Current Type | AC, DC |
Housing Colour | Black |
Mounting Style | Panel Mount |
Diameter | 30 mm |
Application Type | Buzzer |
Series | 855P |
Minimum Temperature | -25°C |
Tone Type | Continuous, Pulse |
Housing Material | Polycarbonate |
Base Width | 31mm |
Maximum Temperature | +60°C |
