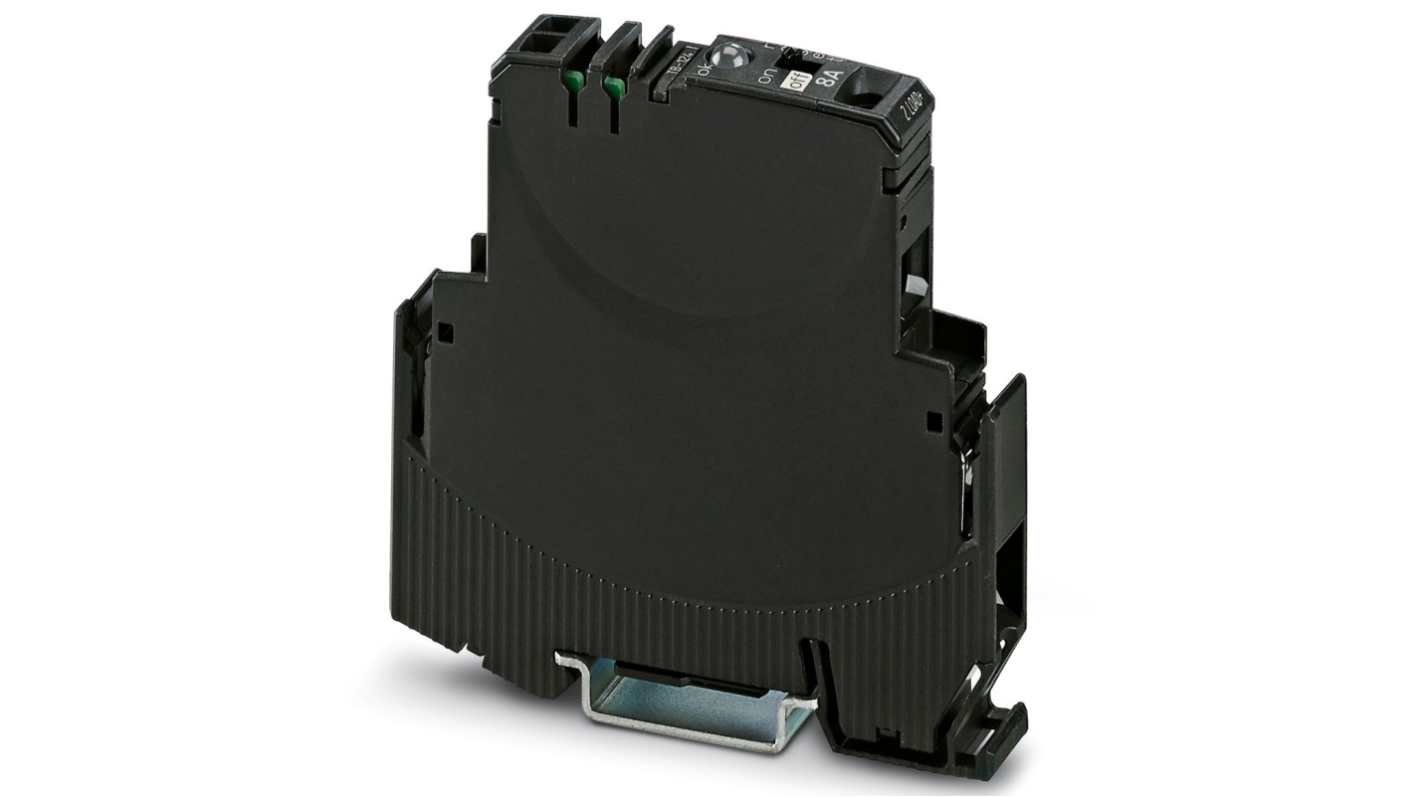

Phoenix Contact EC-E4 EC-E4 Electronic Circuit Breaker 8 A 24 V, 1 channels, DIN Rail
- RS Stock No.:
- 801-6952
- Mfr. Part No.:
- 0903037
- Brand:
- Phoenix Contact
Subtotal (1 pack of 6 units)*
£651.75
(exc. VAT)
£782.10
(inc. VAT)
Add 6 units to get free delivery
Stocked by manufacturer
- Ready to ship from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 6 + | £108.625 | £651.75 |
*price indicative
- RS Stock No.:
- 801-6952
- Mfr. Part No.:
- 0903037
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Range | EC-E4 | |
| Product Type | Electronic Circuit Breaker | |
| Series | EC-E4 | |
| Number of Channels | 1 | |
| Current Rating | 8 A | |
| Voltage | 24 V | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Length | 80mm | |
| Width | 12.5 mm | |
| Depth | 52mm | |
| Standards/Approvals | UL, RoHS, EN 61000-6-3, cULus, cUL | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Range EC-E4 | ||
Product Type Electronic Circuit Breaker | ||
Series EC-E4 | ||
Number of Channels 1 | ||
Current Rating 8 A | ||
Voltage 24 V | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Length 80mm | ||
Width 12.5 mm | ||
Depth 52mm | ||
Standards/Approvals UL, RoHS, EN 61000-6-3, cULus, cUL | ||
- COO (Country of Origin):
- DE
EC Series - Phoenix Contact Circuit Breakers
EC series electronic device circuit breakers.
A combination of active electronic current limitation in the event of short circuit and overload shutdown ensures that the circuit breaker can respond to overloads faster than the switched-mode power supply unit
Selective protection of all 24V dc load circuits at switched-mode power supply units
The residual current is always limited to 1.3 - 1.8 times the nominal current
