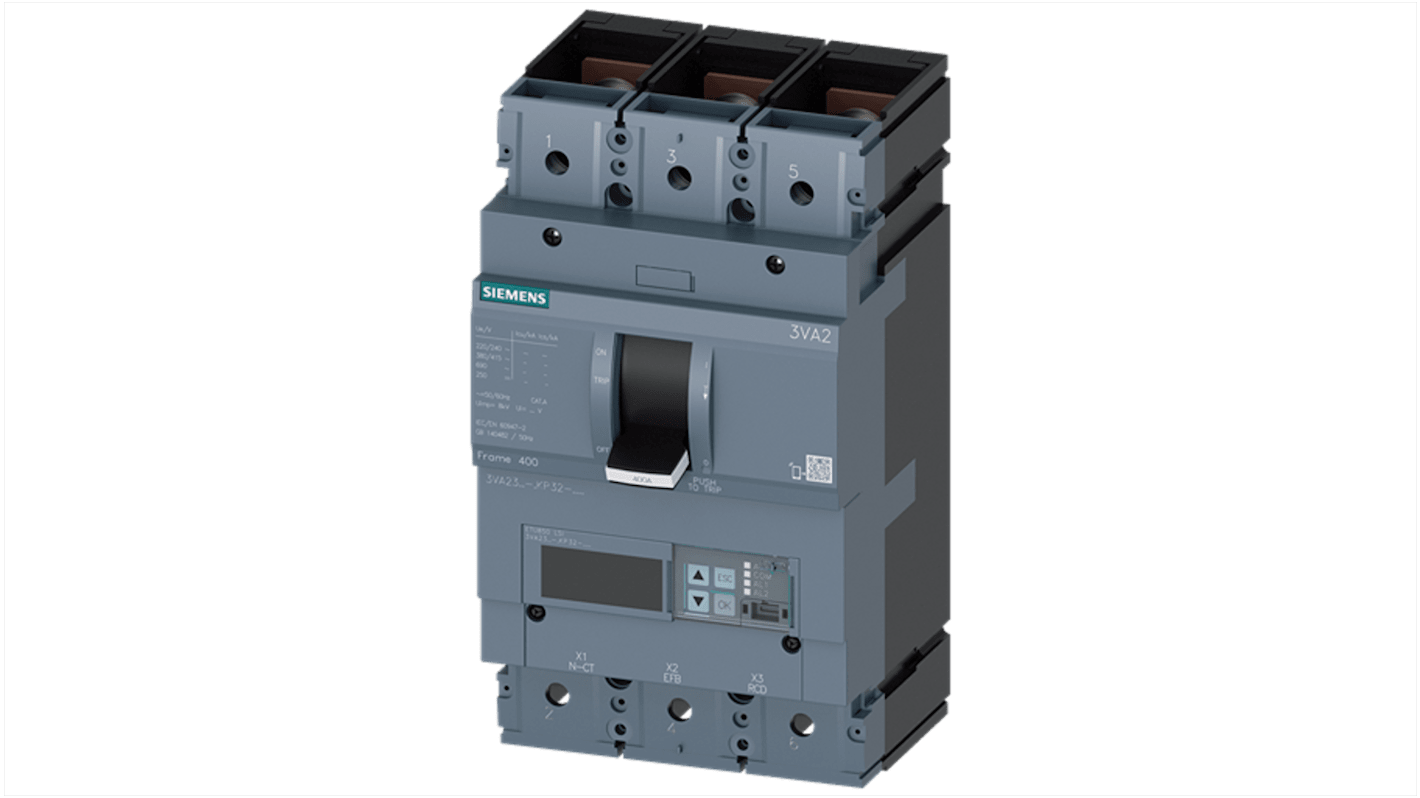

Siemens SENTRON 3VA Electronic Circuit Breaker 400 A 690 V, 3 channels Type L
- RS Stock No.:
- 156-716
- Mfr. Part No.:
- 3VA2340-8KP32-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£2,211.24
(exc. VAT)
£2,653.49
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,211.24 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 156-716
- Mfr. Part No.:
- 3VA2340-8KP32-0AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Range | SENTRON | |
| Product Type | Electronic Circuit Breaker | |
| Series | 3VA | |
| Number of Channels | 3 | |
| Current Rating | 400 A | |
| Voltage | 690 V | |
| Breaking Capacity | 25kA | |
| Tripping Characteristics | Type L | |
| Length | 110mm | |
| Terminal Type | Front | |
| Width | 138 mm | |
| Depth | 248mm | |
| Standards/Approvals | RCM, EAC, CE, CCC, UKCA | |
| Better World Product | Yes | |
| Better World Claim | Concentrated or Compact Solution, Extended Product Life | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Range SENTRON | ||
Product Type Electronic Circuit Breaker | ||
Series 3VA | ||
Number of Channels 3 | ||
Current Rating 400 A | ||
Voltage 690 V | ||
Breaking Capacity 25kA | ||
Tripping Characteristics Type L | ||
Length 110mm | ||
Terminal Type Front | ||
Width 138 mm | ||
Depth 248mm | ||
Standards/Approvals RCM, EAC, CE, CCC, UKCA | ||
Better World Product Yes | ||
Better World Claim Concentrated or Compact Solution, Extended Product Life | ||
- COO (Country of Origin):
- CZ
The Siemens molded case circuit breaker from is designed to deliver uncompromising line protection, integrating advanced features to ensure reliability and performance. Its robust construction and innovative ETU850 release offer superior overload and short-circuit protection tailored for rigorous applications. With a maximum breaking capacity of 150 kA at 415 V, it ensures safety under fault conditions, while its insulation voltage rated up to 800 V enhances operational integrity.
Built to withstand a wide temperature range for versatile use
Complies with IEC 60947 standards for guaranteed quality
Compact design simplifies integration into existing systems
IP40 front protection contributes to environmental safety
