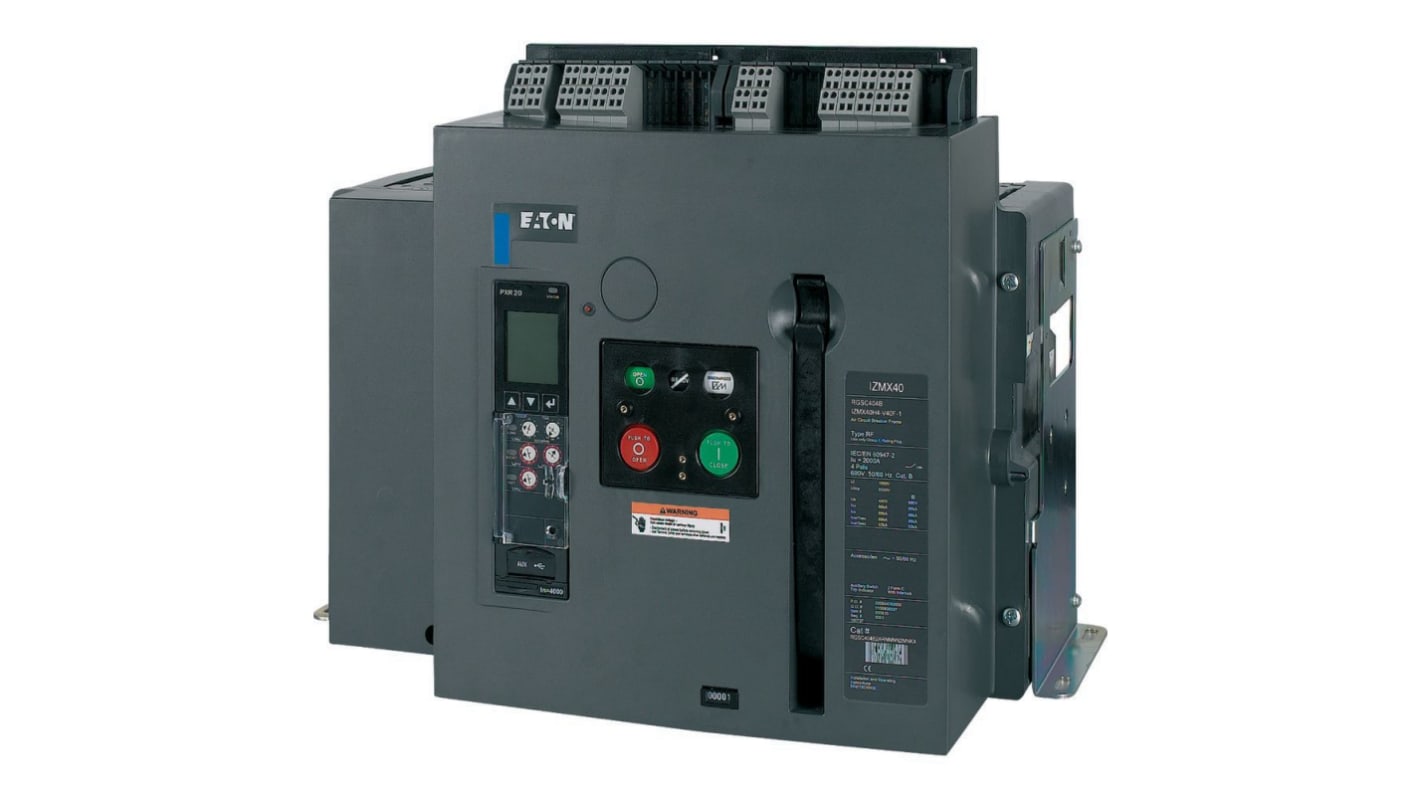

Eaton IZMX/INX Electronic Circuit Breaker 4000 A 690 V, Fixed
- RS Stock No.:
- 132-896
- Mfr. Part No.:
- 183762 IZMX40B4-P40F-1
- Brand:
- Eaton
Subtotal (1 unit)*
£32,518.41
(exc. VAT)
£39,022.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32,518.41 |
*price indicative
- RS Stock No.:
- 132-896
- Mfr. Part No.:
- 183762 IZMX40B4-P40F-1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Electronic Circuit Breaker | |
| Range | IZMX/INX | |
| Series | Eaton Moeller | |
| Current Rating | 4000 A | |
| Voltage | 690 V | |
| Breaking Capacity | 66kA | |
| Mount Type | Fixed | |
| Length | 584mm | |
| Width | 521 mm | |
| Depth | 597mm | |
| Standards/Approvals | RoHS, IEC/EN 60947, IEC | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Electronic Circuit Breaker | ||
Range IZMX/INX | ||
Series Eaton Moeller | ||
Current Rating 4000 A | ||
Voltage 690 V | ||
Breaking Capacity 66kA | ||
Mount Type Fixed | ||
Length 584mm | ||
Width 521 mm | ||
Depth 597mm | ||
Standards/Approvals RoHS, IEC/EN 60947, IEC | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
The Eaton Circuit Breaker is a 4 pole circuit breaker with a high amperage rating of 4000A and a short circuit breaking capacity of 66 kA. It has a fixed design and is suitable for industrial applications. With its electronic release system and complete device with protection unit, it ensures reliable circuit protection. The circuit breaker also features special features such as terminal capacity hint, graphic LCD display, integrated test possibility, and integrated system monitor.
Electronic release system for reliable operation
Complete device with protection unit for comprehensive circuit protection
Suitable for communication and zone selectivity for versatile installations
