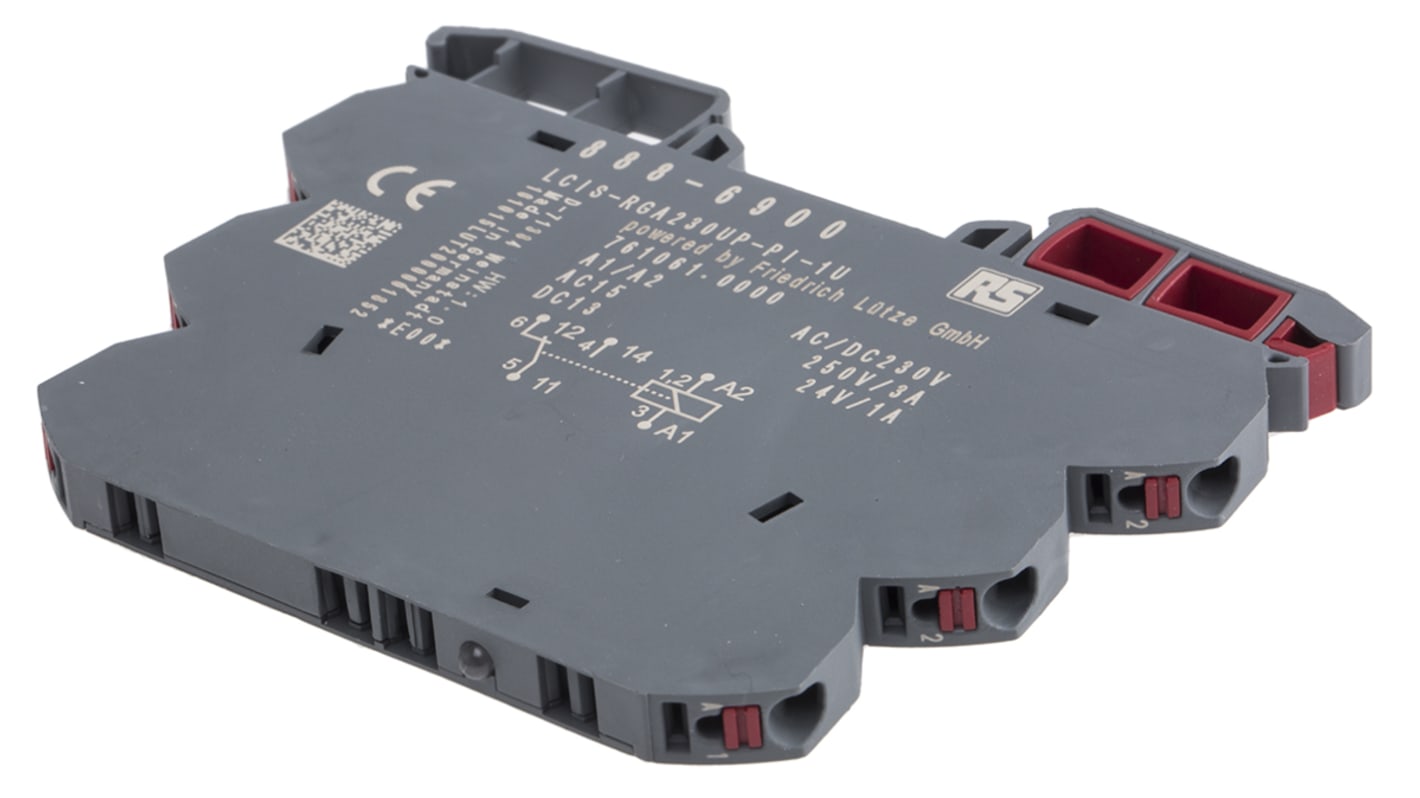

RS PRO 76XX Series Interface Relay, DIN Rail, 230V ac/dc Coil, SPDT
- RS Stock No.:
- 888-6900
- Brand:
- RS PRO
Subtotal (1 pack of 5 units)*
£65.51
(exc. VAT)
£78.61
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £13.102 | £65.51 |
*price indicative
- RS Stock No.:
- 888-6900
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Interface Relay | |
| Coil Voltage | 230V ac/dc | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | 76XX | |
| Terminal Type | Push-in | |
| Switching Current | 6A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -25°C | |
| Switching DC Voltage | 250V dc | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 60°C | |
| Height | 93mm | |
| Length | 6.2mm | |
| Width | 73mm | |
| Standards/Approvals | UL, CSA, GL | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Interface Relay | ||
Coil Voltage 230V ac/dc | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series 76XX | ||
Terminal Type Push-in | ||
Switching Current 6A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -25°C | ||
Switching DC Voltage 250V dc | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 60°C | ||
Height 93mm | ||
Length 6.2mm | ||
Width 73mm | ||
Standards/Approvals UL, CSA, GL | ||
Push In Relays 6.2mm
The LCIS system interface push in relay modules, cannot only switch and isolate they can also peform other requirements such as measuring, controlling, regulating, multiplying and amplifying. Simplified installation options via insulated bridges in various pin configurations which reduce wiring time. All LCIS interface relays can be used in distribution boxes.
Selection of connections via universal connection technology with push in or screw connection
Every push in relay has inspection openings with a diameter of 2 mm guaranteeing secure signal tracking
Relays can be labelled up to a maximum of 24 characters
Reduced wiring time
Low construction depth of 71 mm
Operating temperatures of -25°C to +60°C
LED Indicator
Approvals
UL, CSA, GL
