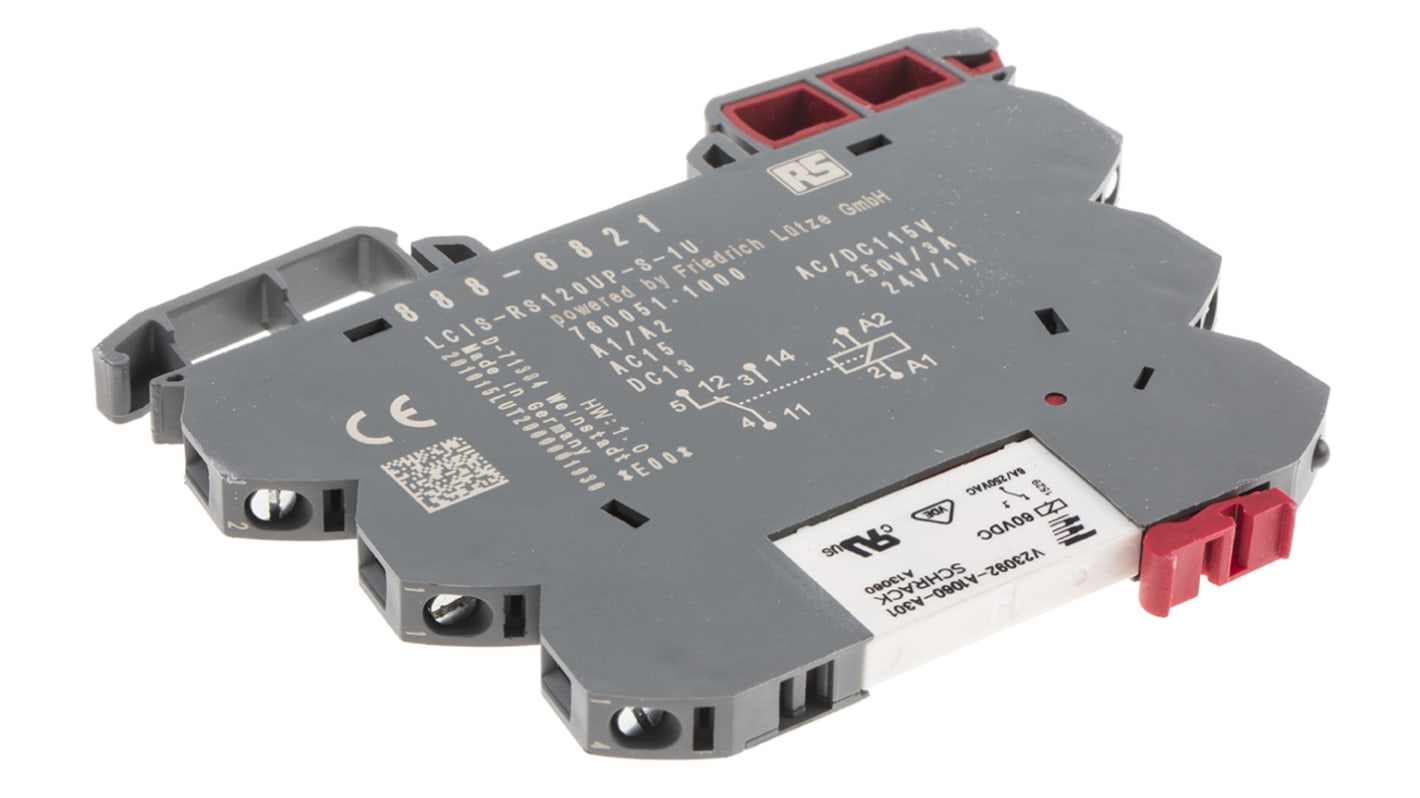

RS PRO Interface Relay, DIN Rail Mount, 115V ac/dc Coil, SPDT, 1-Pole

View this category
Bulk discount available

Subtotal (1 pack of 5 units)*

£59.65

(exc. VAT)

£71.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 90 unit(s) ready to ship
  • Plus 999,999,905 unit(s) shipping from 24 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£11.93£59.65
25 - 45£11.572£57.86
50 +£11.07£55.35

*price indicative

RS Stock No.:
888-6821
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Coil Voltage

115V ac/dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Series

LCIS

Number of Poles

1

Minimum Input Voltage

92V

Maximum Input Voltage

126.5V

Terminal Type

Screw

Switching Voltage

17 → 250V

Depth

76mm

Height

93mm

Length

6.2mm

Contact Material

Silver Alloy

Input Current

5mA

Turn Off Time

13ms

Relay Switching Classification

General Purpose Relay

Operating Temperature Range

-25 → +60°C

Standards Met

CSA, GL, UL

Life

>50000000 (Mechanical) operations

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-25°C

Dimensions

6.2 x 76 x 93mm

Input Voltage Range

92 → 126.5V

Turn On Time

8ms

COO (Country of Origin):
DE

RS PRO Interface Relay Modules


Experience RS PRO Interface Relay Modules. Designed for switching, isolating, measuring, controlling, regulating, multiplying, and amplifying, these modules provide the ideal solution for all your automation requirements. Simplified installation options, featuring insulated bridges in various pin configurations, significantly reduce wiring time and complexity.
Applications include distribution boxes, RS PRO Interface Relay Modules deliver exceptional performance and efficiency, making them the perfect choice for any industrial application.

Features and Benefits


  • Selection of connections via universal connection technology with push in or screw connection

  • Every push in connections has inspection openings with a diameter of 2 mm guaranteeing secure signal tracking.

  • Relays can be labelled up to a maximum of 24 characters

  • Reduced wiring time

  • Low construction depth of 73 mm to 76 mm

  • Suitable for temperatures of -40°C to +85°C

Approvals


UL, CSA, GL

Applications


  • Relay & Signal Conditioning
