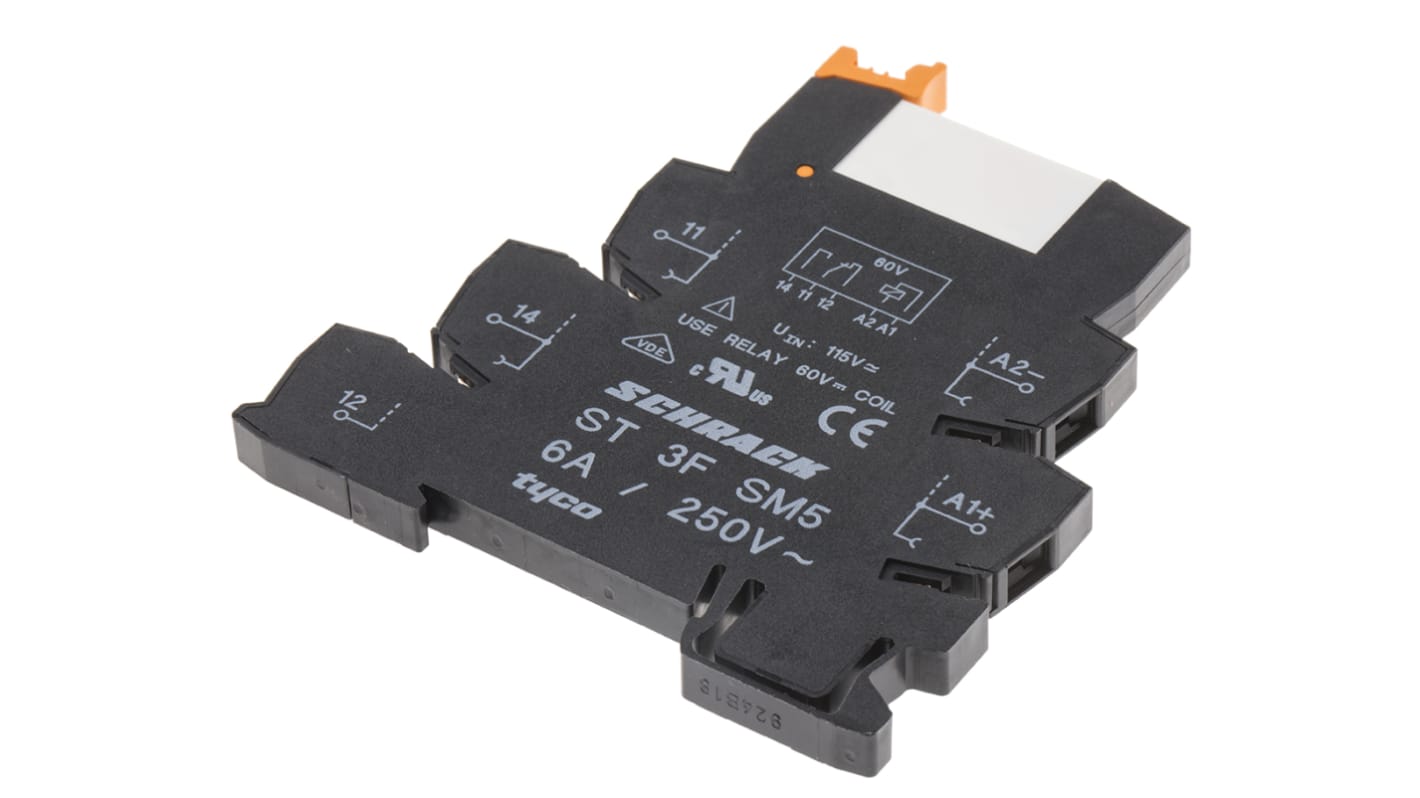

TE Connectivity SNR Series Interface Relay, DIN Rail, 115 V ac Coil, SPDT
- RS Stock No.:
- 511-4031
- Mfr. Part No.:
- ST3P3SM5 3-1416100-3
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£25.26
(exc. VAT)
£30.31
(inc. VAT)
- RS Stock No.:
- 511-4031
- Mfr. Part No.:
- ST3P3SM5 3-1416100-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 115 V ac | |
| Product Type | Interface Relay | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | SNR | |
| Terminal Type | Screw | |
| Switching Current | 6 A | |
| Switching AC Voltage | 240 V ac | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 55°C | |
| Length | 80mm | |
| Width | 6.2 mm | |
| Standards/Approvals | REACH, RoHS | |
| Height | 94mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 115 V ac | ||
Product Type Interface Relay | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series SNR | ||
Terminal Type Screw | ||
Switching Current 6 A | ||
Switching AC Voltage 240 V ac | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 55°C | ||
Length 80mm | ||
Width 6.2 mm | ||
Standards/Approvals REACH, RoHS | ||
Height 94mm | ||
- COO (Country of Origin):
- CZ
SNR Interface Relay Package
Slim line package consisting of DIN rail socket and Relay
Module width 6.2mm for increased packing density on the DIN rail
4kV coil-contact
DIN sockets available with choice of Screw or Cage Clamp Terminals
DC versions have LED, Protection and Polarity diodes
AC versions have LED and Protection circuit
Approvals
VDE
