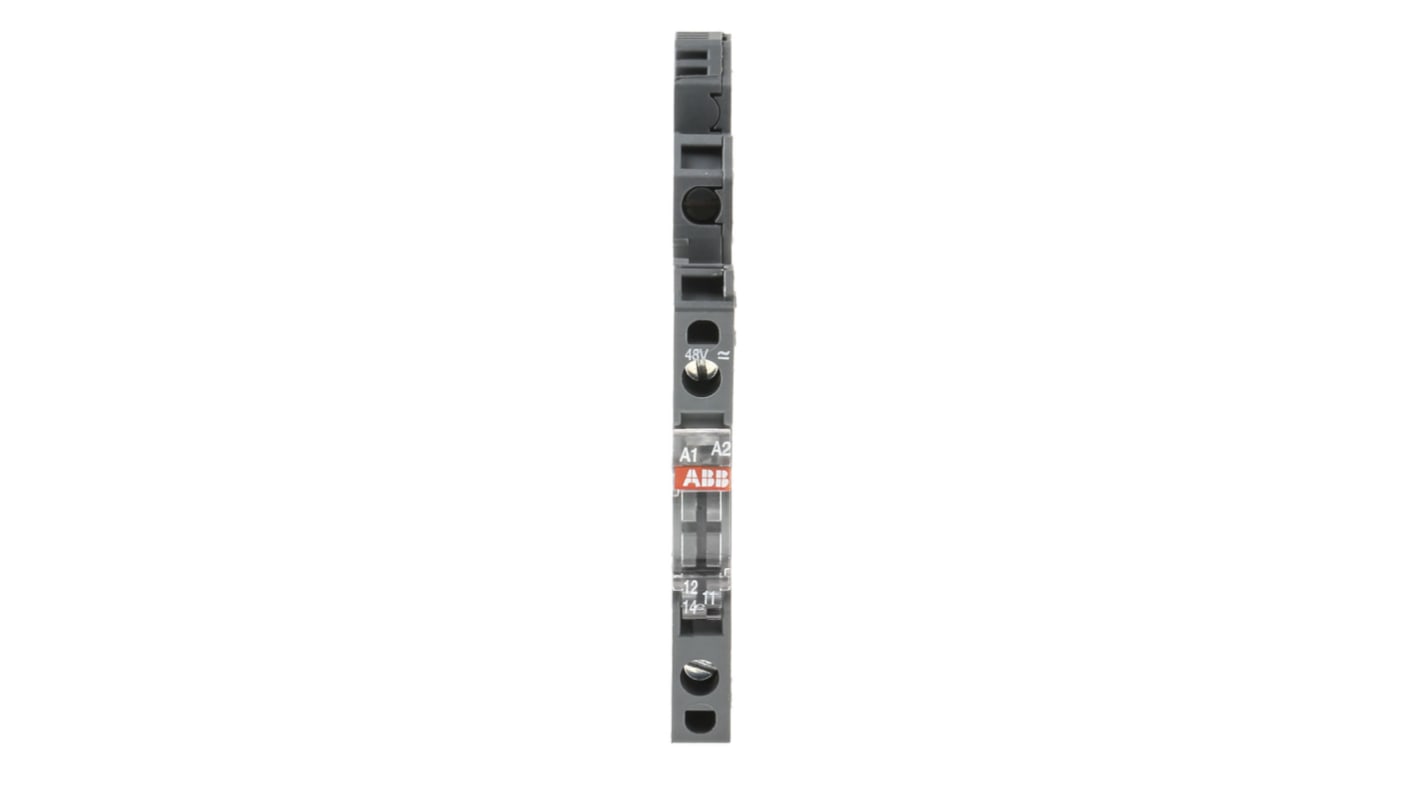

ABB R600 Series Interface Relay, DIN Rail Mount, 48V ac/dc Coil, SPDT, 6A Load
- RS Stock No.:
- 669-9984
- Mfr. Part No.:
- 1SNA645002R0400 RB121-48-60VUC
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£16.65
(exc. VAT)
£19.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 33 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.65 |
5 - 9 | £15.82 |
10 - 24 | £14.99 |
25 - 49 | £14.16 |
50 + | £13.32 |
*price indicative
- RS Stock No.:
- 669-9984
- Mfr. Part No.:
- 1SNA645002R0400 RB121-48-60VUC
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Coil Voltage | 48V ac/dc | |
Contact Configuration | SPDT | |
Mounting Type | DIN Rail | |
Series | R600 | |
Load Current Rating | 6A | |
Maximum Input Voltage | 250V ac | |
Terminal Type | Screw | |
Switching Voltage | 5 V → 250V ac | |
Depth | 6mm | |
Height | 75mm | |
Length | 70mm | |
Input Current | 7 mA, 9mA | |
Operating Temperature Range | -20 → +70°C | |
Turn On Time | 5ms | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -20°C | |
Standards Met | UL | |
Relay Switching Classification | AC/DC Switching Relay | |
Relay Type | Interface Relay | |
Accessory Type | Interface Relay | |
Dimensions | 70 x 6 x 75mm | |
Turn Off Time | 8ms | |
Select all | ||
---|---|---|
Brand ABB | ||
Coil Voltage 48V ac/dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Series R600 | ||
Load Current Rating 6A | ||
Maximum Input Voltage 250V ac | ||
Terminal Type Screw | ||
Switching Voltage 5 V → 250V ac | ||
Depth 6mm | ||
Height 75mm | ||
Length 70mm | ||
Input Current 7 mA, 9mA | ||
Operating Temperature Range -20 → +70°C | ||
Turn On Time 5ms | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Standards Met UL | ||
Relay Switching Classification AC/DC Switching Relay | ||
Relay Type Interface Relay | ||
Accessory Type Interface Relay | ||
Dimensions 70 x 6 x 75mm | ||
Turn Off Time 8ms | ||
- COO (Country of Origin):
- TN
ABB Interface Relay, Screw Terminal Connection, SPDT Contact Configuration - R600 Series - 1SNA645002R0400
For snappy signalling in your control network, go with this boxed interface relay from ABB. Its galvanic isolation cuts crosstalk between the input and output channels for efficient transmission. When supplied with 48 to 60V AC/DC, the unit opens or closes a connected circuit in a broad voltage range from 5 to 250V AC. As it draws just 7mA, you can rest assured it saves energy. This hardy product withstands temperatures from -40°C to +80°C, so it's the ideal choice for harsh work areas.
Features & Benefits
• Snaps onto a DIN rail for a simple and speedy setup
• Integrated LED makes for hassle-free power monitoring
• Weighs just 20g so it adds little strain to your system
• IP20 rating means it's touchproof and shielded from tools larger than 12mm for safe maintenance
• Mechanical lifespan of 10 million operations shows it's highly reliable
• Integrated LED makes for hassle-free power monitoring
• Weighs just 20g so it adds little strain to your system
• IP20 rating means it's touchproof and shielded from tools larger than 12mm for safe maintenance
• Mechanical lifespan of 10 million operations shows it's highly reliable
Applications
• Panel building
• Machine manufacturing
• Office equipment
• Machine manufacturing
• Office equipment
What size is this relay?
It measures 70 (L) x 6 (W) x 67.5mm (H), so it's a slim product that helps you make the most of rail space.
Can this unit withstand voltage surges?
Yes. It's tested up to 4kV for protection against sudden voltage surges.
