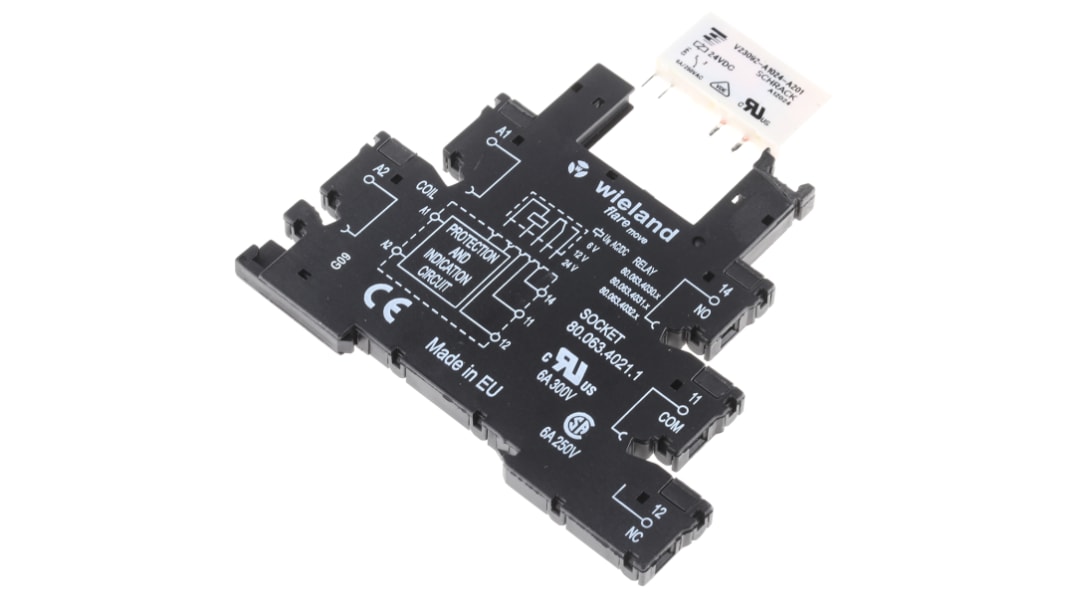

Wieland flare Series Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole

View this category
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
469-4255
Mfr. Part No.:
80.010.4522.1
Brand:
Wieland
Find similar products by selecting one or more attributes.
Select all

Brand

Wieland

Coil Voltage

24V ac/dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Series

flare

Number of Poles

1

Minimum Input Voltage

18V dc

Maximum Input Voltage

28.8V dc

Terminal Type

Screw

Depth

6.2mm

Height

88mm

Length

76mm

Contact Material

Gold Plated

Input Current

12mA

Turn Off Time

11ms

Turn On Time

7ms

Input Voltage Range

18 → 28.8V ac/dc

Maximum Operating Temperature

+55°C

Minimum Operating Temperature

-40°C

Standards Met

CSA, UL

Dimensions

76 x 6.2 x 88mm

Relay Switching Classification

Interface Relay Module

Operating Temperature Range

-40 → +55°C

COO (Country of Origin):
DE

Relay Module Plug-In MOVE


DIN rail mounting and only 6.2mm wide
Replaceable relay
Jumper comb
Status LED
Marking facility
Available as high load silver contacts '0' and Gold Flashed low current '1'

Approvals

UL and CSA

Relay Module Flare MOVE 24 V


From the Flare MOVE Series this standard relay module is both pluggable and compact and can be mounted on to a DIN rail for use in a number of industrial applications.

Features and Benefits


• Pluggable coupling relay
• Operating voltage 24 V AC/DC
• 1 change over contact 6A
• Rated voltage 250 V
• DIN rail mounting
• Relay module has a mounting width of 6.2 mm
• Wide operating temperature of between -40 to +55 °C
