Finder 38 Series Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole
- RS Stock No.:
- 386-4425
- Distrelec Article No.:
- 137-20-857
- Mfr. Part No.:
- 38.51.0.024.0060
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£20.95
(exc. VAT)
£25.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 207 unit(s) ready to ship
- Plus 42 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £20.95 |
5 - 9 | £20.29 |
10 + | £19.43 |
*price indicative
- RS Stock No.:
- 386-4425
- Distrelec Article No.:
- 137-20-857
- Mfr. Part No.:
- 38.51.0.024.0060
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V ac/dc | |
Contact Configuration | SPDT | |
Mounting Type | DIN Rail | |
Number of Poles | 1 | |
Series | 38 Series | |
Terminal Type | Screw | |
Depth | 75.6mm | |
Height | 87.9mm | |
Length | 6.2mm | |
Contact Material | Silver Alloy | |
Input Current | 12mA | |
Minimum Operating Temperature | -40°C | |
Dimensions | 6.2 x 75.6 x 87.9mm | |
Relay Type | Electro Mechanical | |
Maximum Operating Temperature | +70°C | |
Operating Temperature Range | -40 → +70°C | |
Turn On Time | 5ms | |
Turn Off Time | 6ms | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V ac/dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Number of Poles 1 | ||
Series 38 Series | ||
Terminal Type Screw | ||
Depth 75.6mm | ||
Height 87.9mm | ||
Length 6.2mm | ||
Contact Material Silver Alloy | ||
Input Current 12mA | ||
Minimum Operating Temperature -40°C | ||
Dimensions 6.2 x 75.6 x 87.9mm | ||
Relay Type Electro Mechanical | ||
Maximum Operating Temperature +70°C | ||
Operating Temperature Range -40 → +70°C | ||
Turn On Time 5ms | ||
Turn Off Time 6ms | ||
- COO (Country of Origin):
- IT

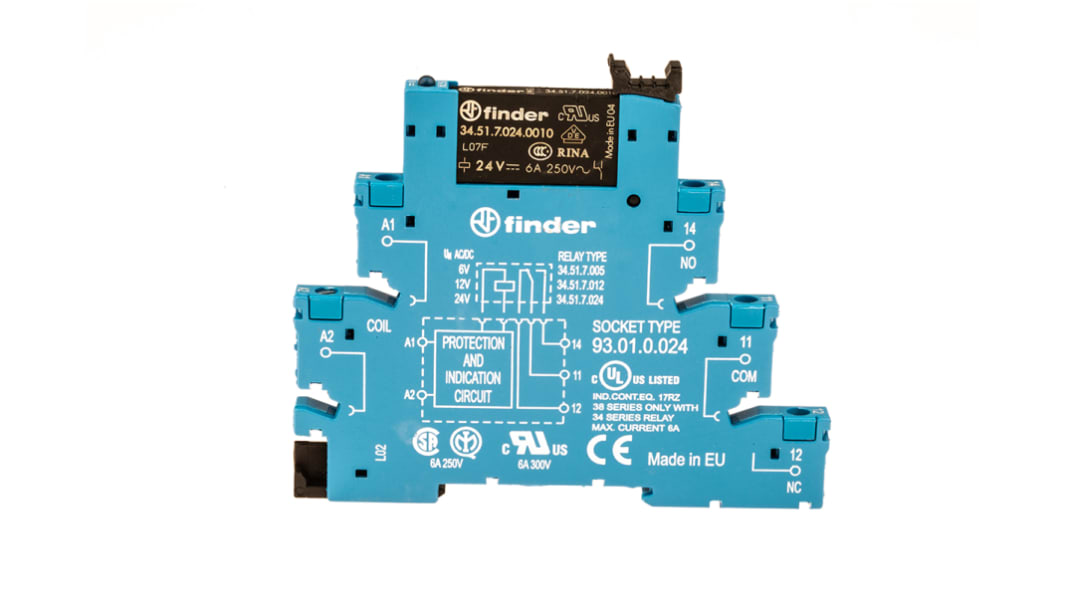

Finder Series 38 Interface Relay, 24V AC/DC Coil Voltage, SPDT Contact Configuration - 38.51.0.024.0060
This interface relay is intended for automation and control applications, offering a dependable solution for managing electrical loads. The 24V AC/DC relay features a single pole double throw (SPDT) configuration and is suitable for integration with various programmable logic controllers (PLCs) and electronic systems. It operates effectively across a wide temperature range, making it a noteworthy component in electrical control panels and similar equipment.
Features & Benefits
• Fast switching times of 5ms for activation and 6ms for deactivation
• Utilises silver alloy contacts for longevity and performance
• Designed for straightforward installation on a DIN rail, ensuring secure mounting
• Includes an integral coil indication and protection circuit for enhanced safety
• Features a plastic retaining clip for instant relay ejection, simplifying maintenance
• Utilises silver alloy contacts for longevity and performance
• Designed for straightforward installation on a DIN rail, ensuring secure mounting
• Includes an integral coil indication and protection circuit for enhanced safety
• Features a plastic retaining clip for instant relay ejection, simplifying maintenance
Applications
• Suitable for managing traffic light systems
• Used in vending and labelling machines
• Effective in control panels for bottling plants
• Integrates well with programmable controllers
• Supports management of electrical distribution panels
• Used in vending and labelling machines
• Effective in control panels for bottling plants
• Integrates well with programmable controllers
• Supports management of electrical distribution panels
How does the interface relay ensure safety in applications?
It incorporates an integral coil indication and protection circuit that helps to prevent overloading and circuit damage, promoting safe operation.
Can it be used in environments with high ambient temperatures?
Yes, it is designed to operate safely at temperatures up to +70°C, making it suitable for various environments.
What type of connections are available for this relay?
The relay is available with either screw or screwless terminals, providing flexible installation options based on user preferences.
How is maintenance of the relay simplified?
The relay features a plastic retaining clip, allowing for instant ejection for quick replacement and minimising downtime during maintenance.
What are the implications of using this relay in PLC applications?
This relay is specifically designed for integration with PLCs, enabling reliable control of electrical loads while ensuring timely operational actions within automation systems.
Approvals
CSA; UL; VDE
