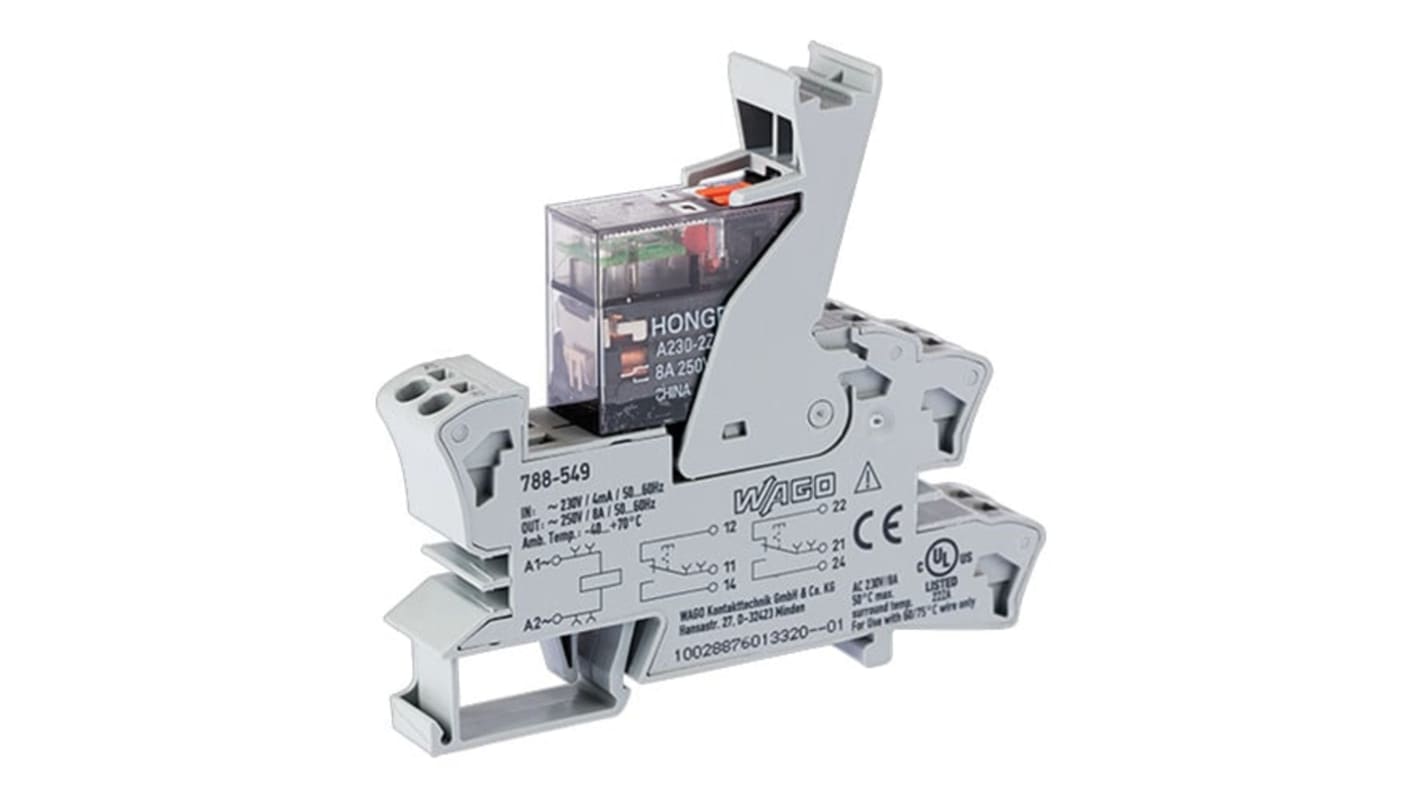

WAGO 788 Series Relay Module, DIN Rail, 230 V ac Coil, DPDT, 4 mA
- RS Stock No.:
- 279-4232
- Mfr. Part No.:
- 788-549
- Brand:
- WAGO
Subtotal (1 unit)*
£17.02
(exc. VAT)
£20.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.02 |
*price indicative
- RS Stock No.:
- 279-4232
- Mfr. Part No.:
- 788-549
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Relay Module | |
| Coil Voltage | 230 V ac | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | 788 | |
| Terminal Type | Push-in Cage Clamp | |
| Switching Current | 1.5 A | |
| Switching DC Voltage | 24 V dc | |
| Coil Current | 4 mA | |
| Switching AC Voltage | 250 V ac | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Nickel Alloy | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN 61010-2-201 | |
| Height | 86mm | |
| Width | 15 mm | |
| Length | 73mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Relay Module | ||
Coil Voltage 230 V ac | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series 788 | ||
Terminal Type Push-in Cage Clamp | ||
Switching Current 1.5 A | ||
Switching DC Voltage 24 V dc | ||
Coil Current 4 mA | ||
Switching AC Voltage 250 V ac | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Nickel Alloy | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN 61010-2-201 | ||
Height 86mm | ||
Width 15 mm | ||
Length 73mm | ||
- COO (Country of Origin):
- DE
The WAGO relay module features cage clamp connection technology and its contacts made from silver alloy.
Mounting type DIN-35 rail
RoHS compliant
